USED 2017 VECOPLAN VAZ 1300-M-XL

Manufacturer: Vecoplan
Make Year: Quote Year was 2017
System configuration: Two-stage stacked plastics size-reduction system
Primary shredder: VAZ 1300-M-XL
Secondary granulator: WO-1442
Intended material: Assorted rigid plastics scrap, up to the size of a standard 96-gallon cart
Proposed throughput: Up to 3,000 lb/hr; actual output depends on material and operating condition
Electrical: 460 V, 3-phase, 60 Hz.

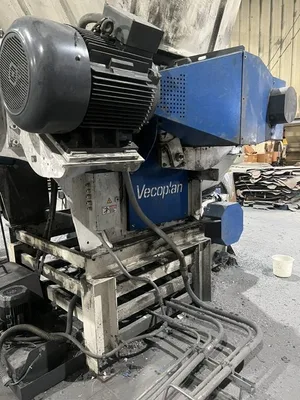

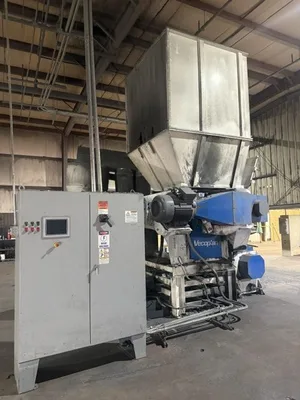

Primary Shredder — VAZ 1300-M-XL
Main drive: 100 HP with fluid clutch
Cutting chamber: 52″ W x 58″ L
Rotor: 20″ diameter x 52″ long

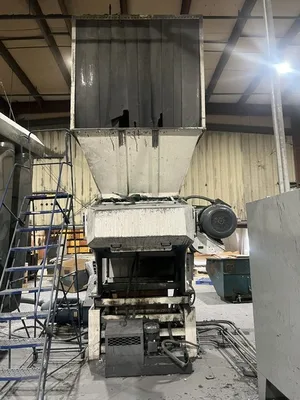

Infeed hopper opening: Up to 86″ x 80″, with customer-specific flared configuration
Rotor cutters: 90 D2 tool-steel cutters, triple-row arrangement, four-way indexable
Stationary cutters: Five reversible, individually adjustable sections

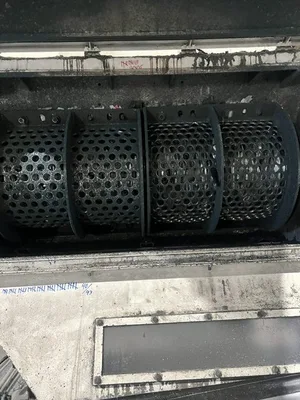

Sizing screen: Two-piece reversible screen with 1.25″ holes
Feed system: PLC-controlled hydraulic ram with two speeds and dual pressure settings
Hydraulic ram motor: 5 HP with VFD speed control
Operating features: Full-load startup capability, automatic reversal on over-amperage, and automatic shutdown when empty
XL construction: Oversized rotor, reinforced frame/floor/ram, thicker sidewalls, larger gearbox and hydraulics, and easy-access screen doors.
Secondary Granulator — WO-1442
Main motor: 75 HP, TEFC
Throat opening: 14″ x 42″
Rotor knives: 20, arranged in five rows
Bed knives: Four, arranged in two rows; micro-adjustable
Cutting configuration: Scissor-cut rotor and bed knives
Knife material: Hardened, precision-ground D2 tool steel
Discharge: 6″-diameter pneumatic port
Construction: Soundproof welded frame, heavy-duty cutting chamber, oversized rotor shaft and twin solid-steel flywheels
Mounting: Caster-mounted unitized base
Safety: Power-cutoff devices for chute/screen access
Final sizing screen: Not specified in the proposal.
Included Integration & Discharge Equipment
Elevated shredder support base with transfer chutes to the granulator
Electrical interlocks and metered-flow control
Magnetic plate for ferrous-metal removal between stages
Hopper hood with infeed curtains and dust-extraction port
Pneumatic discharge package: PH-20-155-15
Blower motor: 15 HP, 3,600 RPM, TEFC
Blower inlet/outlet: 10″ diameter
Impeller: 15.5″ diameter, dynamically balanced

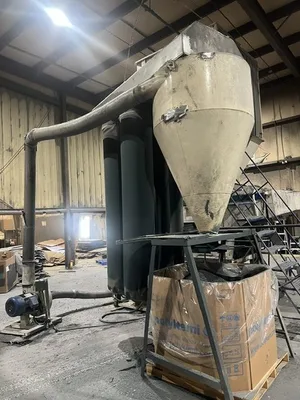

Cyclone: 48″ diameter x 85″ high
Cyclone support: Adjustable-height steel structure.
