USED POWER-ONE HD12-6.8A

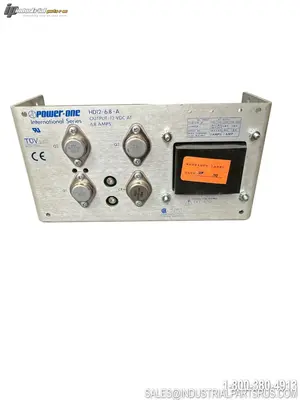

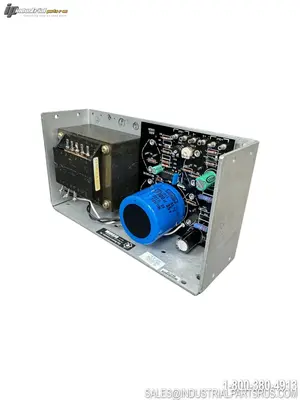

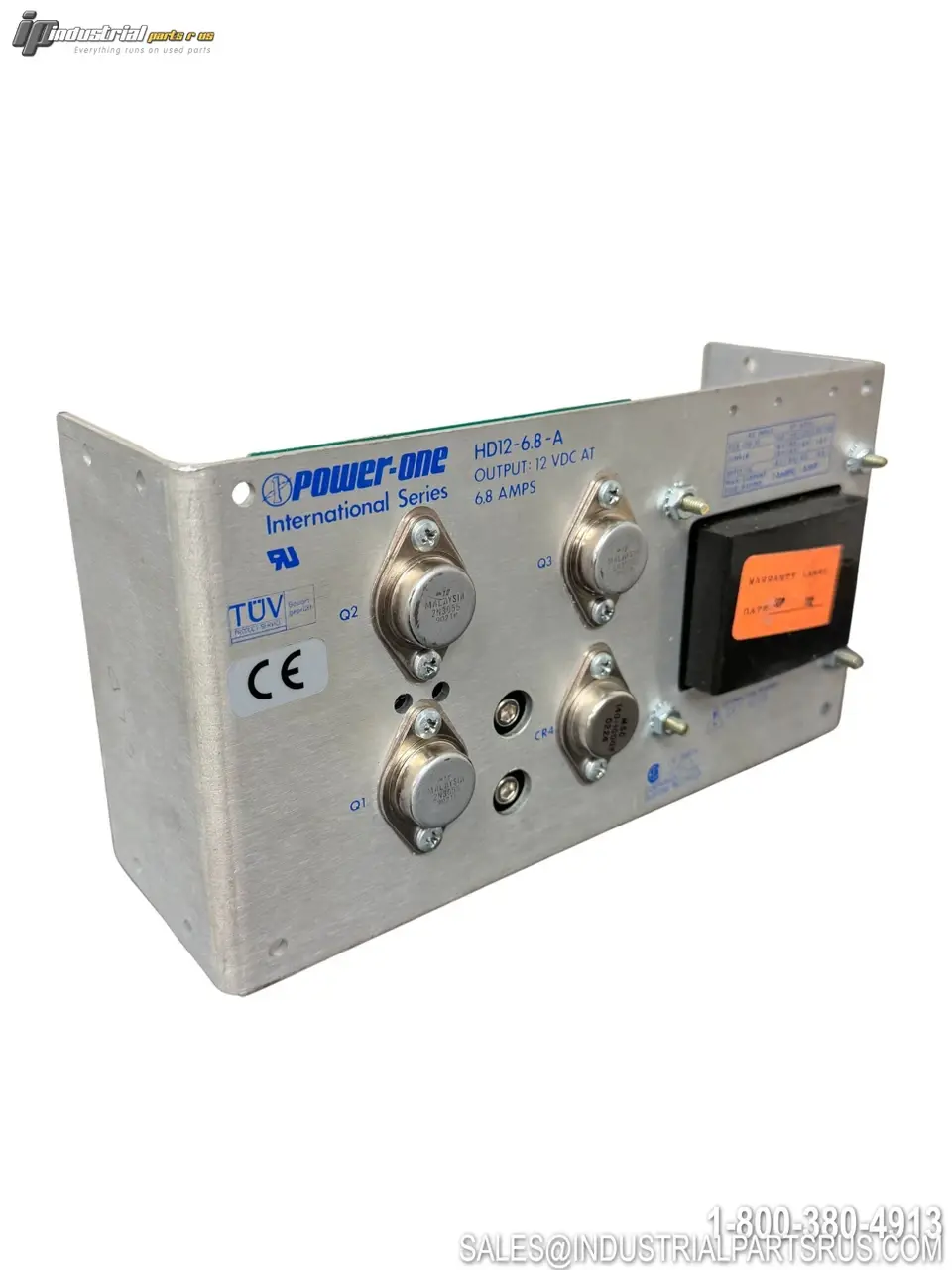

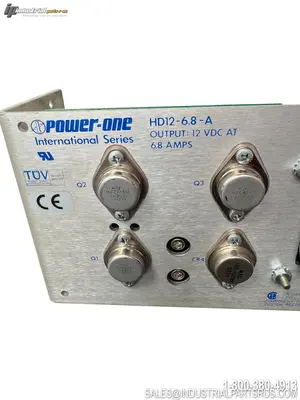

The Power-One HD12-6.8A is a single-output linear AC-DC power supply from the International Series, delivering 12VDC at 6.8A (82W) in an open-frame, chassis-mount (Case D) package. It accepts worldwide AC input voltages (100/120/220/230/240 VAC) and features ±0.05% output regulation, remote sense, output inhibit, and parallel master/slave operation capability. Output connects via screw terminal/barrier strip. Approved to UL, CSA, TÜV, and CE standards with a 100% burn-in process and MTBF in excess of 300,000 hours.
Specification
Value
Brand
Power-One
Model / Part Number
HD12-6.8A
Product Line / Series
International Series (HD Series)
Power Supply Type
Linear, Regulated, Open Frame
Input Voltage
100 / 120 / 220 / 230 / 240 VAC (Universal)
Input Frequency
47 – 440 Hz
Output Voltage
12 VDC (Adjustable ±5%)
Output Current (Max)
6.8 A
Output Power
82 W
Number of Outputs
1
Output Regulation
±0.05%
Efficiency
55% (typical, 12V output)
Case / Package
Case D – Open Frame
Mounting Type
Chassis Mount / Panel Mount
Dimensions (L x W x H)
9.00" x 4.88" x 2.75" (228.6mm x 124.0mm x 69.9mm)
Remote Sense
Yes
Output Inhibit
Yes
Parallel Operation
Yes – Master/Slave Capability
Output Voltage Adjustment
±5% via onboard Vadj potentiometer
MTBF
>300,000 Hours
Burn-In
100% Factory Burn-In
Operating Temperature
0°C to 70°C (with derating)
Approvals / Certifications
UL, CSA, TÜV, CE (Low Voltage Directive)
RoHS
Compatible (6 substances)
Applications
ITE (Commercial / Industrial)
We warranty all items for 30 days from date of purchase.
