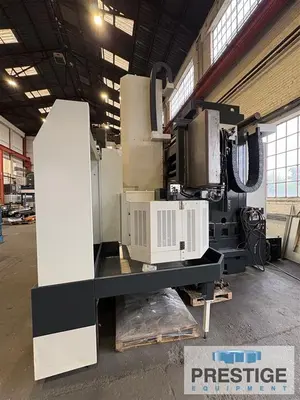

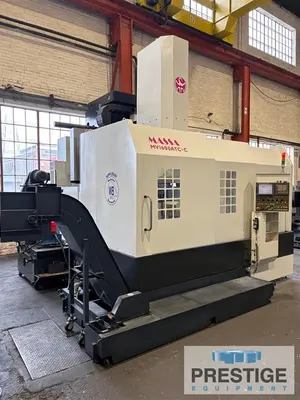

USED 2008 YOU JI YV-1600-ATC+C

SPECIFICATIONS:
Table Diameter: 62.99"
Max. Table Weight: 17,600 Lbs.
Maximum Swing: 78.74"
Maximum Turning Diameter: 70.86"
Maximum Turning Height: 47.24"
Table Speeds (2 Speed Gear Box): 2 To 250 RPM
Milling Spindle Taper: BT #50
Ram Vertical Travel Z Axis: 35.43"
Ram Horizontal Travel: 48.22"
Rail Travel: 31.49"
Rapid Traverse (X-Axis): 472.44 IPM
Rapid Traverse (Z-Axis): 393.70 IPM
Main Motor: 60 HP
Milling Spindle Horsepower: 14.6 HP
Approximate Dimensions: 218.5" x 204.7"
Machine Weight: 56,980 Lbs.

Equipped With:

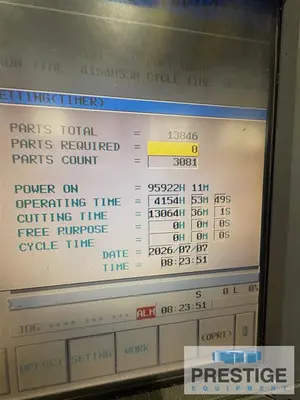

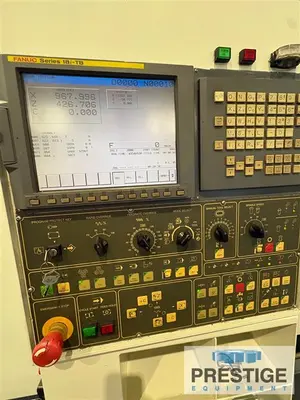

Fanuc 18-TB CNC Control
Ram W/ 16 Station Automatic Tool Changer (8 Turning, 8 Live)
Live Milling Spindle

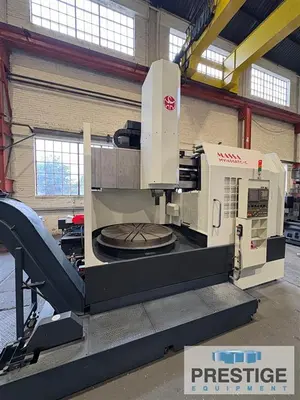

C-Axis Table
Chip Conveyor
Full Enclosure

NOTE:
As part of its overhaul this machine has had complete new spindle bearings to the milling spindle,
new Heidenhain Rotary encoder to Table (C axis), all new cable carriers up top, complete new pneumatics to ATC,
all guards stripped, shot blasted and re-powdered coated plus much more.

Features:
Fanuc 18-TB CNC Control
Ram W/ 16 Station Automatic Tool Changer (8 Turning, 8 Live)
Live Milling Spindle
C-Axis Table
Chip Conveyor
Full Enclosure
