USED 2001 WEILER E90/4500

10.3" Spindle Bore and Bar Capacity

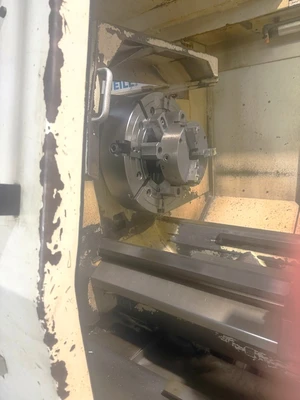

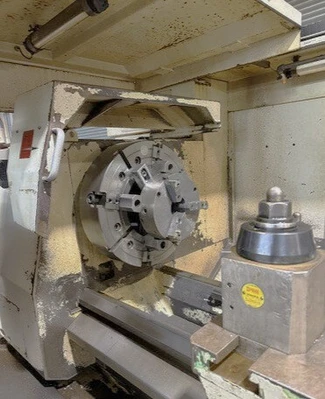

31" Manual 4 Jaw Chuck on Front of Spindle
Chip Conveyor
Tailstock

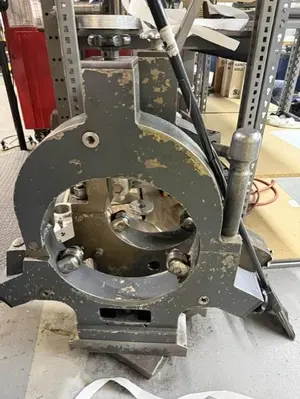

(2) Steady Rests
Remote Jog Handle
Threading Cycle
4 Station Indexable
Large Boring Bar Holder

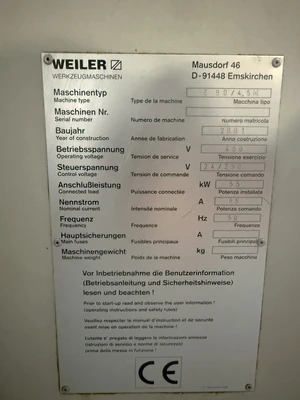

Wired 400V Electrics

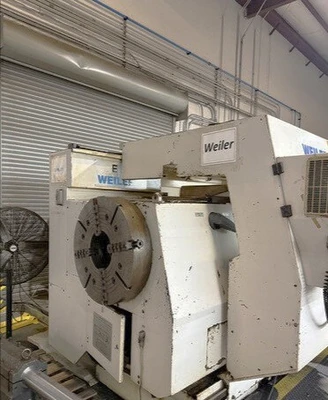

**Chuck on rear of spindle is NOT included**

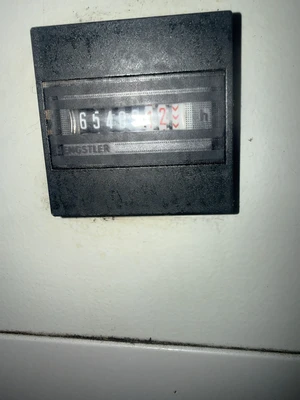

**Power On Hours 65,489**

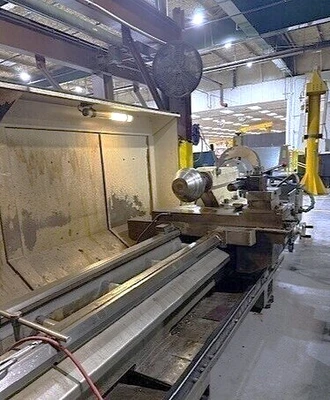

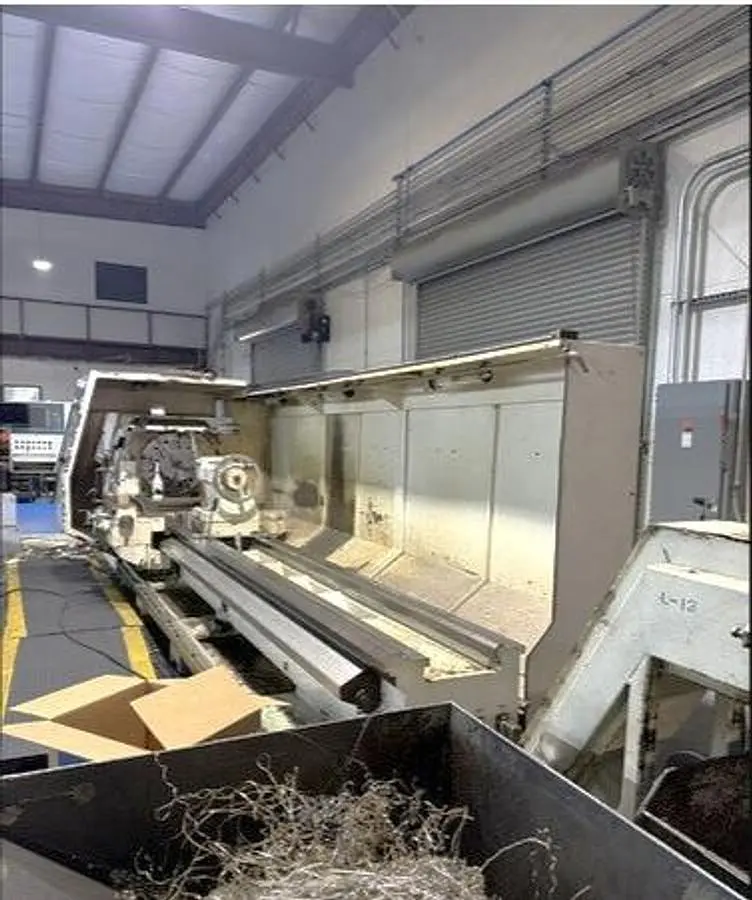

The 2001 Weiler E90/4500 CNC Lathe is a robust machine designed for precision and efficiency in industrial operations. It features a substantial 31-inch 4-jaw chuck and a generous swing over bed of 35.43 inches, providing considerable capacity for larger workpieces. The swing over the cross slide is 20.87 inches, and it offers an impressive 178 inches between centers, making it ideal for handling long materials.

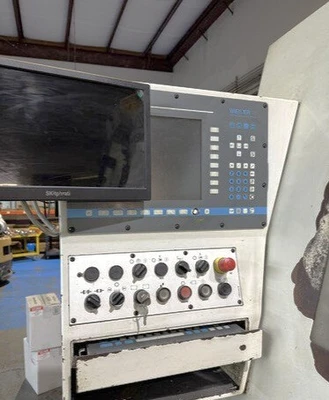

This model boasts a powerful 60 HP spindle motor with variable speeds ranging from 1 to 700 RPM, and a 10.3-inch spindle bore. The machine is equipped with a Weiler CNC Control (Siemens Type), ensuring precise and reliable operations. The 4-position tool post provides versatile tooling capabilities, and the tailstock has a quill diameter of 5.51 inches with an 11.81-inch stroke to accommodate various applications.

Further enhancing its functionality, the lathe includes a chip conveyor and two steady rests, supporting efficient workflow and maintenance. It comes with dimensions of 225 inches by 102.36 inches by 91 inches and weighs 24,250 lbs. This used model is an excellent choice for those needing a dependable, high-capacity CNC lathe.
