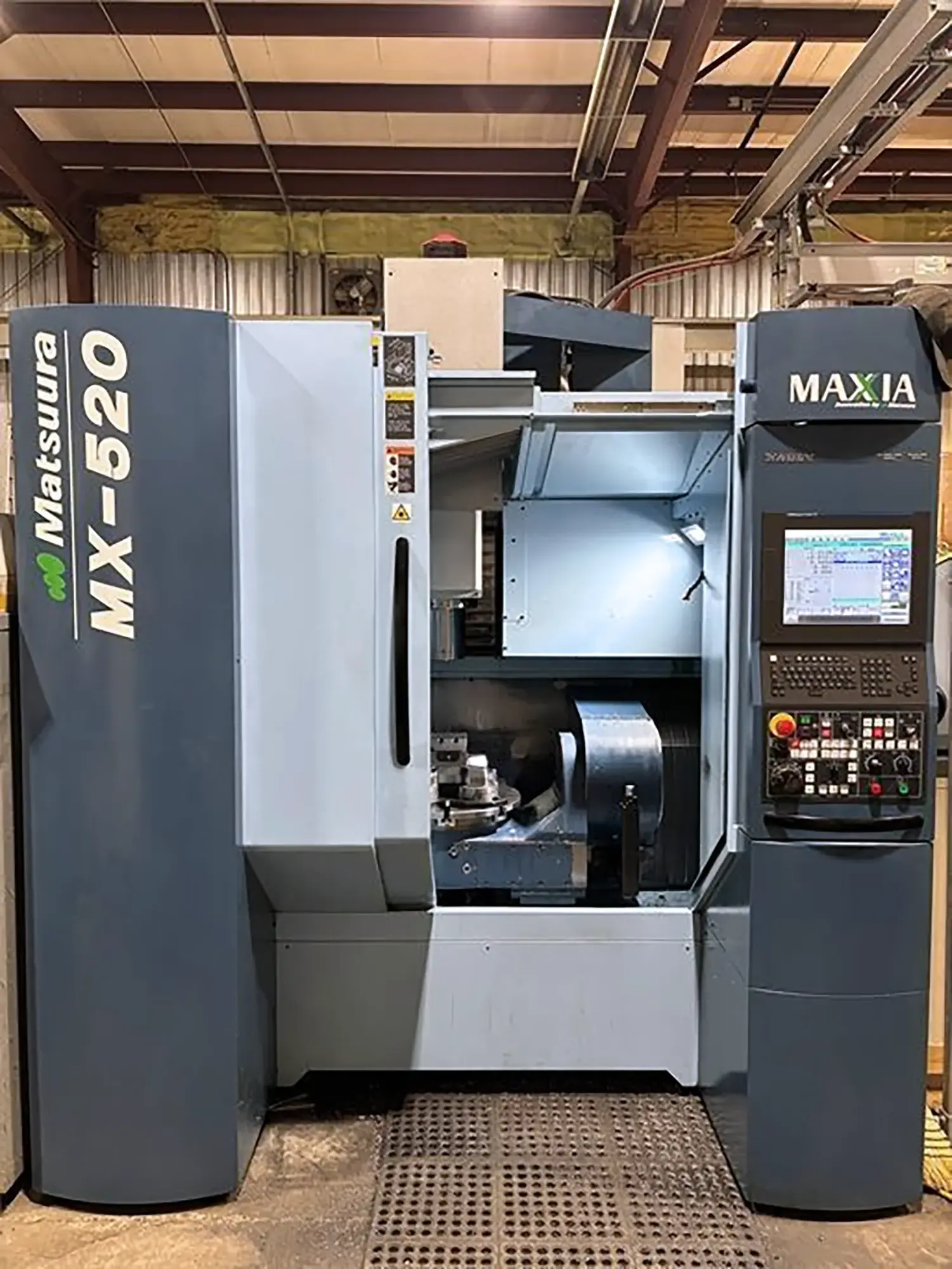

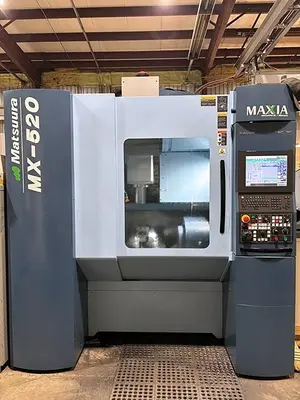

USED 2019 MATSUURA MX-520

Rear Discharge Chip Conveyor
Mist-Fit (MF-350) Coolant Mist Extractor
SMC Air Drying Unit - External
20.000 RPM Spindle - 20-25 HP - 108 Nm Torque
Glass Scales for all 5 Axes - X - Y - Z - B - C
Renishaw RMP-60 In-Process Measurement Probe
Renishaw NC-4 Laser Tool Breakage/Measurement System
High Pressure NOP Coolant Pump at 300 PSI with 20 Micron Filtration
eZ-5 Kinematic Function - Including Calibration Sphere
Matsuura/Fanuc High Speed - High Precision and 5 Axis Value Software
Spindle Cartridge Replaced 12 months ago (documentation available)
Complete set of consumable parts
Recently serviced
manuals and maintenance records available
Table Size: 500 mm
X Travel: 630 mm (24.8")
Y Travel: 560 mm (22.05")
Z Travel: 510 mm (20.08")
Spindle Taper: CAT 40 - Big Plus
Max Spindle Speed: 20,000 RPM
Spindle Motor: 25 HP
ATC Tool Capacity: 60 tools
Rapid Traverse X/Y/Z: 30 m/min
Max Table Load: 200 kg
Axis Configuration: Trunnion (Table/Table), 5-Axis Simultaneous
Trunnion / Rotary Table Diameter: 500 mm
A-Axis Travel: -125 Deg to +10 Deg
C-Axis Travel: Full 360 Deg
Rotary Table Max Load: 200 kg
CNC Control: Matsuura G-Tech 31i
Coolant: Flood, Through Spindle, Bed Wash, High Pressure (300 psi)
Machine Weight: 9,500 kg
Hours: 11,050
