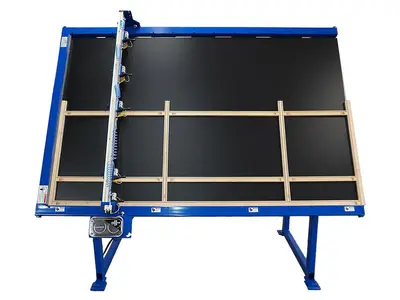

NEW JLT 720A FACE FRAME TABLE

The JLT Face Frame Table is where a cabinet shop's face frames get built square, fast, and the same way every time. Five pneumatic clamping cylinders slide anywhere along the arm and lock in place with a twist handle, so a rail lands where you need it instead of where the table wants it. One master switch clamps or releases all five at once, and each cylinder still works on its own when a frame calls for it. The one-piece melamine surface resists PVA glue and can be replaced if it ever gets chewed up, and a magnetic tray keeps your screw gun and pocket screws within reach. The table handles stock from 5/8″ to 1-3/8″ thick, runs off a single air hookup at 0–100 PSI, and arrives fully assembled on an all-steel frame. Choose the 5′ × 8′ or the 5′ × 12′, both built in Poughkeepsie, NY and backed by a 3-year warranty.
Which model should you buy?

5′ × 8′ (100″ W × 70″ H × 48″ D) — the base model, sized for standard face frames and one operator.
5′ × 12′ (148″ W × 70″ H × 48″ D) — for oversized assemblies, or as a workstation for two operators.

Both models use the same clamping system, surface and frame. Additional clamping arms and cylinders can be added to either.
Features
Clamping System

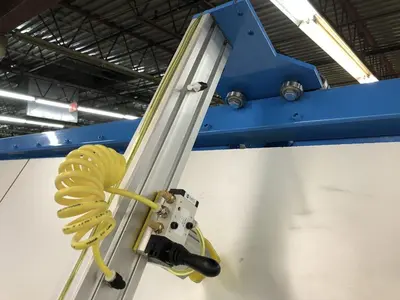

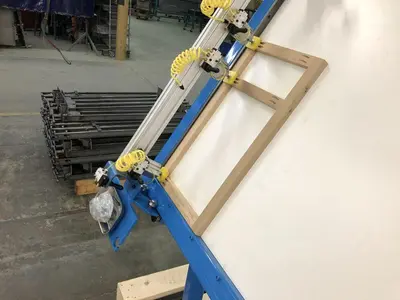

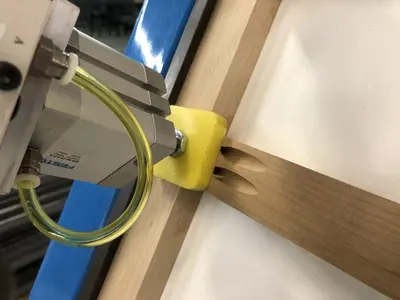

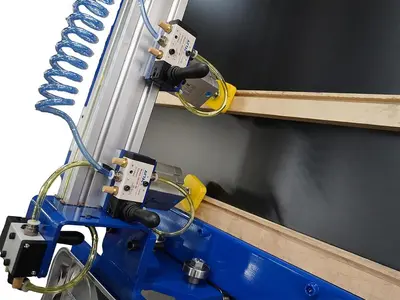

(5) clamping air cylinders that slide along the arm and lock in place with a twist handle
Master switch activates or releases all clamping cylinders at once
Individual actuation on each cylinder when a frame needs it
Innovative vertical pressure arm with easy-adjusting pneumatic cylinders
Roller-mounted clamping arm for smooth movement
Additional clamping arms and cylinders available

Work Surface

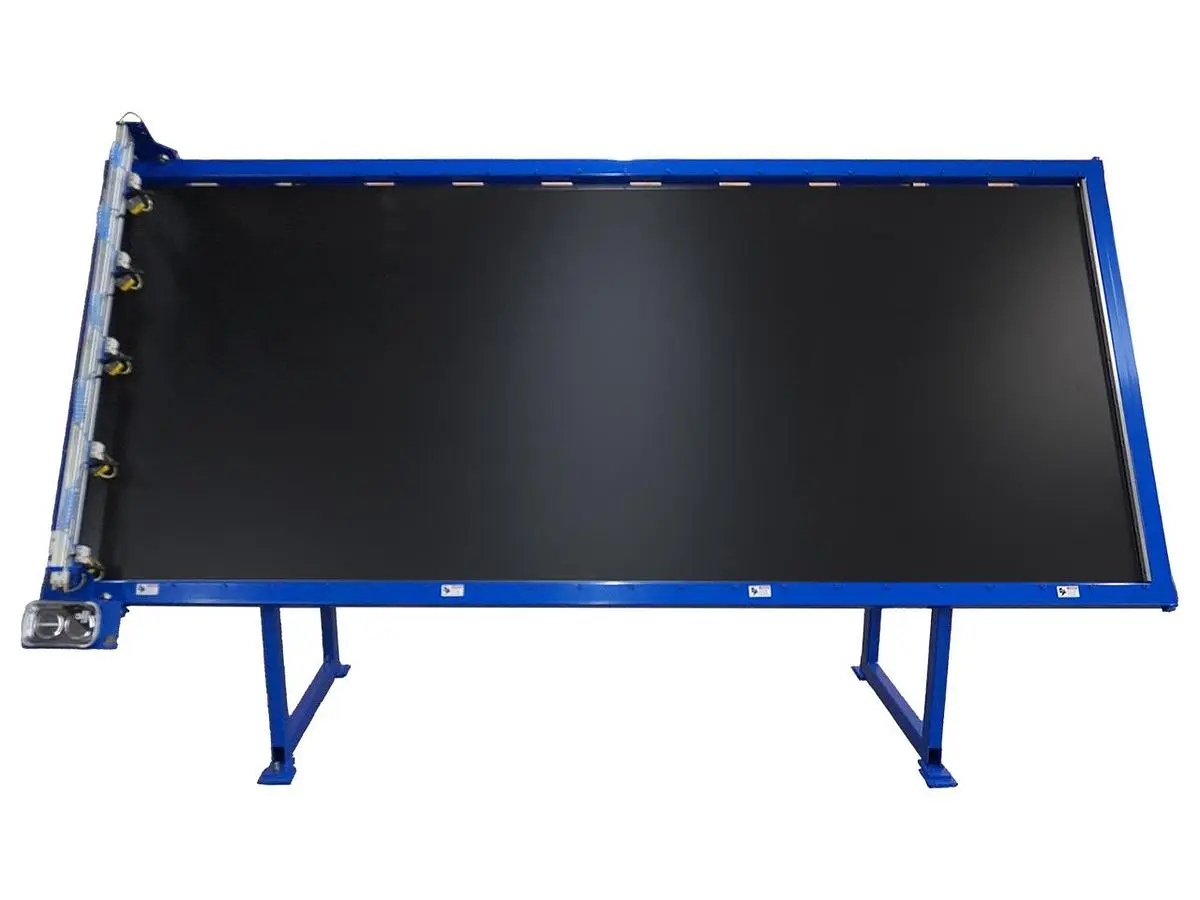

One-piece replaceable melamine surface
Holds up to daily use and resists PVA glue adhesion
Magnetic tray for your screw gun and hardware

Specifications

(2) models: 5′ × 8′ and 5′ × 12′
Handles stock from 5/8″ to 1-3/8″ thick
Single air hookup, 0–100 PSI
Fully assembled all-steel frame
