USED LITTLEFORD KM-3000-D

MANUFACTURER INFORMATION
Littleford is a manufacturer of industrial mixing and processing equipment used in chemical, pharmaceutical, food, mineral, plastics and other bulk solids processing industries. Its equipment includes plow mixers, plowshare blenders, high-intensity batch mixers and specialized processing systems designed for mixing, blending, dispersing and conditioning powders, granules and other compatible materials. Littleford plow mixing technology utilizes mechanically driven mixing elements to generate product movement throughout the mixing chamber, supporting rapid ingredient distribution and intensive batch processing. Certain configurations incorporate high-speed choppers and jacketed vessels for additional particle dispersion, agglomerate reduction and thermal processing capabilities.
PRODUCT DESCRIPTION

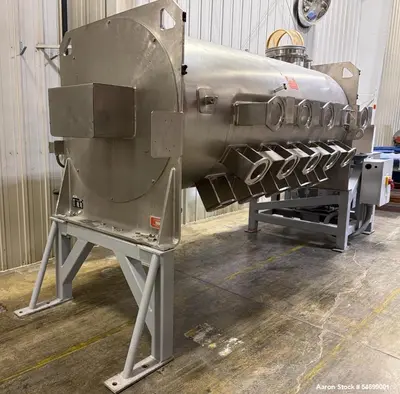

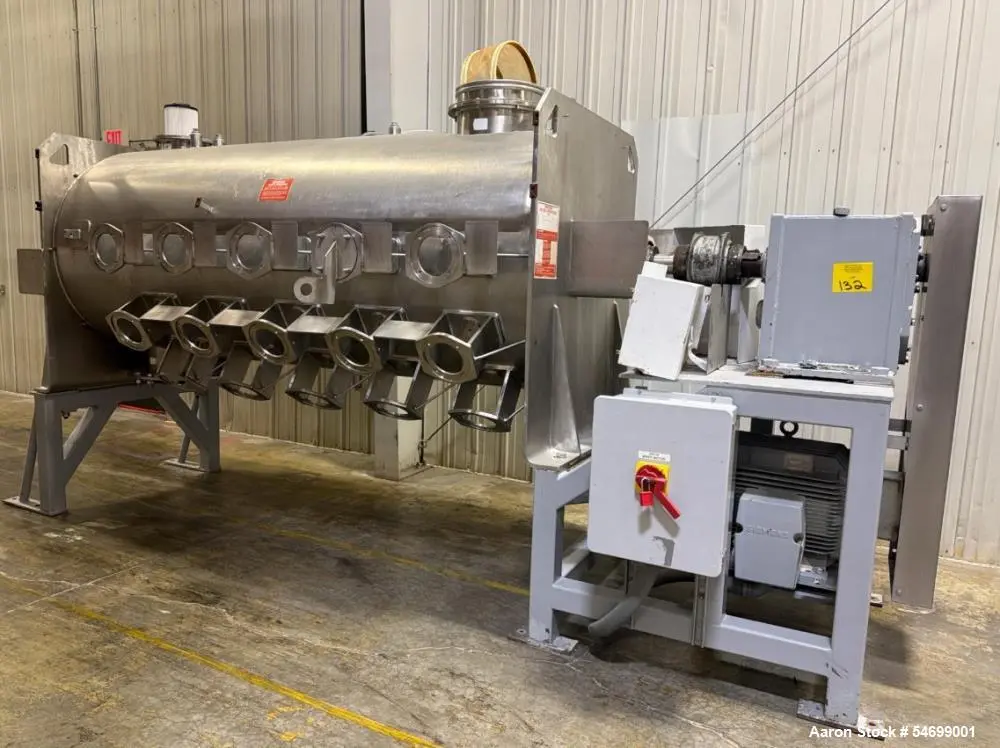

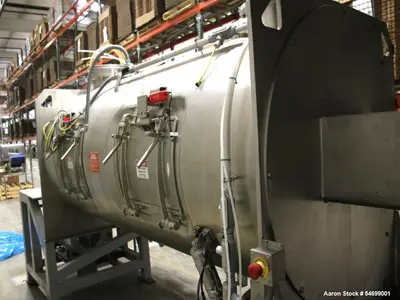

Used Littleford Model KM-3000-D industrial plow mixer with approximately 74 cubic feet working capacity, constructed of 304 stainless steel and designed for high-intensity batch mixing, powder blending, particle dispersion and processing of compatible dry bulk solids. Features an approximately 44" diameter x 116" long horizontal mixing chamber with an atmospheric pressure rating and a 304 stainless steel jacket rated for 75 psi at temperatures ranging from 32°F to 320°F. Equipped with an approximately 5" diameter mixing shaft featuring (12) welded paddles for mechanical agitation and material distribution throughout the chamber. Main agitator is driven by a 100 HP motor rated 460 volts, 3-phase, 60 Hz, 1,780 RPM through a Falk gearbox with a 13.86:1 reduction ratio. Machine features provisions for (10) tulip-style high-speed choppers, each specified for a 15 HP drive motor, along with (5) additional chopper provisions. Top openings measure 1-1/2", 3", 10" and 16". Includes (2) side access doors measuring 24" x 16" and a 16" side-bottom product discharge outlet. Serial #41961-4442. Manufactured in 1993. Possible applications include industrial powder blending, dry ingredient mixing, high-intensity batch mixing, particle dispersion, granulation, agglomerate reduction and processing of compatible specialty chemicals, mineral powders, fertilizers, construction materials, polymer additives, pigments, detergents and other bulk solid formulations.
PRODUCT SPECIFICATIONS

Manufacturer: Littleford

Model: KM-3000-D

Equipment Type: Industrial Plow Mixer / Plowshare Batch Mixer

Condition: Used

Manufacturing Year: 1993

Working Capacity: Approximately 74 Cubic Feet

Main Chamber Material: 304 Stainless Steel

Mixing Chamber Diameter: Approximately 44"

Mixing Chamber Length: Approximately 116"

Mixing Chamber Pressure Rating: Atmospheric

Jacket Material: 304 Stainless Steel

Jacket Pressure Rating: 75 PSI

Jacket Temperature Range: 32°F to 320°F

Mixing Shaft Diameter: Approximately 5"

Mixing Elements: (12) Welded Paddles

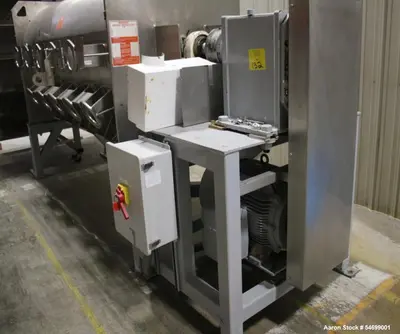

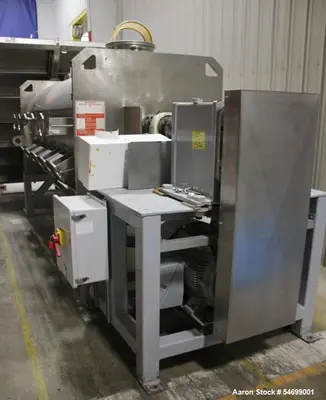

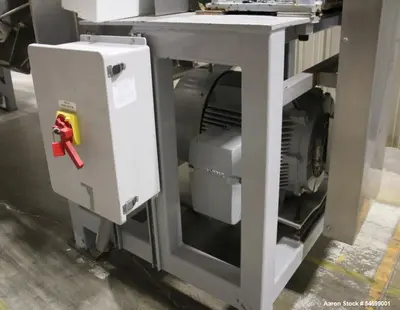

Main Drive Motor: 100 HP

Motor Speed: 1,780 RPM

Main Motor Electrical Requirements: 460 Volts, 3-Phase, 60 Hz

Gearbox Manufacturer: Falk

Gearbox Reduction Ratio: 13.86:1

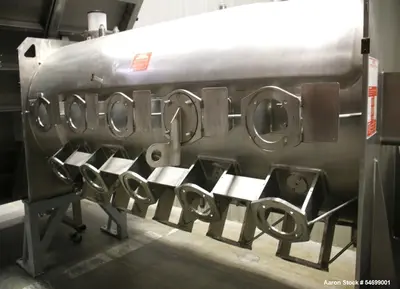

High-Speed Chopper Provisions: (10) Tulip-Style Chopper Locations

Specified Chopper Motor Size: 15 HP Each

Additional Chopper Provisions: (5)

Top Openings: 1-1/2", 3", 10" and 16"

Side Access Doors: (2) Measuring 24" x 16"

Product Discharge: 16" Side-Bottom Outlet

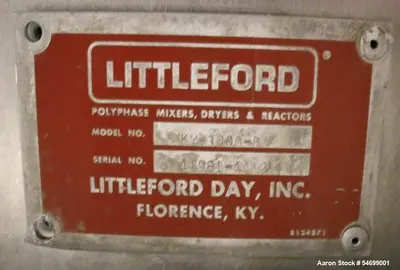

Serial Number: 41961-4442

APPLICATIONS
- High-Intensity Powder Blending: Provides mechanical agitation for combining compatible dry powders into uniform batch mixtures. The plow-style mixing configuration promotes material movement and ingredient distribution throughout the horizontal chamber.
- Industrial Dry Ingredient Mixing: Blends compatible dry ingredients with different particle sizes, densities and flow properties for manufacturing applications requiring consistent product distribution.
- Bulk Solids Homogenization: Supports mixing of multiple dry bulk solid components to improve batch consistency and reduce localized ingredient concentration differences.
- Powder Dispersion: Provides intensive mechanical mixing for distributing compatible fine powders, pigments, additives and other ingredients throughout a bulk solid formulation.
- Agglomerate Reduction: The plow mixing action may help redistribute loosely agglomerated material. The provided high-speed chopper provisions offer potential additional dispersion capability if suitable choppers and drives are installed.
- Powder Granulation: May be used for granulation and agglomeration processes involving compatible powders and appropriate liquid binder addition, mixing elements and process controls. Actual suitability depends on the equipment configuration and product requirements.
- Specialty Chemical Blending: Processes compatible dry chemical formulations, powdered additives and specialty industrial ingredients requiring high-intensity mechanical blending.
- Mineral Powder Mixing: Blends suitable powdered minerals, fillers and inorganic materials used in industrial manufacturing, construction products and specialty formulations.
- Fertilizer and Agricultural Product Mixing: Supports batch blending of compatible powdered fertilizers, mineral nutrients and dry agricultural additives into formulated products.
- Construction Material Blending: Mixes suitable cementitious additives, mineral fillers, dry mortar ingredients, powdered binders and other compatible construction material components.
- Polymer Additive Blending: Distributes powdered stabilizers, fillers, pigments and processing additives into compatible polymer compound formulations.
- Pigment and Colorant Dispersion: Supports distribution of compatible dry pigments and colorants throughout powdered carriers, fillers and other bulk solid formulations.
- Detergent Powder Manufacturing: Blends compatible powdered surfactants, builders, fillers and cleaning additives used in dry detergent and industrial cleaning product formulations.
- Jacketed Thermal Processing: The 304 stainless steel jacket provides potential temperature control during compatible mixing operations using an appropriate heating or cooling medium. Jacket operating conditions must remain within the specified pressure and temperature ratings.
- Industrial Batch Processing: Provides approximately 74 cubic feet of working capacity for larger batch mixing operations in chemical, mineral, agricultural and other bulk solids manufacturing environments.
SUITABLE PRODUCTS / MATERIALS
- Specialty Chemical Powders: Compatible powdered chemical intermediates, industrial additives and dry chemical formulations requiring batch blending.
- Mineral Powders: Limestone powder, calcium carbonate, kaolin, talc and other compatible mineral ingredients used in industrial formulations.
- Powdered Fillers: Suitable inorganic and organic fillers used in plastics, coatings, construction materials and specialty chemical manufacturing.
- Fertilizer Ingredients: Compatible powdered fertilizers, mineral nutrients, soil amendments and agricultural formulation components.
- Dry Detergent Ingredients: Powdered detergent builders, dry surfactant blends, cleaning additives and compatible laundry detergent formulations.
- Construction Material Powders: Dry mortar ingredients, mineral additives, cementitious fillers and other compatible powdered construction components.
- Polymer Additives: Powdered processing aids, stabilizers, functional fillers and specialty polymer compounding ingredients.
- Plastic Compound Ingredients: Compatible dry plastic resins, powdered polymer blends, fillers and color concentrates requiring batch blending.
- Pigments and Colorants: Suitable dry pigments, powdered colorants and pigment carrier mixtures used in coatings, plastics and industrial formulations.
- Ceramic Powders: Compatible ceramic raw materials, mineral blends and fine powdered ingredients used in specialty ceramic manufacturing.
- Dry Coating Ingredients: Powdered resins, mineral fillers, pigments and other compatible ingredients used in industrial coating formulations.
- Powdered Agricultural Products: Dry micronutrients, mineral supplements and compatible bulk agricultural additives.
- Industrial Absorbent Powders: Compatible absorbent minerals, powdered carriers and other dry materials used in industrial product formulations.
- Chemical Carrier Materials: Dry powders used as carriers for compatible additives, pigments or other formulation ingredients.
- Granular Industrial Materials: Compatible granules, pellets and particulate solids requiring blending, conditioning or additive distribution.
- Powder and Granule Mixtures: Formulations containing combinations of fine powders and larger granular materials where the mixing action is appropriate for the product.
- Dry Binder Formulations: Compatible powdered binders, fillers and processing additives used in agglomeration or granulation applications.
- Specialty Compound Blends: Multicomponent dry formulations containing compatible powders, fillers, pigments, modifiers and other industrial ingredients.
- Mineral-Based Cleaning Products: Powdered cleaning formulations containing compatible mineral abrasives, builders and functional cleaning additives.
- Functional Powder Formulations: Compatible powdered additives and specialty materials requiring uniform distribution throughout an industrial batch.
Product compatibility depends on bulk density, particle size, abrasiveness, moisture content, flow characteristics, material sensitivity and the installed mixing configuration. Suitability for food or pharmaceutical processing should be separately verified based on equipment construction, condition, cleaning requirements and applicable standards.
FREQUENTLY ASKED QUESTIONS (FAQs)
- What is the Littleford Model KM-3000-D plow mixer used for?
The Littleford KM-3000-D is an industrial plow-style batch mixer designed for high-intensity mixing of compatible powders, granules and dry bulk solids. Potential applications include specialty chemical blending, mineral powder processing, detergent manufacturing, fertilizer production, construction material mixing and other industrial powder formulations.
- What is the working capacity of the Littleford KM-3000-D?
The mixer has an approximate working capacity of 74 cubic feet. Actual allowable batch weight depends on material bulk density, filling level, mixing characteristics and the manufacturer's recommended operating limits.
- What is the difference between working capacity and total chamber volume?
Working capacity represents the approximate volume of material intended to be processed during operation. Total chamber volume is the internal volume of the mixing vessel. The working capacity is generally lower to provide space for product movement and proper mixing action. This unit has a stated working capacity of approximately 74 cubic feet.
- How does an industrial plow mixer operate?
A plow mixer uses mixing elements mounted on a rotating horizontal shaft to move material throughout the mixing chamber. The agitation produces continuous product movement and helps distribute ingredients within the batch. Mixing performance depends on paddle configuration, shaft speed, material characteristics and fill level.
- What is the difference between a plow mixer and a ribbon blender?
A plow mixer uses plow-shaped or paddle-style elements to create intensive material movement and distribution throughout the mixing chamber. A ribbon blender uses inner and outer helical ribbons to move material in opposing axial directions. Plow mixers are often selected for applications requiring intensive powder mixing, dispersion or specialized processing, while ribbon blenders are commonly used for bulk powder blending.
- What materials are used in the construction of this Littleford mixer?
The mixing chamber and jacket are constructed of 304 stainless steel. This material is commonly used in industrial processing equipment and provides corrosion resistance for many compatible manufacturing applications. Suitability for specific chemicals should be confirmed.
- Is the Littleford KM-3000-D jacketed?
Yes. The mixer includes a 304 stainless steel jacket rated for 75 psi at temperatures ranging from 32°F to 320°F. The jacket may be used for compatible heating or cooling applications when properly connected to an appropriate temperature control system.
- Can the mixing chamber operate under pressure or vacuum?
The mixing chamber is rated for atmospheric operation. The 75 psi pressure rating applies to the jacket, not the internal mixing chamber. Pressure or vacuum processing should not be assumed to be supported without additional engineering verification.
- What is the purpose of the jacket on this plow mixer?
The jacket provides a means of transferring heat to or from the mixing chamber using a compatible heating or cooling medium. This may support temperature-controlled blending, product conditioning or specialized thermal processing applications.
- What is the main motor horsepower?
The mixer is equipped with a 100 HP motor rated at 1,780 RPM. The motor requires 460-volt, 3-phase, 60 Hz electrical service and drives the main mixing shaft through a Falk gearbox.
- What gearbox is installed on this mixer?
The unit includes a Falk gearbox with a 13.86:1 reduction ratio. The gearbox reduces the motor's rotational speed and transmits torque to the mixing shaft. Actual shaft speed should be confirmed against the complete drive configuration.
- How many mixing paddles does the unit have?

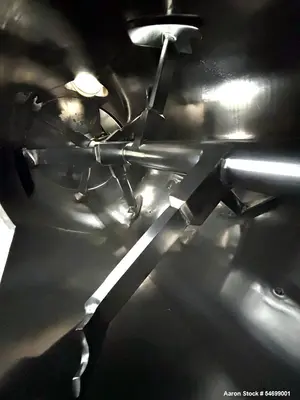

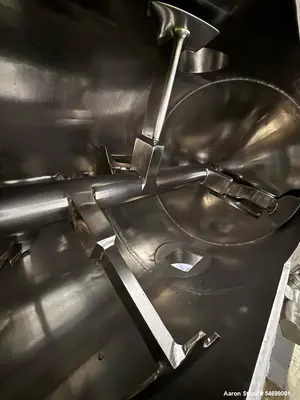

The machine features an approximately 5" diameter shaft with 12 welded mixing paddles. These paddles provide the mechanical agitation required for mixing compatible bulk solids within the chamber.

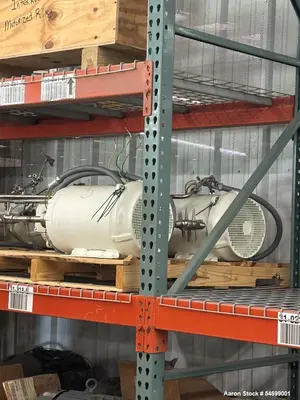

- Does this Littleford plow mixer include high-speed choppers?
The provided specifications identify provisions for 10 tulip-style choppers, each specified for a 15 HP drive motor, along with five additional chopper provisions. The description does not confirm that the chopper assemblies or their motors are installed or included. Buyers should verify the installed equipment and available components.
- What is the purpose of high-speed choppers in a plow mixer?
High-speed choppers are commonly used in intensive mixing systems to assist with breaking up agglomerates, dispersing minor ingredients and supporting certain granulation processes. Their effectiveness depends on product characteristics, operating speed, chopper design and mixing conditions.
- Can this mixer be used for granulation?
The machine may be suitable for compatible granulation processes, particularly when equipped with appropriate high-speed choppers and liquid addition equipment. Actual granulation capability depends on the formulation, mixing configuration, liquid distribution and available process controls.
- Can the Littleford KM-3000-D blend powders with different particle sizes?
The mixer may be used for blending compatible powders and granules with different particle sizes. Mixing performance depends on bulk density, particle size distribution, flow properties and formulation characteristics. Product testing is recommended for applications requiring specific blend uniformity.
- What access openings are included on the mixer?
The machine includes top openings measuring 1-1/2", 3", 10" and 16", along with two side access doors measuring 24" x 16". These openings provide potential access for product charging, inspection, maintenance or connection of compatible process equipment, depending on their configuration.
- How is material discharged from the mixer?
The unit includes a 16" side-bottom outlet for product discharge. The specific discharge valve or closure arrangement should be verified for the machine.
- Can this mixer process abrasive mineral powders?
The machine may be suitable for certain compatible mineral powders. Highly abrasive materials can increase wear on paddles, chamber surfaces and other components. Buyers should evaluate material abrasiveness and inspect equipment condition before use.
- What electrical service is required for the Littleford KM-3000-D?
The main drive motor requires 460-volt, 3-phase, 60 Hz electrical service. The motor is rated at 100 HP and 1,780 RPM. Additional electrical requirements would apply if high-speed choppers or auxiliary equipment are installed.
- What are the mixing chamber dimensions?
The chamber measures approximately 44" in diameter x 116" long. These dimensions describe the mixing chamber rather than the complete overall equipment footprint.

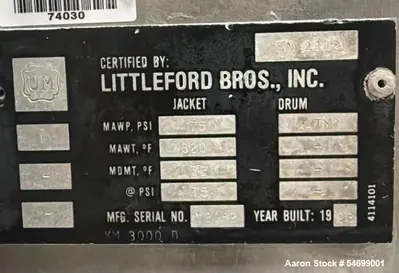

- When was this Littleford mixer manufactured?
The machine was manufactured in 1993 and carries serial number 41961-4442. Buyers may use this information when requesting available manufacturer documentation or replacement parts information.
