USED 2021 HAAS DM-2

Ohio, United States
1,335Listings|527Followers
Overview
Vertical Machining Centers

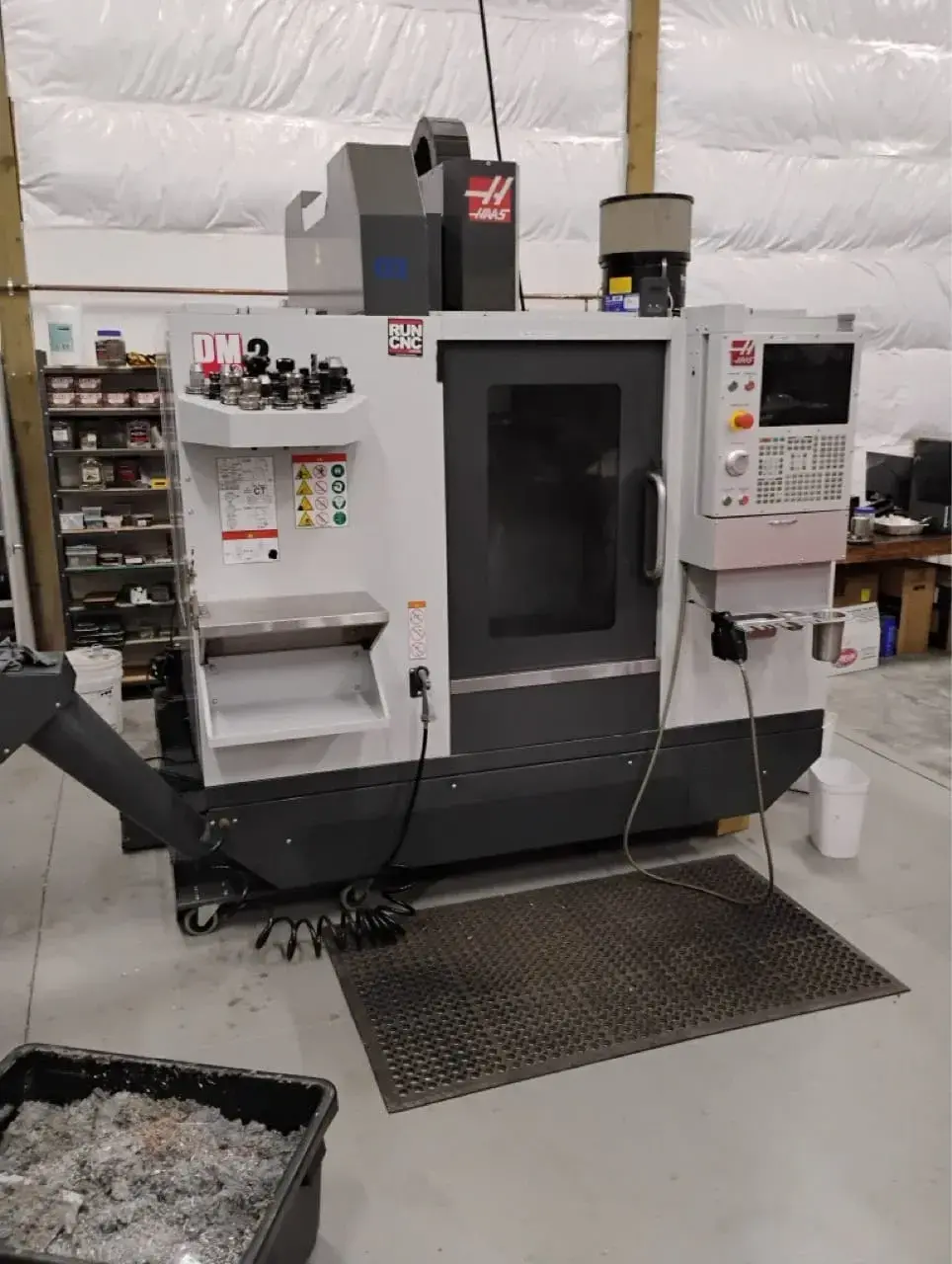

This 2021 Haas DM-2 vertical machining center comes with an HR160SP 4th axis rotary, Renishaw probing, and through spindle coolant. Travels of 28" x 16" x 15.5" sit over a 34" x 15" table, paired with a 10,000 RPM CT-40 spindle, 15 HP, and an 18+1 tool changer.

Specs
X
28"
711.2 mm
Y
16"
406.4 mm
Z
15.5"
393.7 mm
Power
15 hp
11.2 kW
RPM
10,000 RPM
10,000 RPM
# ATC
18
18
Taper
CT-40
CT-40
Table-W
15"
381 mm
Table-L
34"
863.6 mm
# Axis
4
4
Control
CNC (HAAS)
CNC (HAAS)

Max Tapping Speed: 5,000 RPM
Approximate Weight: 5,500 lbs

Equipped With

Haas HR160SP Rotary
Renishaw Probe
Through Spindle Coolant
Chip Auger
Rigid Tapping
High Speed Machining
Macros
Rotation and Scaling
M19 Spindle Orientation
VPS Editing
Compensation Tables
Media Display
Wireless Networking
