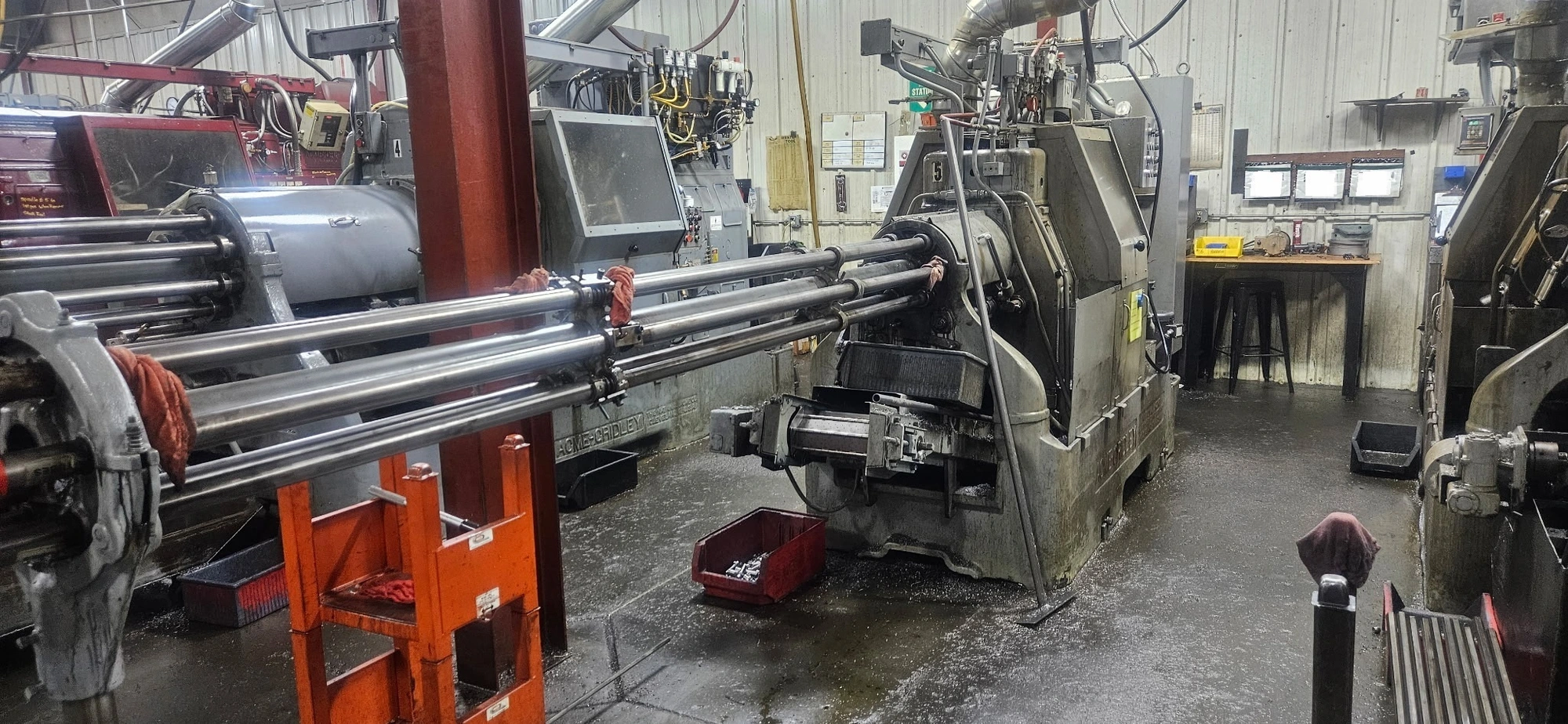

USED ACME GRIDLEY RAN-6

Maximum Stock Capacity - Round....................1"
Maximum Stock Capacity - Square...................45/64"
Maximum Stock Capacity - Hexagon..................55/64"
Combined Pusher & Tube - Round....................1-1/16"
Maximum Sock Feed Length..........................5"
End Tool Slide Travel.............................5"
Upper Cross Slides Travel.........................1-1/4"
Intermediate Cross Slides Travel..................1-1/8"
Lower Cross Slides Travel.........................1-3/4"
Main Motor Horsepower.............................15
Spindle Speed Minimum RPM.........................321
Spindle Speed Maximum RPM Standard................3538
Spindle Speed Maximum RPM Spindle Stopper.........2140
Idle Time Seconds.................................0.92
Lubrication Reservoir Capacity....................15 Gallons
Lubrication Pump Flow Rate........................3 GPM
Coolant Reservoir Capacity........................100 Gallons
Coolant Pump Flow Rate............................42 GPM
Length of Machine.................................7'-9"
Length of Machine with Stock Reel and Stand.......18'-1"
Height of Machine - Approximate...................6'-5"
Width of Machine..................................3'-7"
Weight of Machine - Pounds........................11,300
