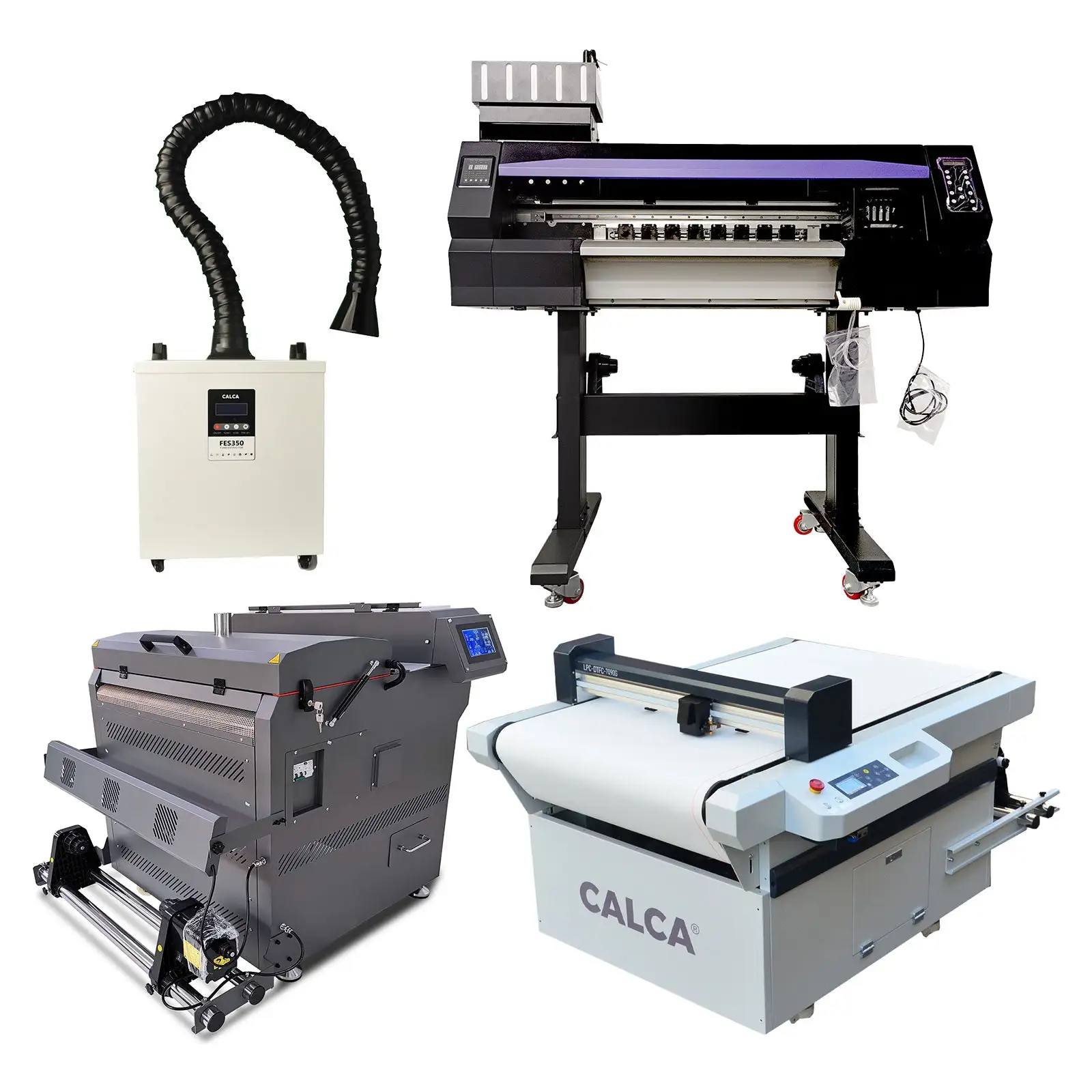

CALCA Prime 24inch DTF Printing System (Dual Epson I3200-A1 Heads, Compact Powder Shaker and Dryer)

CALCA 24in (600mm) Entry Level Automatic TPU Adhesive Powder Shaker and Dryer Machine

Description

With a touch screen display controller, simple to use.

Infrared drying and heating improves and protects color reproduction.

With a mesh belt platform (non-transportable, without suction function) secures the printing material to avoid bulging, run-offs, adhesion and media waste.

CALCA DTF powder shaker and dryer unit can handle up to 24in wide DTF film.

With the advancement in DTF technology, there is no denying that DTF is taking the printing industry by storm. It is quickly becoming one of the most popular technologies for textile printing compared to traditional printing methods.

This all in one DTF powder shaker unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.

Applicable Medium: Nylon, Chemical Fiber, Cotton, Leather, Swimsuit, Diving Suit, PVC, EVA, etc.

Specifications:

CALCA Brand: USA registered

Maximum Shake Powder Width: 600mm (23.6inches)

Functions: Shake powder control, dusting control, PID setting of curing temperature

Heating Element: Quartz infrared heat drying tube

Rewinding Function: Automatic induction rewinding

Heating and Drying Mode: Front guide plate heating, upper drying curing

Cooling Mode: 3 fan air cooling (Single row)

Machine Size: 35.4in x 33.1in x 42.6in (900mm x 840mm x 1082mm)

Machine Weight: 280lbs (140kg)

Packaging Size: 47.2in x 40.9in x 44.9in (1200mm x 1040mm x 1140mm)

Gross Weight: 396lbs (180kg)

Requirements:

Working Power Supply: AC110V, 50hz / 60hz, 1 phase.

Current: 28A, 3000W

With CALCA DTF film, powder and Inks, you can easily and quickly create custom t-shirts and apparel.

Powder spreading structure: The motor drives the brush to rotate to brush the hot melt powder out of the powder box.

Powder shaking device: the motor drives the powder shaking lever to beat the film to clean up excess hot melt powder.

Remarks:

CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.

Remarks:

CALCA DTF powder shakers do not have automatic powder recycling function, in order to avoid hot melt powder moisture.

Features:

· With a warming inlet platform, automatic powder dispenser, paddle to remove excess powder, 4 bulb tunnel dryer and roll up at the end.

· This all in one unit takes over by evenly spreading, then melting the needed amount of adhesive material directly onto your printed image, saving time, effort, and cost.

· Infrared drying and heating improves and protects color reproduction.

· Customized powder recycling drawer, increases effectiveness.

· Shake powder control, dusting control, PID setting of curing temperature.

· Automatic powder feeding, evenly spreading powder.

Prime 24inch (600mm) DTF Printer (Direct to Film Printer) with Dual Epson I3200-A1 Printheads

Specifications:

Item Model

Prime 24inch (600mm) DTF Printer

Available Print Head & Quantity

Dual Epson I3200-A1 Printheads

Max Printing Width

600mm

Ink System

Ink Type

Pigment Ink

Ink Color

CMYK+W

Ink Volume

1500ml

Printing Mode

(CMYK)

Mode

Printing Speed (meter)

High Speed Mode

7.65㎡/h

Production Mode

4.8㎡/h

Fabric Type

cotton. linen.etc

Working Condition

Humidity

40%－85% （without condensate）

Temperature

15 ℃－30 ℃

Computer requirements

Operating System

Windows 7,Windows10 or Later Versions

Hardware

CPU:Intel core i5H↑Memory:8G↑/ Graphics Discrete

Interface

1000MB Network Interface

RIP Software

DTF Master RIP Software

Language

Chinese/English

Image format

PNG / JPG / TIFF

Rated Voltage

AC110V, 50HZ / 60HZ, 1 phase.

Power

9A, 1000W

Rated Current

5A(220V)/9A(110V)

Product size/Weight

1560L*700W*1360H(mm) /129KG

Packing size/Weight

1890L*840W*760H(mm) /179KG

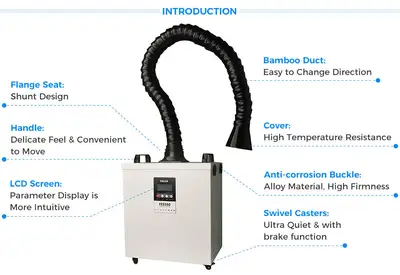

CALCA 350W Fume Extractor Filter and Air Purifier with 4-Stage Filtration System for DTF Powder Shakers, Laser and Soldering

Applications: be used for kinds of DTF powder shakers.

Specifications:

Rated Voltage: AC110V ± 5%

Rated Current: 3.2A

Rated Power: 350W

Filtration efficiency: 0.3um, 99.97%

Max air amount: 430m³/h

Port: Φ75mm Flange

Noise: ≤ 55dB

Machine Size: 16.1in x 10.2in x 17.7in (410mm x 260mm x 450mm)

Machine Weight: 37.5lbs (17kg)

Package Size: 20.9in x 13.8in x 29.5in (530mm x 350mm x 750mm)

Gross Weight: 49.6lbs (22.5kg)

Warranty: 1-year warranty on this Fume Extractor.

Package Includes:

• 1 x Fume Extractor

• 1 x Bamboo Duct

• 4 x 1st Layer Pre-filter Cotton

• 1 x Nozzle (Square)

• 1 x Nozzle (Circle)

• 1 x Power cord

• 1 x User manual

CALCA 30" x 36" Auto Fed Flatbed Digital Cutter Roll Cutter for DTF Printing Film (6090G)

Flatbed cutter with conveyor feeding, a special purpose auto fed flatbed digital cutter for DTF industry with features optimized according to characters of material applied in the DTF field.

Super easy installation, one-key operation and high efficiency make CALCA 6090F a right-hand man for DTF, Heat transfer apparel industries.

Compatible with Cadlink, AutoCAD, CorelDRAW, and CALCA DTF Fairy RIP Software (Print-to-cut).

Batch cutting, guarantee of high efficiency.

Gang sheets are widely used in the production of custom dtf heat transfers – both screen printed and digitally manufactured. CALCA roll CNC Cutter can maximize your efficiency and minimize the cost.

Spare Part Package includes:

1set x User manual

2pcs x Blade holder

6pcs x Blade

1set x Allen wrench

1pcs x Power Cable

1pcs x USB Cable

1pcs x U Disk

1pcs x SignWorkPro

1pcs x Fan with silencer

Application:

Used for fraffic signs industry, vehicle decoration, automotive aftermarket, sign makers, packaging, apparel signing, shoes designing, bags designing, composite industry, offset printing, samples making , POP displays, and more.

It is an efficient solution of perforation cutting, half cutting, creasing, marking, etc.
