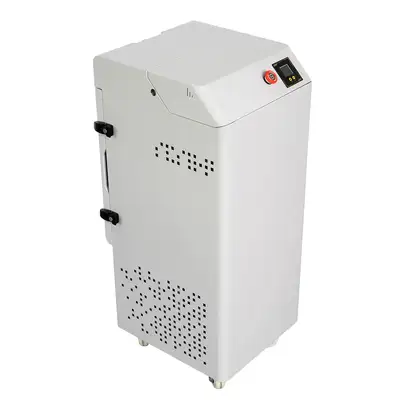

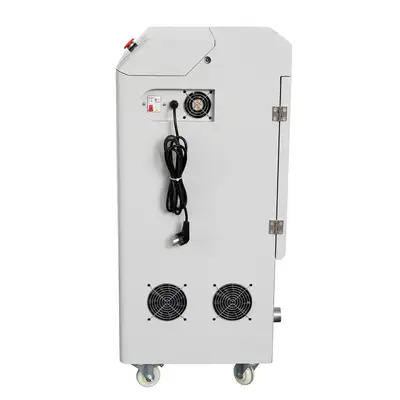

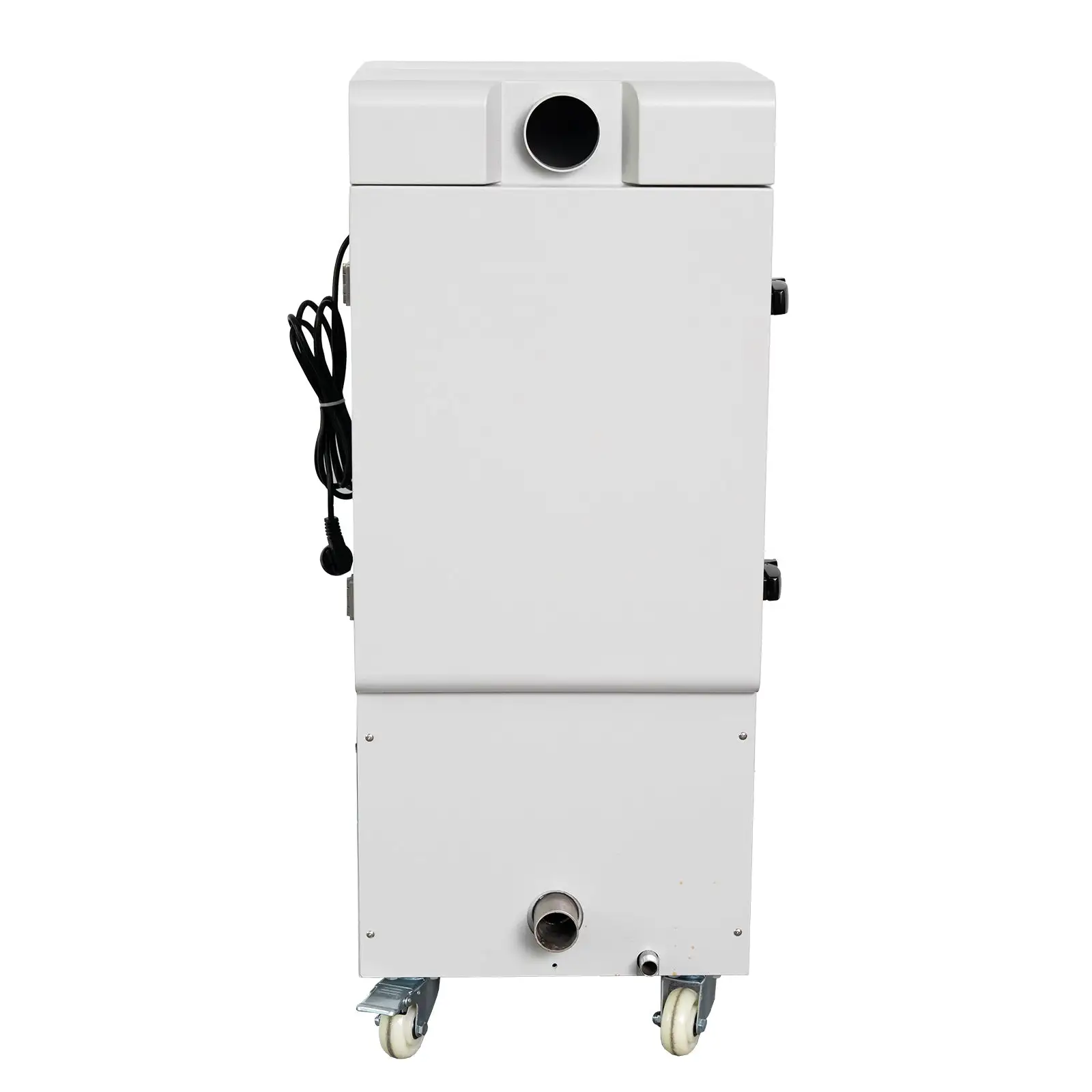

CALCA 176W Universal Oil Fume Purifier Air Volume 43m³/h-202m³/h for DTF Powder Shakers

Description

CALCA JS100 smoke lampblack filter is designed for the machine need smoke discharge like dtf shaker or sublimation color system. It can be matched with various powder shakers and sublimation color fixing machines to complete the extraction and filtration of oil fume.

Effectively eliminate and filter the oil fume in the drying process, improve the quality of processed products, and provide a clean and smoke-free working environment.

Specifications:

Rated Voltage: AC 110V / 220V ± 5%

Rated Current: 1.6A / 0.8A

Rated Power: 176W

Max air amount: 202m³/h

Noise: ≤ 65db

Machine Size: 17.8in x 19.3in x 41.6in (451mm x 490mm x 1056mm)

Machine Weight: 108lbs (49kg)

Package Size: 23.8in x 21.5in x 48.5in (605mm x 545mm x 1231mm)

Gross Weight: 159lbs (72kg)

Features:

1. Smaller size, save shipping cosis

2. Digital display

3. Low energy consumption

4. Air volume adjustable

5. The CALCA fume extractor achieves the separation of oil fume. Compared with the common fume extractor on the market, which only uses the filter element to forcefully absorb the oil pollution, the filtering will be cleaner and the effect will be better.

The oil here refers to glycerin. At present, DTF PET film and DTF TPU powder contains glycerin. Therefore, a good shaker will dry the glycerin, otherwise the glycerin contained in the hot stamping on the clothes is not washable and easy to fall off. Moreover, the filter element of the general filter element is not resistant to oil and the filter element will fail soon. Our filter is specially for dtf dust, the filter life is 3-5 times longer. Recommended for customers to use.
