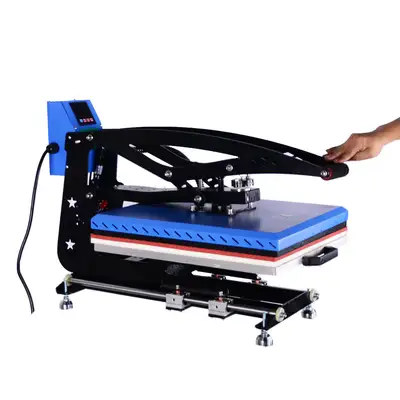

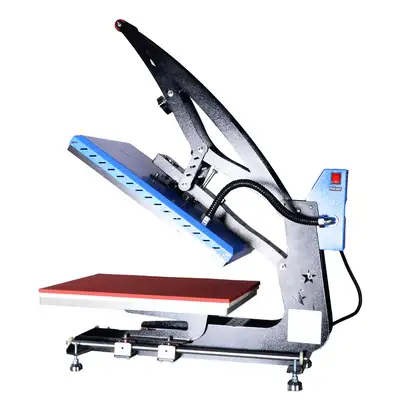

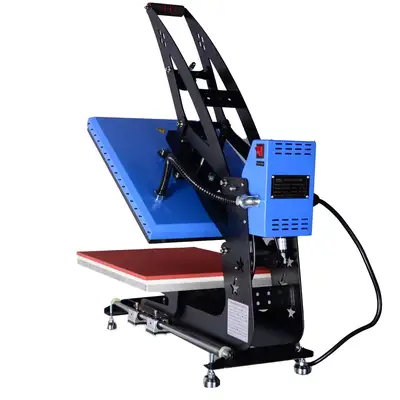

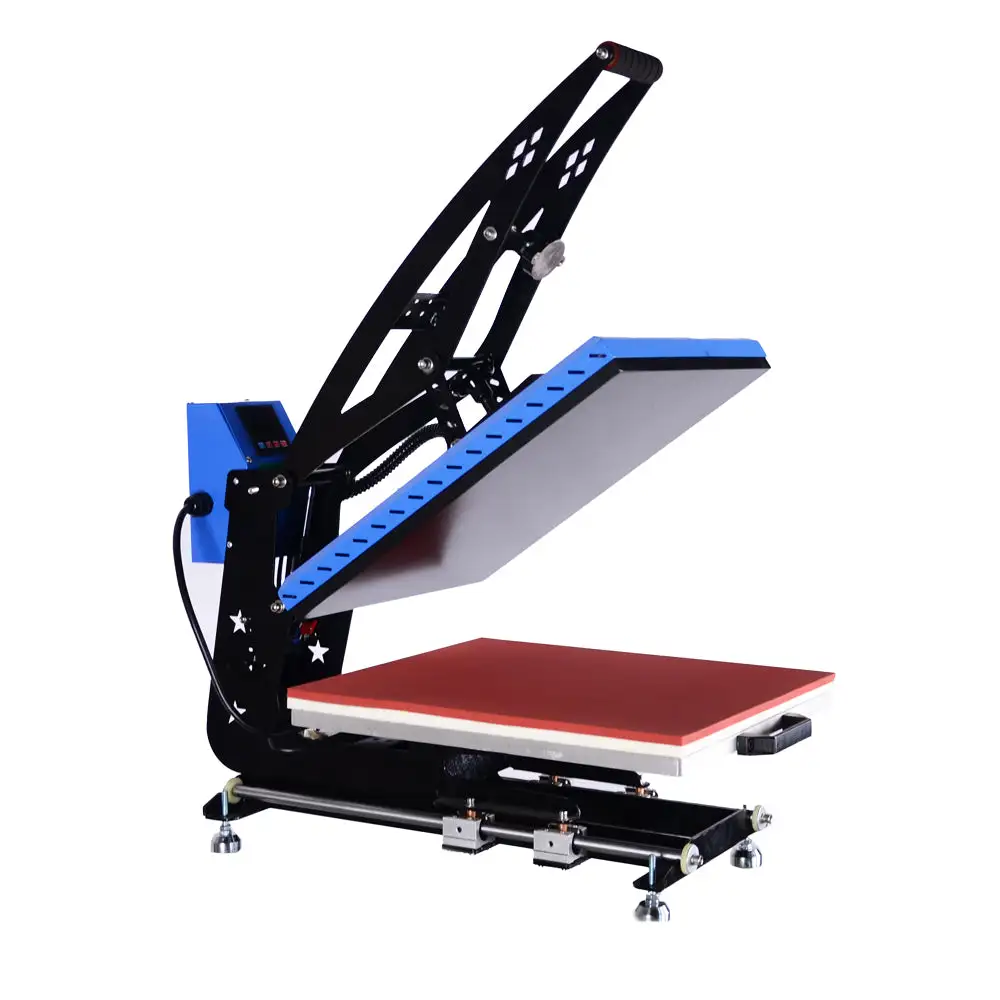

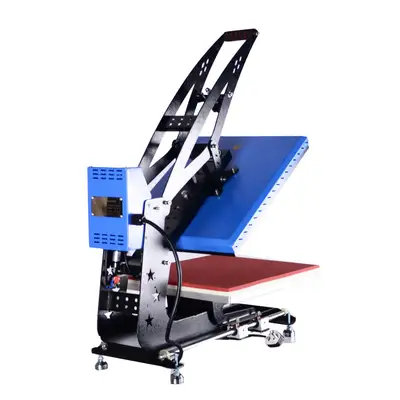

16in x 20in Auto Open Slide Out Heat Press Machine Vertical Version

Description:

The press is equipped with a manual override, a digital display, and a sound signal at the end of work. Designed for printing textiles and other materials, The machine may be used on t-shirts, mouse pads, puzzles, ceramic tiles, and other flat surfaces items by using the flex, flocking, transfer printing paper, sublimation etc.

Data Sheet:

Voltage: 110V, 60Hz, 12.7A, / 220V, 50Hz, 10A

Transfer Size: 16in x 20in(40 cm x 50 cm)

Power: 1400W (110V) / 2200W (220V)

Time Range: 0-999S

Temperature Range: 0-250°C (32-482°F)

Working Mode: Manual

Control Mode: LCD Screen

Warm Tips:

1. To avoid automatic pop-up, the magnetic machine's pressure should be adjusted to the minimum during transportation. The customer must increase the pressure before using it.

2. For sublimation on photoslate, ceramic tile, glass,you'd better make the printable surface be inverted to the workbench to make sure better sublimation finishing.

Packing Details:

Carton Case Package

Packing Size: 30.7in x 18.1in x 19.3in(78cm x 46cm x 49cm)

Gross Weight: 121 lbs (55 kg)

Set Time & Temperature

1.Press on the on / off switch located on the side of the heat press to be energized.

2.Press once on the "SET", screen show "SP" on the display. Press "▼"or "▲" to the desired temperature.

3.Press once again on "SET", screen show "St" on the display.Press "▼"or "▲" to the desired time.

4.Press "SET" for a few seconds after finish all setting to come out setting mode.

"COUNTER " means how many times you have pressed

If you want to clean this number to zero,press "RESSET" "▼" for a few seconds

5.Put objects when the machine has reached the desired temperature, close heating plates, waiting time.

6.When times up, machine will open automatic, take out printing items.

Application:

The Auto Open Heat Press Machine is widely used or transfer image for T-shirts, clothes, mouth pads, rock photos, tiles, backpack school bag, wallet bag, etc.
