1200mm 47" Roll-to-Roll Large Format Heat Transfer Machine for Making Samples (Oil-warming Machine)

Description

1200mm 47" Roll-to-Roll Large Format Heat Transfer Machine for Making Samples (Oil-warming Machine) is designed for roll to roll sublimation & heat transfer use, main application for Textiles, Furnishing, Fashion, Sportswear, Curtain, etc. Compared to other models, this one is more fashion, more suitable for mid-class factory use.

Features:

Constant temperature

1 infrared heating element

Easy feeding table

Easy access design for felt entry and release

3 x unwind + 3 x rewind

Drawer type piece finishing collection

Small packing to save shipping cost

Manual Felt-alignment Adjustment, Manual Felt- in/off

Specifications:

Specification

Model

HTM-FLRTR-1220P-T2B

Heating Type

Oil

Drum Diameter

200mm

Variable Working Speed

0 - 2.3m / min

Recommended Working Temp.

190-230℃

Alarm Temp.

250℃

Power Consumption

5.5KW

Power Requirement

230V,50/60Hz,1 phase

Machine Size

1870 x 870 x 1300mm

Shipping Dimensions

2000 x 870 x 1520mm

Weight (NW/GW)

620/700kg

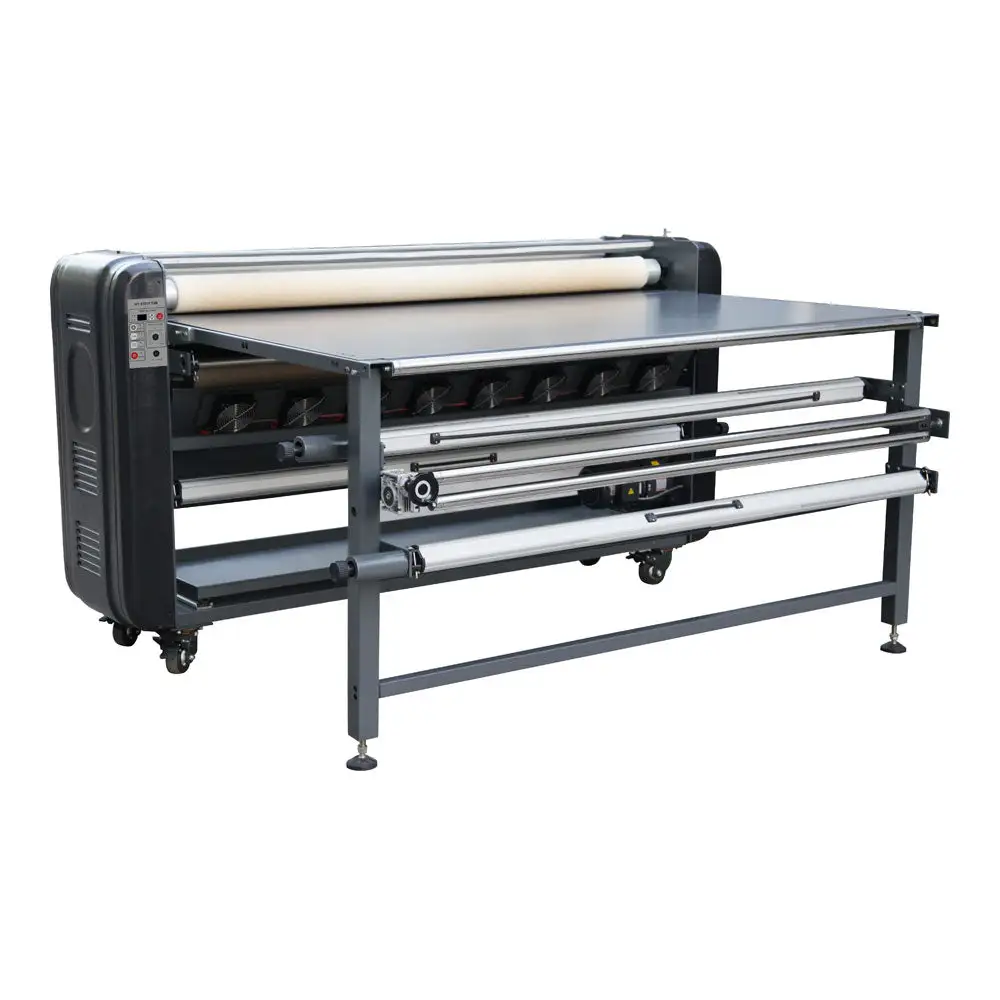

Front View:

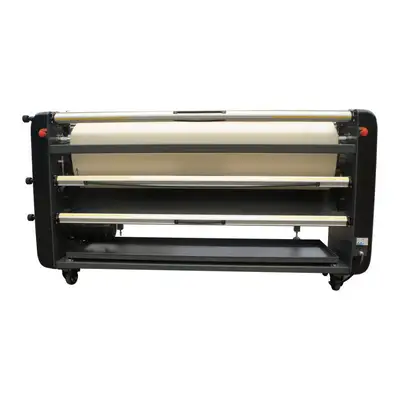

Rear View:

Working Principle:

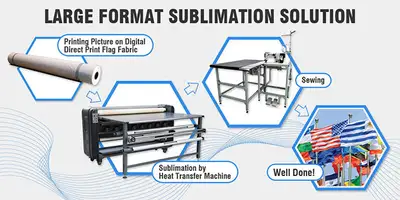

Applications:

1. Flag and Banners

2. T-shirts, Dresses and Sportwares

3. Home Textiles

4. Table Cloth & Display

5. Yoga Mat

6. Floor Mat

7. Mouse Pads

Unpacking:

Note: This is a schematic diagram. The quantity of bolts is based on the packing dimension

Caution: When moving the machine by forklift, must put the bottom frame of the machine on the forklift and people should protect the machine on both side. Be careful during transportation to prevent damage from falling off.
