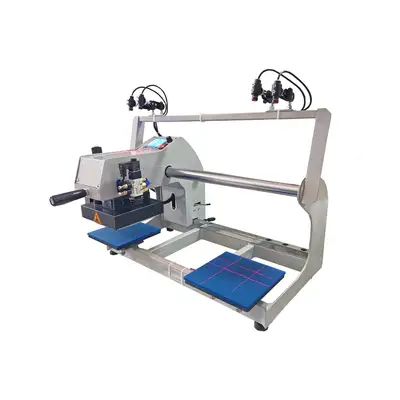

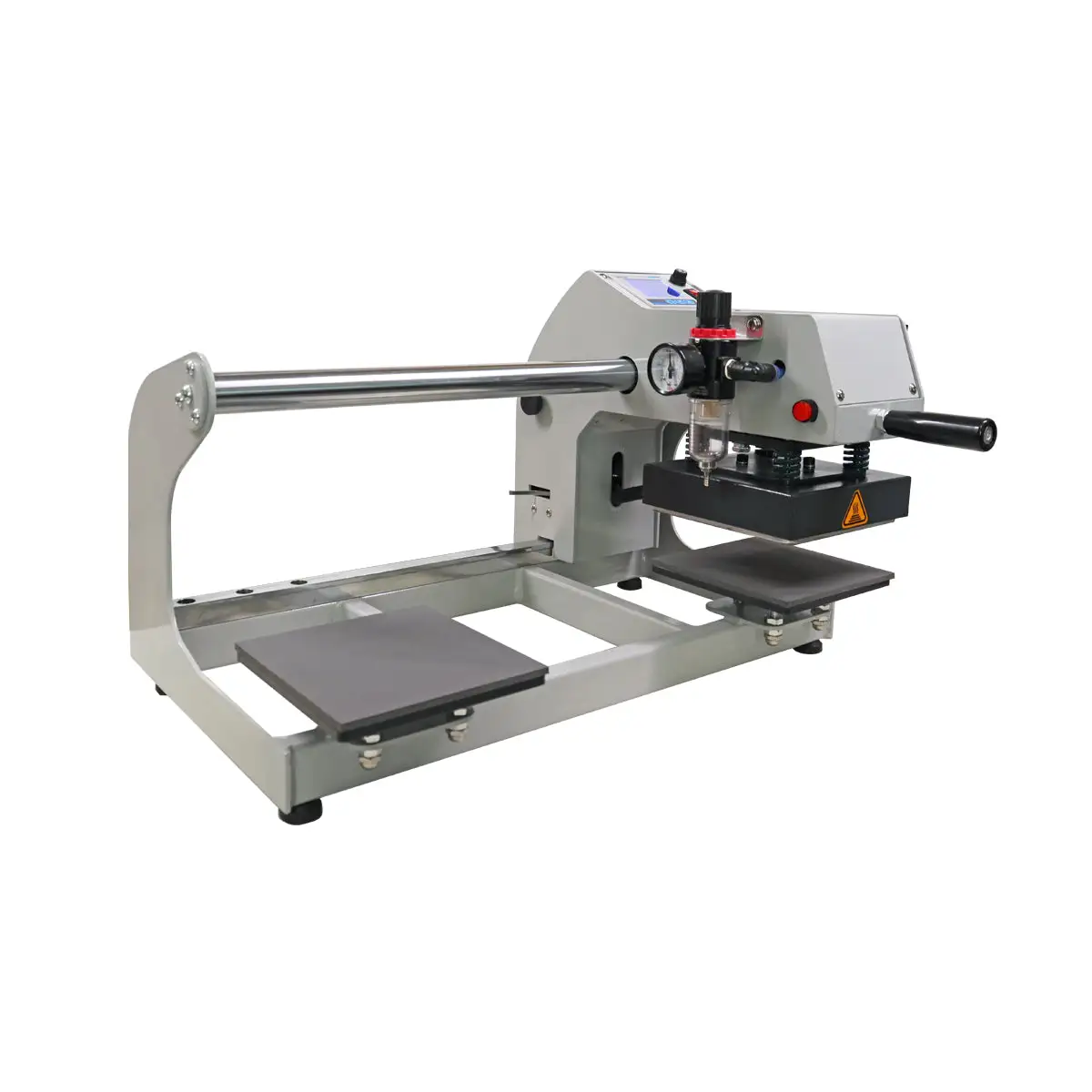

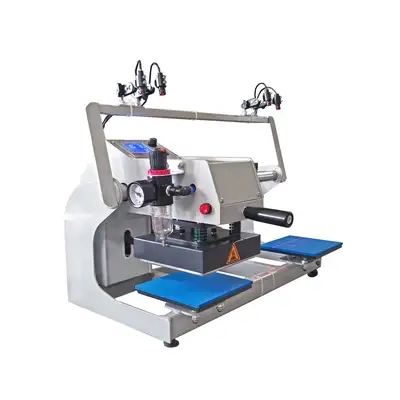

MEM 6" x 6" Semi-Automatic Pneumatic Double Station Heat Press with Laser Positioning System

Description

The design of the MEM double station presses combines a heavy-duty solid industrial grade pressing framework with high quality electric components. This provides the operator with the best possible features and equipment needed for today's various heat transfer applications.

Using the MEM TQ-1515 double station heat press, all common heat transfer processes (flock, flex, sublimation, transfer, Inkjet-­flex etc.) can be conducted professionally and with highest productivity. The desired settings can be set easily with the temperature controller. The

pneumatic pressure can be regulated smoothly with the air reducing valve. With the restriction valve on the solenoid valve, the press and lift speed could be adjusted.

Features:

1.Pneumatic double station transfer press for medium and large batches.

2.Pressure balancing system on heat plate and bottom plate.

3.Adjustable air pressure by air reducing valve with water separator.

4.CE certificated and RoHS certificated.

5.Lifetime factory on-line service.

Specifications:

Voltage and power: 220V (600W) or 110V (600W)

Check voltage at back side of the head

Time Range: 0-999sec.

Max. Temp.: 500°F /260°C

Heat plate size: 6"x 6"(15cm x 15cm)

Dimensions(LxWxH): 22"x17"x14"(54cm x 42cm x 36cm)

Shipping Dimensions(LxWxH): 25"x18"x16"(64cm x 45cm x 40cm)

Shipping Weight: 68lbs(31kg)

Max. press thickness:40mm
