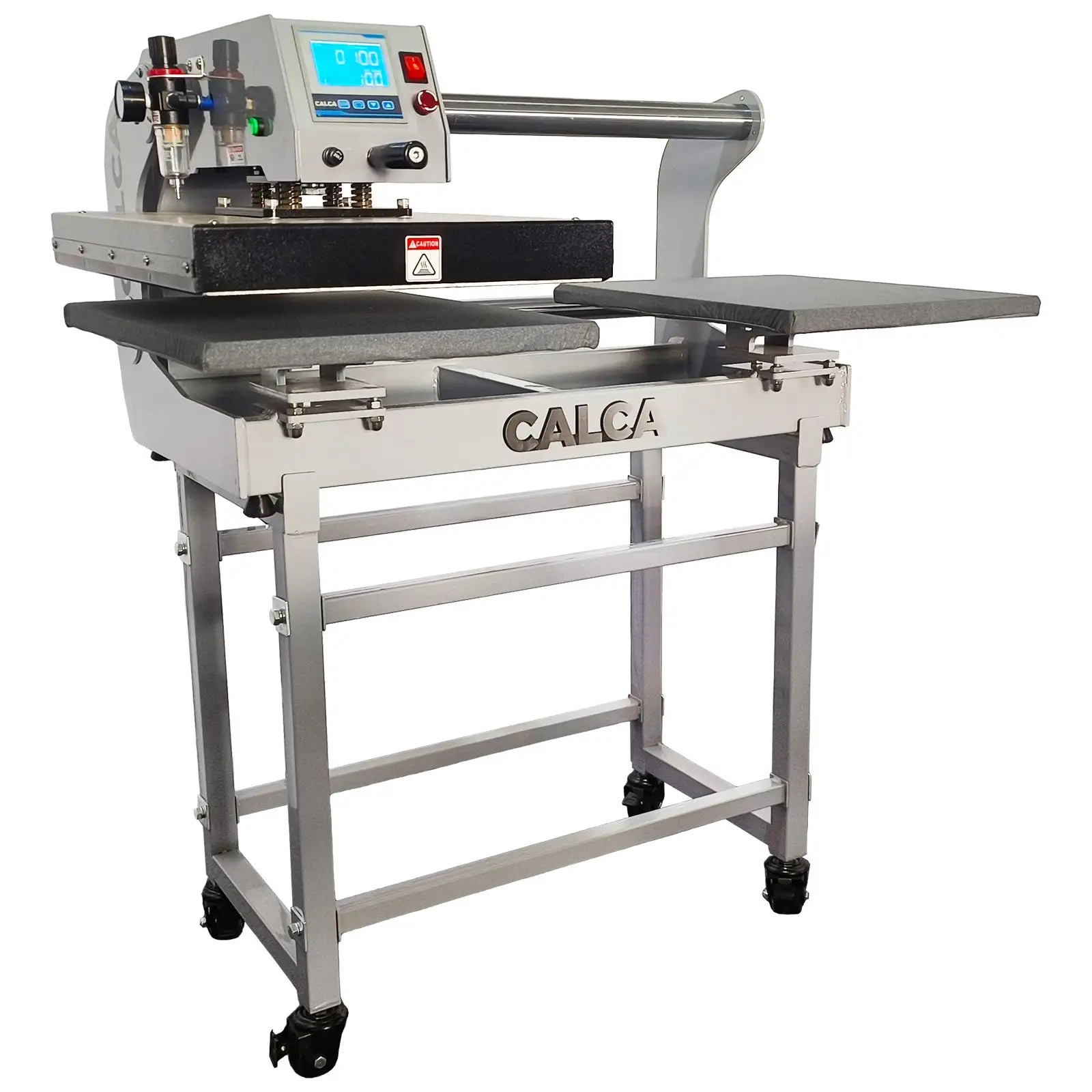

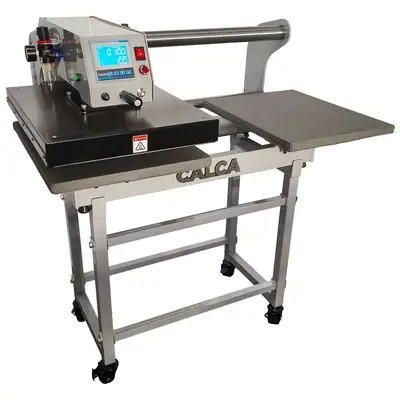

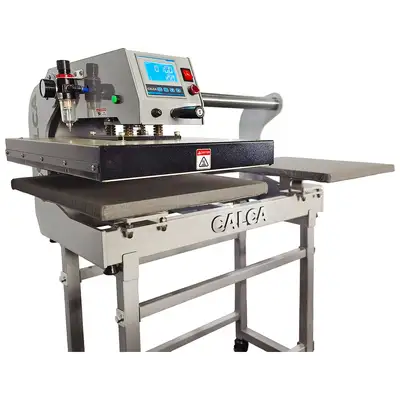

CALCA 16" x 20" Semi-Automatic Pneumatic Double Station Heat Press with Laser Positioning System

Description

The design of the CALCA double station presses combines a heavy -duty solid industrial grade pressing framework with high quality electric components. This provides the operator with the best possible features and equipment needed for today's various heat transfer applications.

Using the CALCA TQ -4050 double station heat press, all common heat transfer processes (flock, flex, sublimation, transfer, Inkjet - ­flex etc.) can be conducted professionally and with highes productivity. The desired settings can be set easily with the temperature controller. The pneumatic pressure can be regulated smoothly with the air reducing valve. With the restriction valve on the solenoid valve, the press and lift speed could be adjusted.

Features

Pneumatic double station transfer press for medium and large batches.

Pressure balancing system on heat plate and bottom plate.

Operates in semi-automatic or manual modes.

Adjustable air pressure by air reducing valve with water separator.

Two-hand operation for safety use.

CE certificated and RoHS certificated.

Powered by an air compressor (not included)

Includes teflon sheet on the heat palte.

Table and bottom stand included.

Laser Positioning System included.

Lifetime factory on-line service.

Specifications:

Voltage and power: 220V/2700W/13A or 110V /1800W/17A

Check voltage at back side of the head

Time Range: 0-999sec.

Max. Temp. 500°F /260°C

Heat plate size: 16"x 20"(40cm x 50cm)

Dimensions(LxWxH): 41"x27"x46"(105cm x 69cm x 117cm)

Shipping Dimensions(LxWxH): 49"x31"x25"(123cm x 77cm x 65 cm)

Shipping Weight: 320lbs(145kg)
