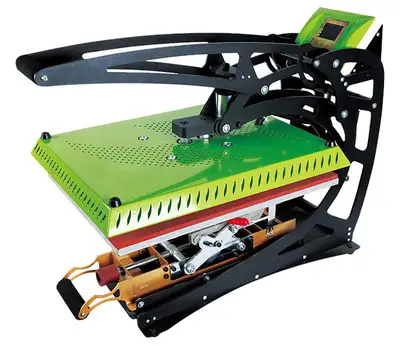

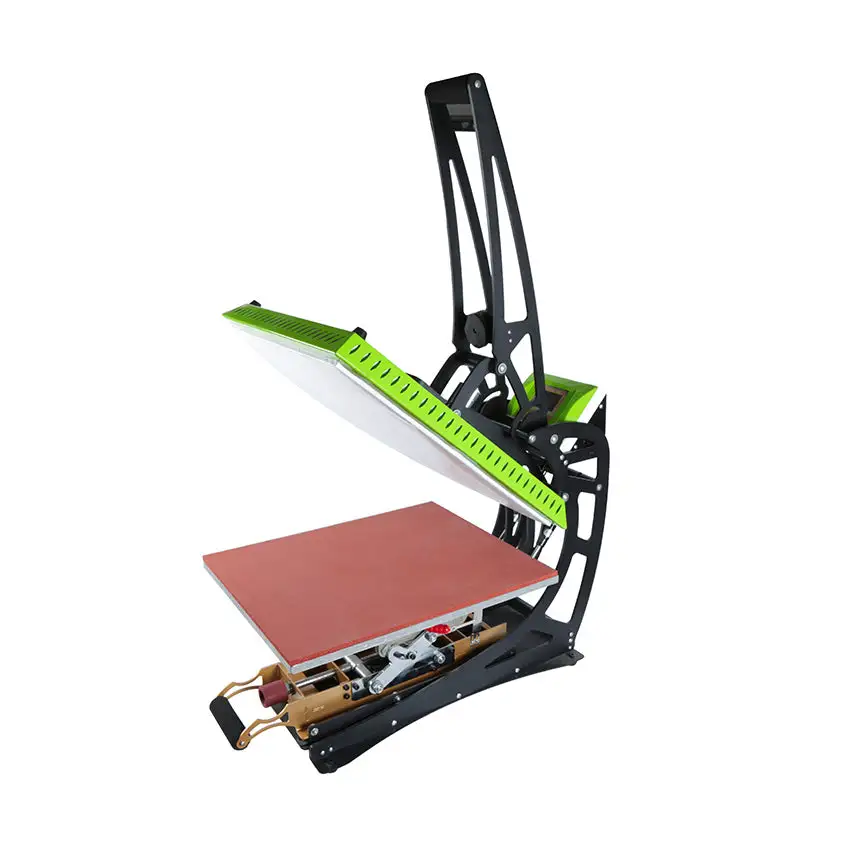

Auto-Open Series Mi2 Auto Open Clam/Hover Press

Description

The heat press is equipped with a manual override, a digital display, and a sound signal at the end of work. Designed for printing textiles and other materials, The machine may be used on t-shirts, mouse pads, puzzles, ceramic tiles, and other flat surfaces items by using the flex, flocking, transfer printing paper, sublimation etc.

Gap for DTG curing, specially designed for curing inks on DTG printed t-shirts.

The upper platen curing over the garment to ensure bringhter color and a stronger bond between ink and the garment. With this technology, you never have to worry about direct-to-garment ink residue on your platen.

Specifications

Power supply:110V,60hz,1800W,17A/220V,50hz,2600W,12A

Standard platen: 16" x 20" (40 x 50cm)

Custom platen: optional

Temperature control range: room temp – 450F° (232C°)

Timer: 0-999s

Manual hover range: 0-2" ( 0-5.1cm)

Packing: carton with inner styrofoam

Package: 33" x 25.2" x 22.4" (84 x 64 x 57cm)

Gross weight: 119lbs (54kg)

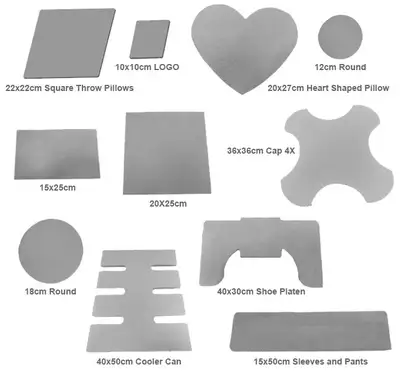

(optional custom interchangeable lower platen)

1. 8-3/4" (22 x 22cm) square throw pillows

2. 4" x 4" (10 x 10cm) LOGO

3. 8" x 12-3/4" (20 x 27cm) heart shaped pillow

4. 4-3/4" (12cm) round

5. 6" x 10" (15 x 25cm)

6. 8" x 10" (20 x 25cm)

7. 14-1/5" (36 x 36cm) Cap 4X

8. 7" (18cm) round

9. 16" x 20" (40 x 50cm) cooler can

10.16" x 12" (40 x 30cm) shoe platen

11. 6" x 20" (15 x 50cm) sleeves and pants

Features:

High pressure up to 0.18 kg/cm2 or 2.40PSI at standard lower platen 16in x 20in PSI

or 2.00 kg/cm2 or 15.3 PSI for Φ15cm or 8in round platen

Floating heater to ensure pressure even distribution

Coated heater

Odorless high temperature silicon pad

Auto open with cycle alarm

Emergency release with over ride button

Double heater shell for operation safety and energy efficiency

Drawer slide out for easy load

Custom optional platen

Take 5-sec to change lower interchangeable platen for the most jobs

Manual hover to work with DTG, screen print as dryer

Double handle design to facilitate petites

LCD display
