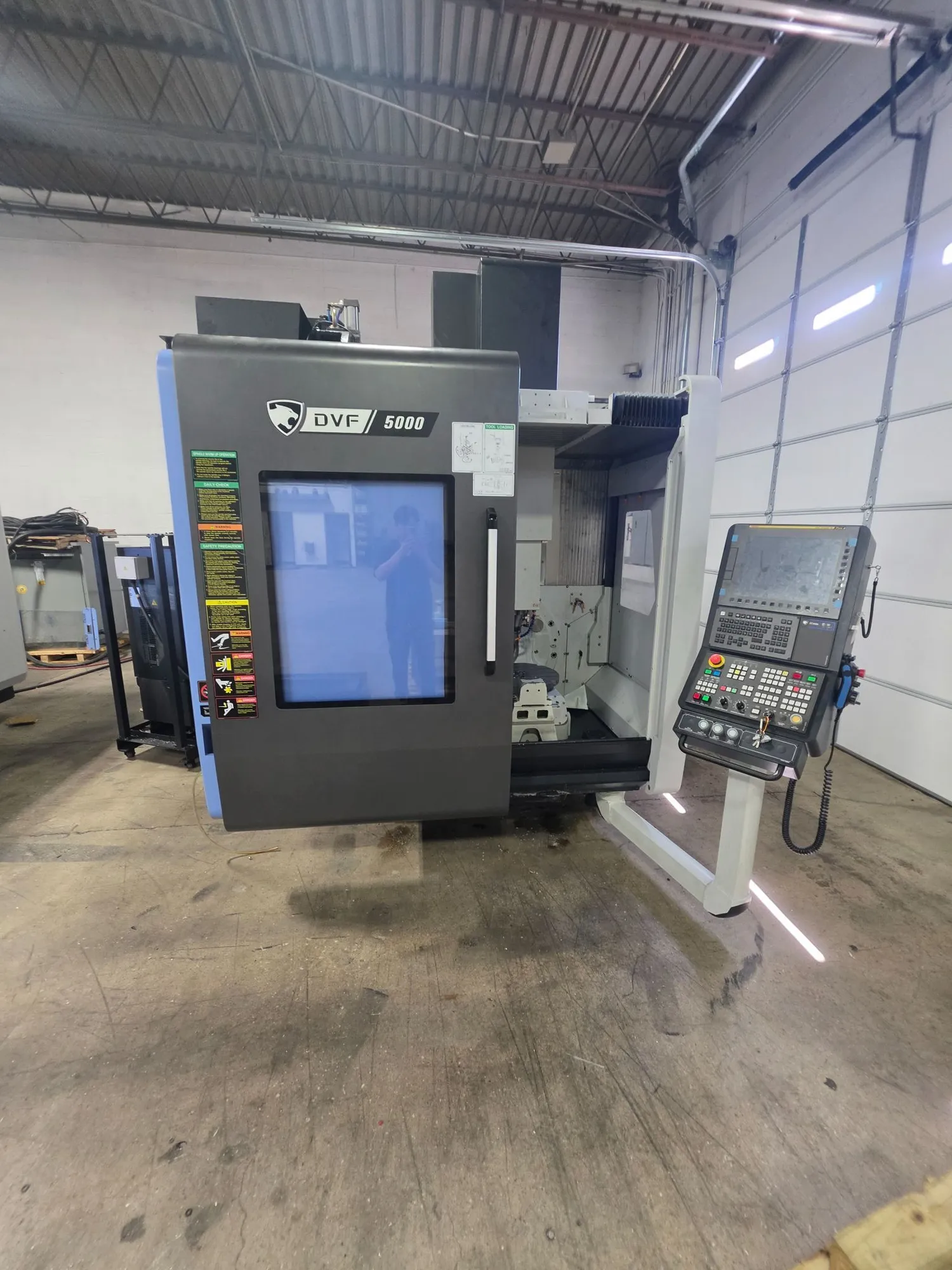

USED 2024 DN SOLUTIONS DVF 5000
Overview
The DVF 5000 a High Productivity 5-Axis Simultaneous Vertical Machining Center designed to machine complex work pieces with high precision and speed. The 18,000-rpm built-in spindle gives superior performance in virtually any machining application. The travelling column machine structure provides uniform load to all linear machine axes allowing for a highly rigid and stable platform for your most demanding machining processes.
Specs
CAPACITY:
X axis travel 625 mm (24.6")
Y axis travel 450 mm (17.71")
Z axis travel 400 mm (15.74")
B axis travel +110 deg \ -30 deg
C axis travel 360 deg
Table Size (Diameter) 500 mm (19.68")
Max Work Piece Diameter 550 mm (21.65")
Max Work Piece Height 450 mm (17.716")
Max Table Load 400 kg (882 lbs)
SPINDLE:
Spindle nose to table top (Without AWC) 150 mm to 550 mm (5.9" to 21.65")
Big plus Spindle system CAT 40 Big Plus
Spindle speed 18,000 rpm
AC Spindle Motor (S3 15%) 18.5 / 22 kW (24.8 / 29.5 hp)
Spindle Torque (S3 15%) 118 nm (87.1 ft-lbs)
Spindle Acceleration \ Deceleration time 0 - 18k (2.8 sec) \ 18k - 0 (1.9 sec)
Machine Height 2,890 mm (114")
Floor Space Required (L x W) 2,900 mm x 2,205 mm (114" x 87")
Machine Weight 7,500 kg (16,534 lbs)
UTILITY:
Power required 65 kVA / 170.78 amps @ 220v
Voltage required - Fanuc 205-235 Volts / 3 Phase
Equipped With
* Fanuc F31i-B5 Control
5 Simultaneously controlled axes (X,Y,Z,B,C) with high precision, absolute rotary encoders on B and C
axes and absolute glass scales on XYZ axes
* Through spindle coolant, Air through spindle
* Chip Conveyor
* 120 Position Tool Changer
* Broken Tool Detection
Two Identical Machines Available
BOTH COME WITH A 6 MONTH PARTS WARANTY FROM DN SOLUTIONS. MACHINES HAVE BEEN SERVICED AND GONE THROUGH BY DN SOLUTIONS. MACHINES WLL BE PREPPED BY DN SOLUTIONS AND ARE READY TO SHIP
