USED 1994 ZIERSCH & BALTRUSCH FORMASTER 50/100

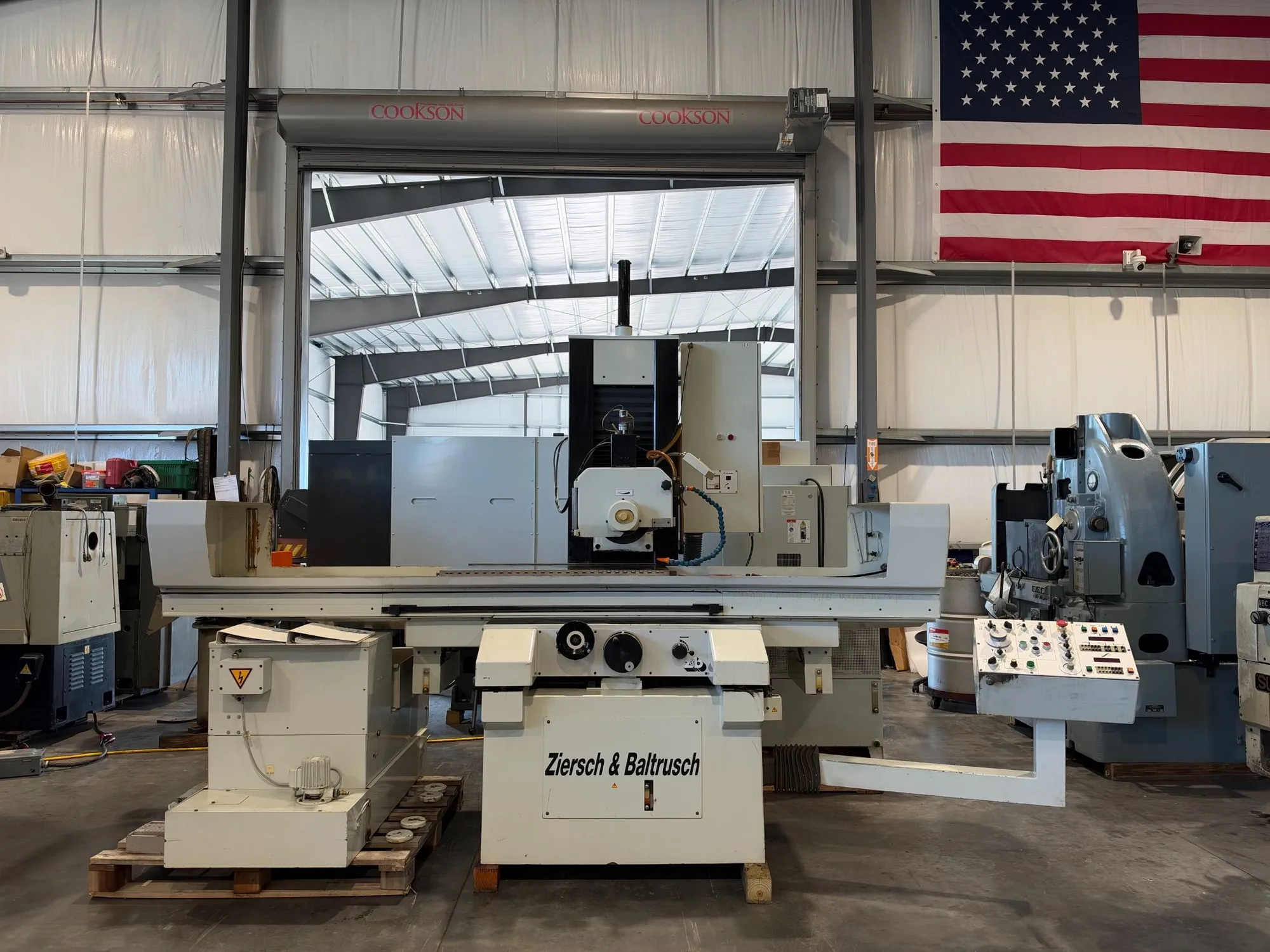

ZIERSCH & BALTRUSCH FORMASTER 50/100 20” x 40” High Precision Surface Grinder #8519
Reference # 8519
Model # FORMASTER 50/100
Serial # 51BD83
Year of manufacture- 1994’
Grinding capacity- 19.68” x 39.37” / 500 mm x 1000 mm
Max distance from table to spindle center- 27.55”
Longitudinal table travel- 48.81” / 1240mm
Table speed- 6.56” – 114.82” Feet per minute / 2 – 35 Meters / Min
Cross table travel- 20.07” / 510 mm
Cross handwheel adjustment- 0.001”
Cross handwheel fine adjustment- 0.00001”
Cross feed variable Step- 0.001” – 1.57”
Cross feed variable Continuous- .39” – 39.37”
Cross Rapids traverse- 39.37”
Vertical down feed- 0.000039” – 0.0038”
Vertical rapid traverse- 1.96 I.P.M.
