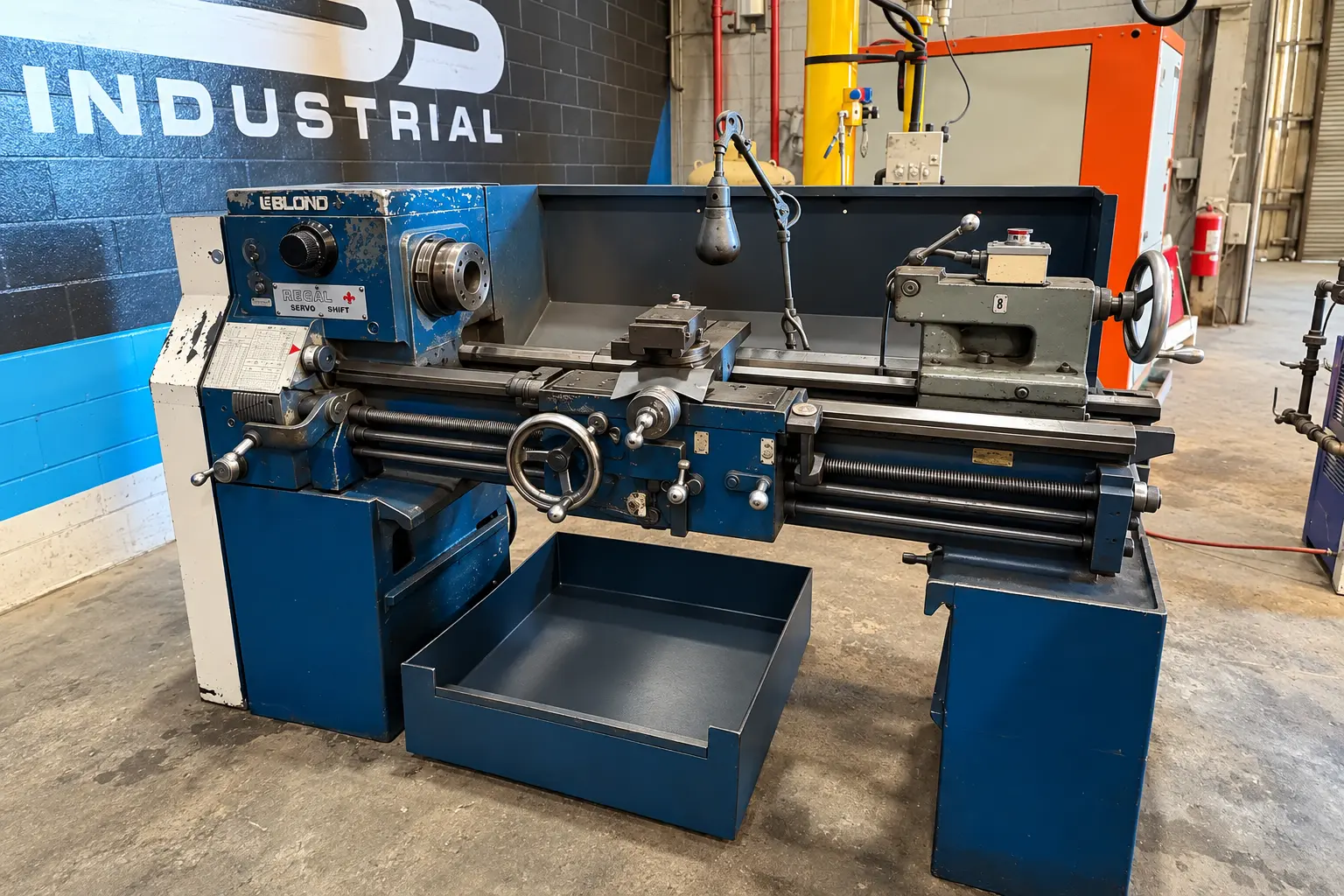

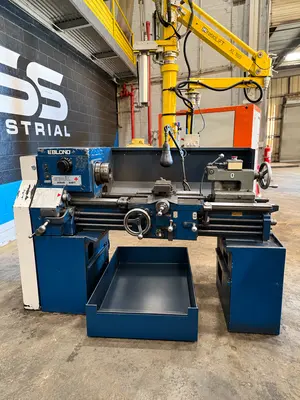

USED LEBLOND REGAL SERVO SHIFT

SPECS:
Swing over bed 15-1/2"
Swing over cross slide 9-1/2"
Distance between centers 30" or 54", depending on bed
Spindle nose L-1
Spindle through-hole 2-17/64"
Spindle speeds 12 speeds
Spindle speed range 45–1,800 RPM
Longitudinal feeds 0.0018–0.104 inches/revolution
English threading 2–112 TPI
Metric threading 0.25–14 mm
Tailstock spindle travel 5"
Tailstock taper Morse #4
Motor horsepower 5–7.5 HP on documented examples
Approximate weight 3,000–3,300 lbs on documented examples
MANUFACTURER: LEBLOND
• MODEL: REGAL SERVO SHIFT
• TYPE: MANUAL ENGINE LATHE

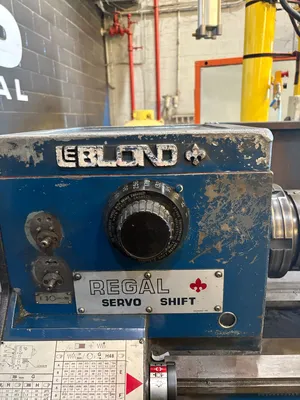

• SERVO SHIFT SPINDLE SPEED CONTROL
• QUICK-CHANGE FEED AND THREADING GEARBOX

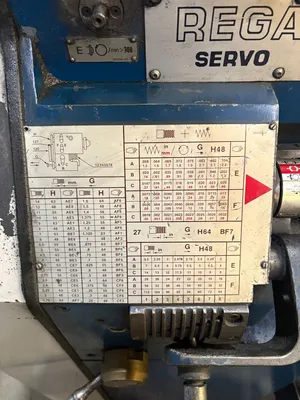

• INCH AND METRIC THREADING CHART

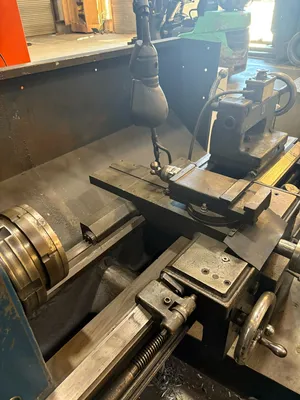

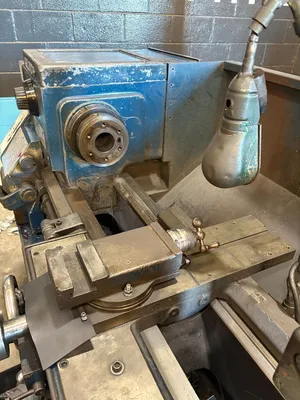

• EQUIPPED WITH CROSS SLIDE AND COMPOUND REST
• EQUIPPED WITH TAILSTOCK

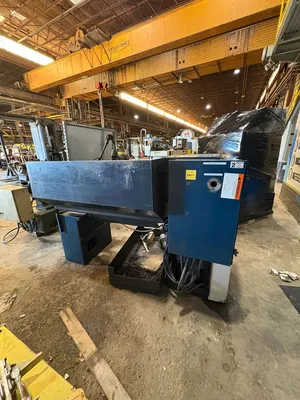

• EQUIPPED WITH CHIP PAN AND SPLASH GUARD

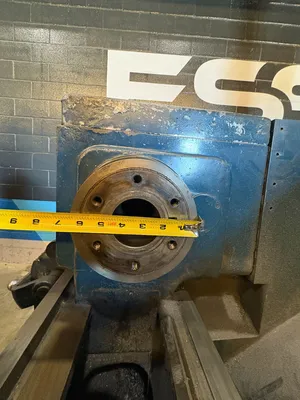

• SPINDLE NOSE PRESENT
• ELECTRICAL: 480V MARKED ON MACHINE
• USED INDUSTRIAL SURPLUS CONDITION
• SHOWS COSMETIC WEAR, PAINT LOSS, AND SIGNS OF PREVIOUS INDUSTRIAL USE
• OPERATING CONDITION HAS NOT BEEN VERIFIED

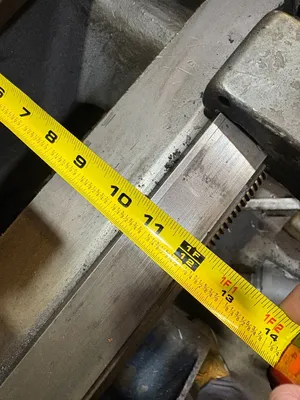

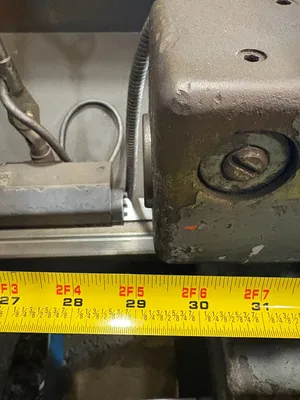

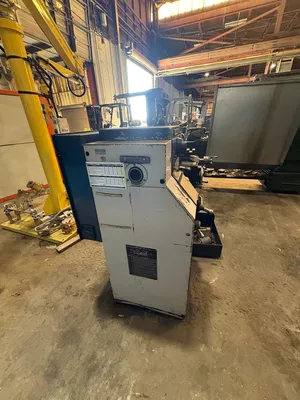

• SEE PHOTOS FOR DETAILS AND INCLUDED COMPONENTS
Used LEBLOND Regal Servo Shift CNC and metalworking equipment. A professional-grade addition to your workshop.
