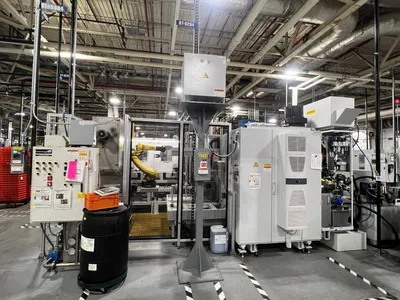

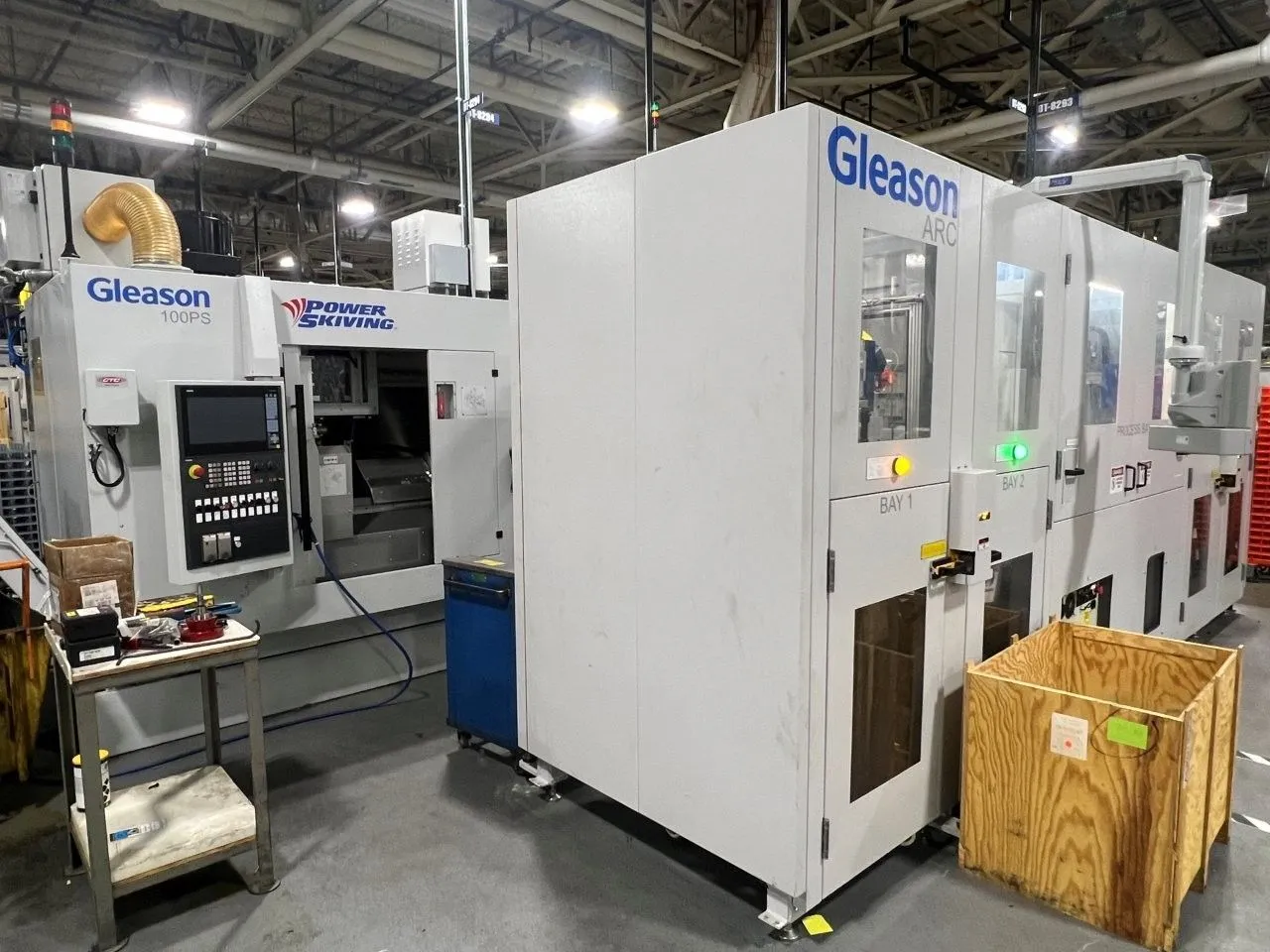

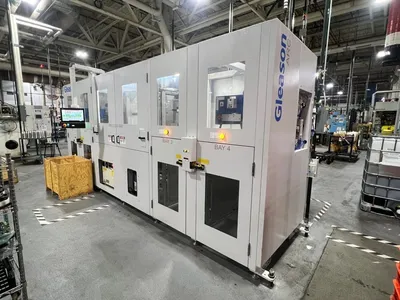

USED 2024 GLEASON 100PSDT
Overview

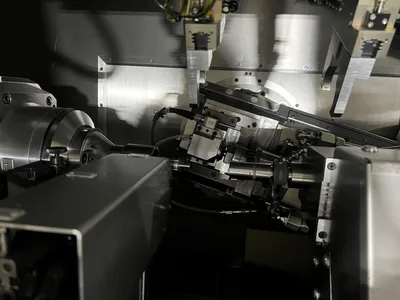

For Power Skiving of shaft-and-wheel-type workpieces with all kinds of profile or form equally spaced on the cylindrical workpiece circumference, inclusive single and multi-start worms
Specs
Specifications (technical data):
Maximum Workpiece Diameter, External Gear: 100 mm
Maximum Face Width, External Gear: 300 mm
Maximum Workpiece Diameter, Internal Gear: 150 mm
Maximum Face Width, Internal Gear: 50 mm
Nominal Module, Approximate: 2.0 mm
Minimum/Maximum Distance Between Index Spindle and Tailstock
Center: 160/520 mm
Minimum/Maximum Axis Distance: 10 - 100 mm
Maximum Skiving Tool Diameter: 140 mm
Tangential Axis Travel (Y-Axis): 80 mm

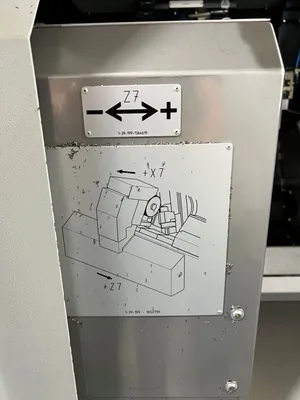

Axial Axis Travel (Z-Axis): 400 mm
**The above mentioned travel of slides and angles might need to be modified depending
on the specific workpiece and tool dimensions, gear data and workpiece related equipment.
Tool Speed Range: 8,400 RPM
Maximum Work Table Speed: 4,200 RPM
Maximum Feed and Rapid Traverses:
-Axial: 15,000 mm/min
-Radial: 7,500 mm/min
-Tangential: 5,000 mm/min
Equipped With

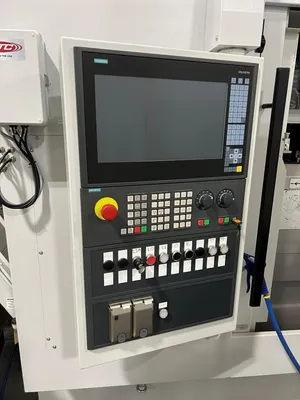

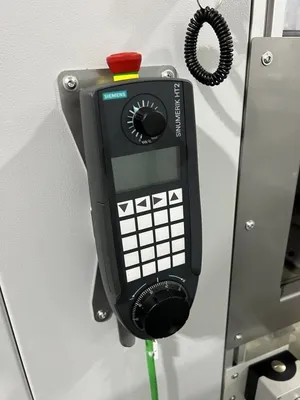

Siemens Sinumerik 840D Sl 1B Control
Quick Clamping Device for Skive Arbors
Tailstock W/NC Axis
Hydraulic System
Lubrication System
Hob Cooling and Lubrication
Oil Spin Off Cycle
Software Extension for Z-Z Corrections
Software Extension for C-Z Corrections
Remote Diagnostics: Internet Diagnostic System/Port
Automatic Loading
Wet Process
Counter Bearing Cylindrical
Power Clamping Base
Magnetic Chip Conveyor
Safety Retraction
Integrated 2-Axis Unit
Magnetic Filter Unit

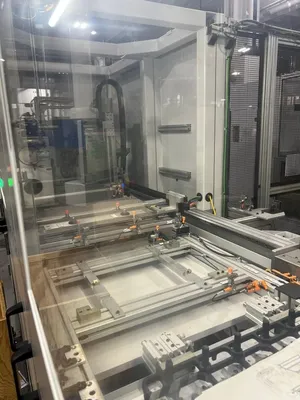

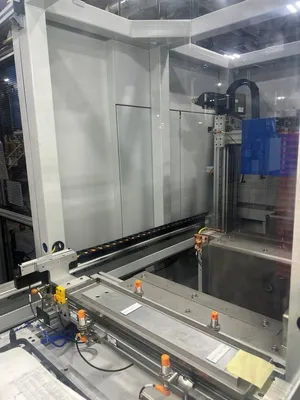

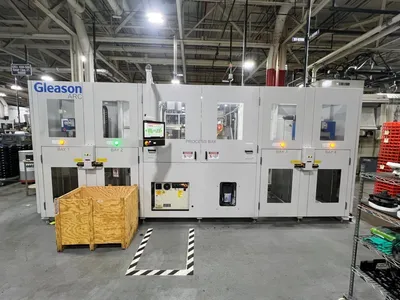

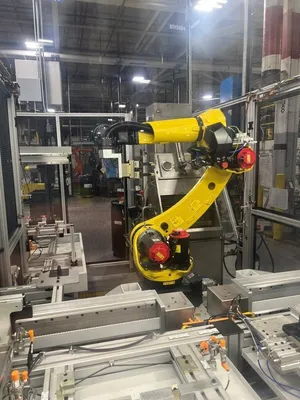

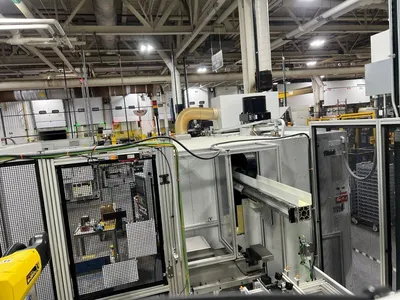

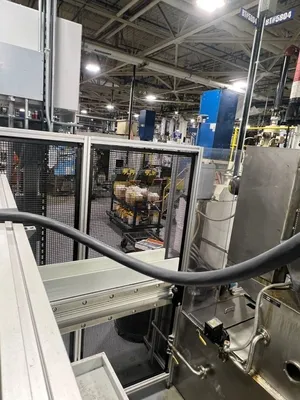

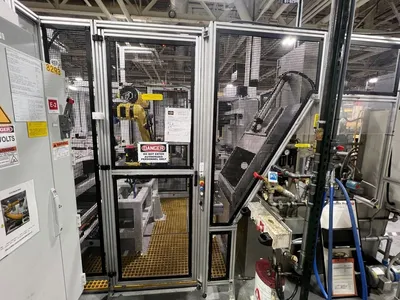

Automation:

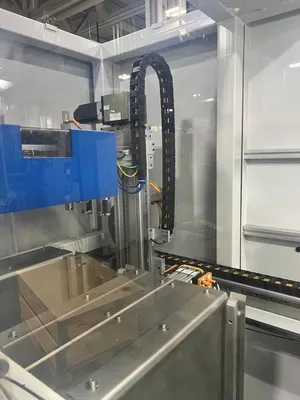

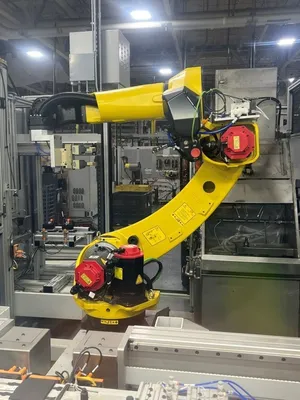

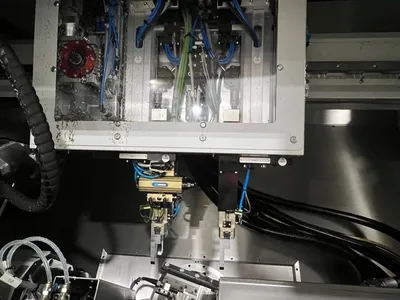

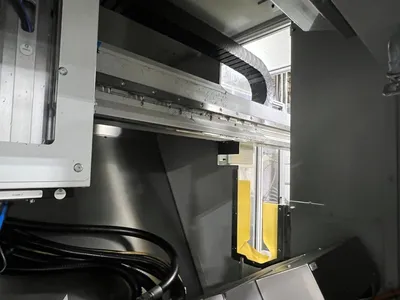

-Loading Portal LP-H, One Arm W/Rotating Gripper
-Safety Protection Guards 1200

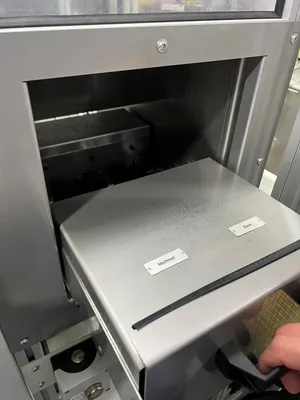

-Base For Workpiece Magazines
-Adjustable Loading Rail
-Belt Conveyor W/Workpiece
Workholding/ Cutting Tools:
-Power Skive-Arbor
-Equipment for Tool Assembly
