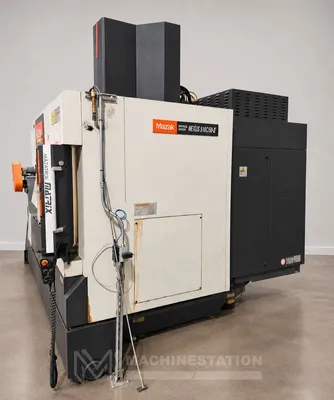

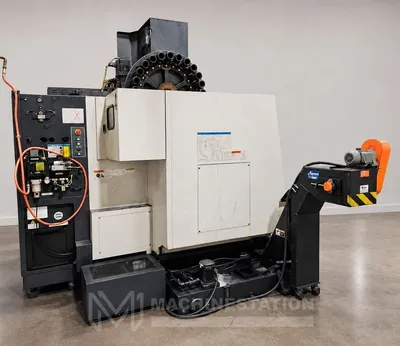

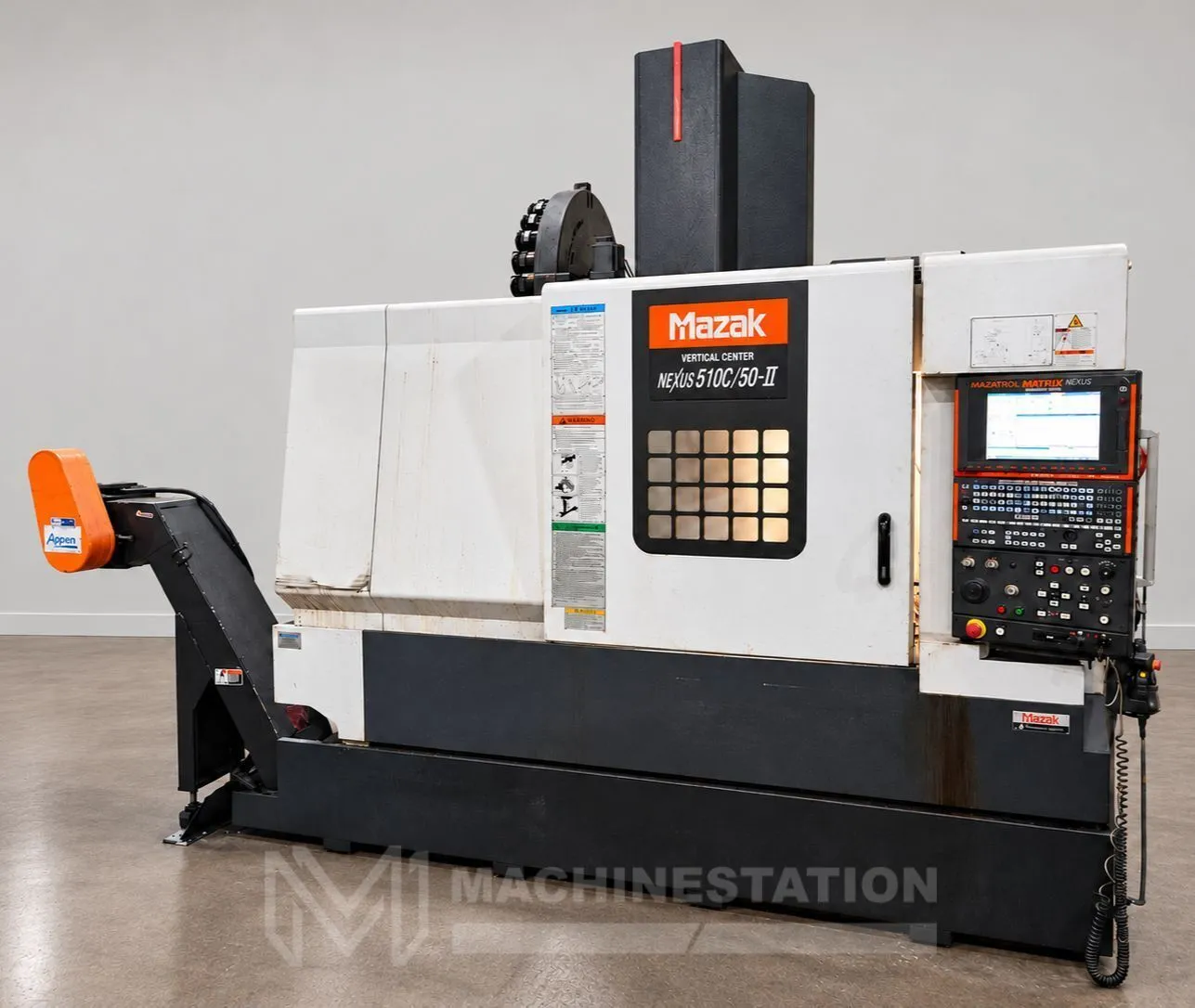

USED 2007 MAZAK NEXUS VCN 510C/50-II

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

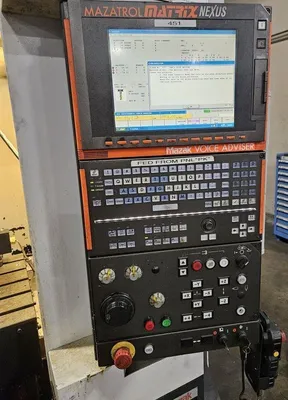

Mazatrol Matrix Nexus CNC Control
30 HP High Torque Spindle
Rigid Tapping
Coolant Tank
Note: 4th Axis Rotary Table Is Not Included with The Machine

Travels:
X-Axis: 41.3 inch
Y-Axis: 20.8 inch
Z-Axis: 20.8 inch
Rapid Traverse Rates Axis: 1417 IPM
Cutting Feed Rates: 787 IPM
Spindle Nose to Table (Min.- Max.): 5.9 inch – 26 inch

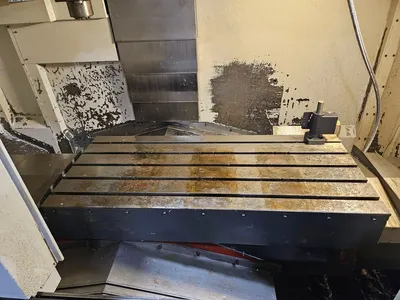

Table:
Length: 51.18 inch
Width: 21.65 inch
Number of Std T-Slots: 5
T-Slot Width: 5/8 inch
Max Weight on Table: 2646 lbs

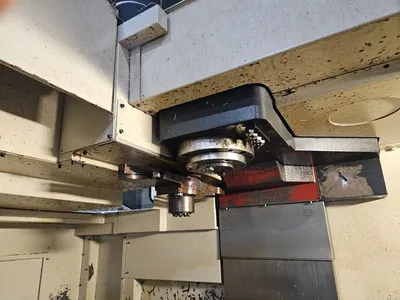

Spindle:
Taper Size: CAT-50
Speed Range: 6,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Max Tool Weight: 13.78 lbs
Max Tool Dia: 4.33 inch
Max Tool Length: 13.78 inch
Tool Changing Time : 1.3 Seconds

General:
Air Required: 80 psi, 4 scfm

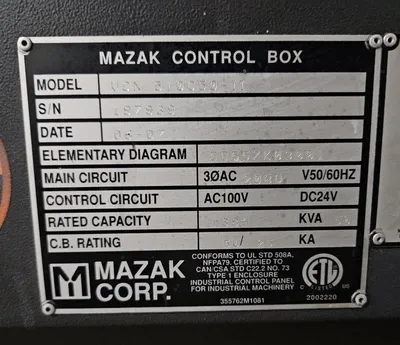

Power: 220v / 50 kva / 3-Phase
Overall Dimensions: 120 inch x 112 inch x 114 inch High
Weight: 15,500 lbs Approx.
