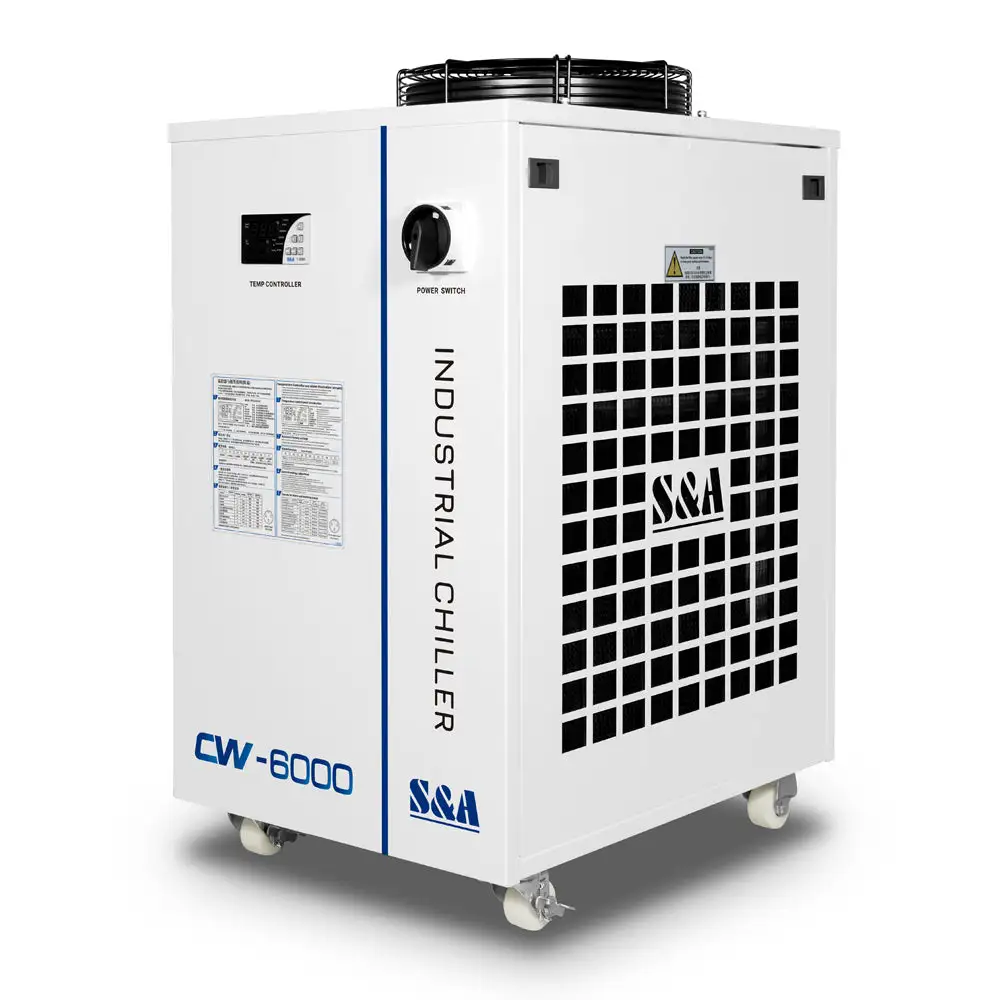

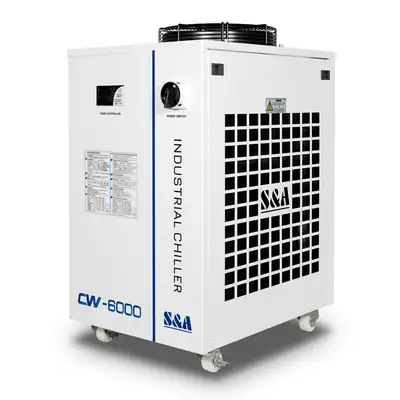

S&A CW-6000BN Industrial Water Chiller for 100W Solid-state Laser, 22KW CNC Spindle, 30W-300W Fiber Laser Cooling, AC 1P 220V, 60Hz

Description

S&A CW-6000 series is high-precision compression refrigeration Water Chiller, with intelligent temperature control,completed configuration,perfect protection and alarm system.

S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature to avoid producing condensate water and protect the laser tube.You can adjust the water temperature under constant temperature.

Suggestion:

Intelligent temperature control mode for summer

Constant temperature control mode for winter

Note: cooling water additive is forbidden by express company, so we could not put it into the package. You can buy it from local.

Features:

3000W cooling capacity; optional environmental refrigerant;

±0.5°C precisely temperature control;

The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

Multiple power specifications; CE ,RoHS and REACH approval;

Long working life and simple operation;

Optional heater and water filter.

SPECIFICATION

Model

CW-6000BNTY

Power Supply

AC 1P 220~240V, 60Hz

Current

2.1~8.2A

Max. power consumption

1.57kW

Compressor power

1.08kW

1.44HP

Refrigerating Capacity

10717Btu/h

3.14kW

2700Kcal/h

Refrigerant

R-410a

Refrigerant Charge

750g

Precision

±0.5℃

Tank Capacity

14 L

Reducer

Capillary

Protection

Over current protection for compressor, flow alarm, over temperature alarm

Pump Power

0.37KW

Max.flow

75L/min

Max. pump pressure

27M

Inlet and Outlet

Rp1/2"

Net Weight

54Kgs(119lb)

Gross Weight

65Kgs(143.3lb)

Product Dimension

26.4" x 18.5" x 35" (670 x 470 x 890mm)

Package dimension

29" x 22.4" x 41" (730 x 570 x 1050 mm)
