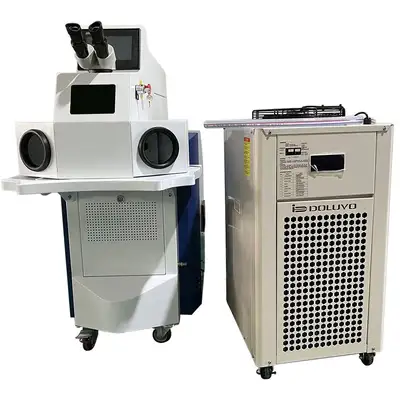

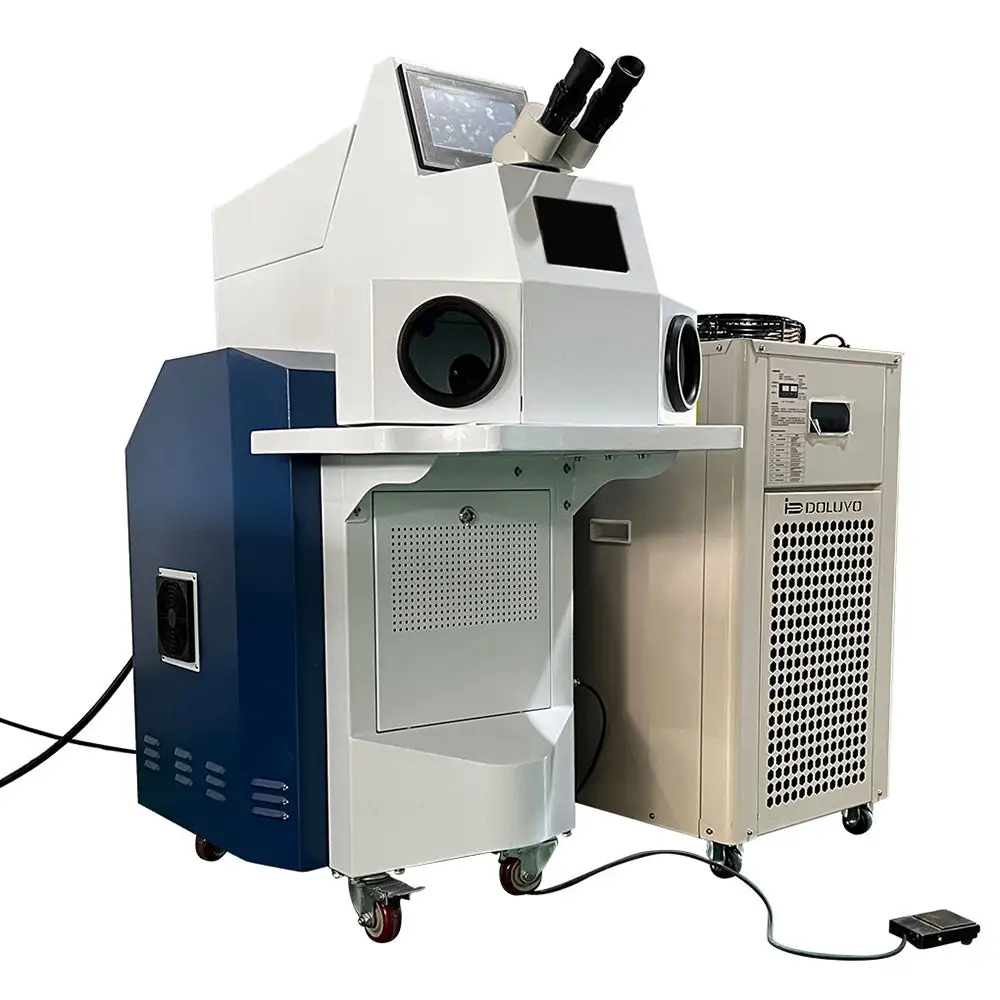

CALCA 200W Laser Spot Welding Machine + Industrial Water Chiller for Metal Gold Silver Jewelry(60 Joules)

Features:

1.Energy, pulse width, frequency and focus can be adjusted within a wide range to achieve different welding effects

2.Ceramic reflector used in the laser pump chamber is imported, which is corrosion resistant, high temperature resistant, high electrical/optical conversion.

3.World-leading automatic light shielding system is employed to remove harmful lighting on eyes during operation

4.24-hour continuous operation, with stable operating performance

5.Free of maintenance within 10000 hours

6.Personalized design in compliance with ergonomics principles

Application:

CY-W series laser welding machine is specially designed for spot welding, perforating, repairing, retipping and resizing of gold/silver/titanium/platinum jewelries, stone caging and gap bridging of small accessories. It is also widely used in aviation, aerospace, sports products, eyewear frames, medical instruments, titanium alloy denture, instruments, electronics, machinery, automobile, etc. Applicable materials are various: gold, silver, steel, copper, aluminum, titanium, brass, etc.

Specification

Model No.

CY-W200

Microscope Ratio

10X

Laser source

Nd3+: YAG

Focus Length

100mm

Laser wavelength

1064nm

Power Supply

Single phase AC 220V

Pulse frequency

1-50HZ adjustable

Power consumption

6Kw

Single pulse Energy

60J

Control panel

color LED touch screen, English

Pulse duration

1.5~20ms adjustable

Running Environment

Temperature 5℃~30℃, humidity < 85%.

Rated Laser Power

200W

Continuous Working Time

24Hours

Cover Gas Channel

1 line quick connection

Shield Gas Connection

1 line quick connection (argon)

Focused Beam Diameter

0.3-3mm

After-sales service

Sending accessories

Expanding Ratio

3X

Warranty

12months

Package

fumigation-free wooden case

Sending technicians if necessary

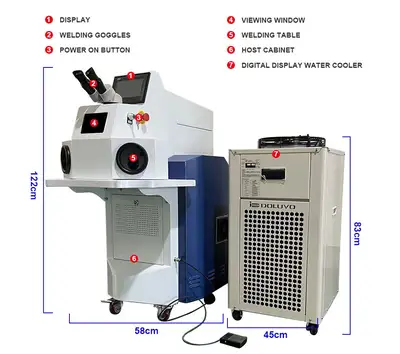

Outter Dimensions

43.3"*27.6"*55.5"+31.5"*23.6"*39"(1100*700*1410mm+800*600*990mm)

Weight

286lb+110lb(130kg+50kg)

Packing size

26"*22"*40"+41.7"*27.6"*55.1"(660*560*1020mm+1060*700*1400mm)

Packing weight

272.8lb+220lb(124kg+100kg)
