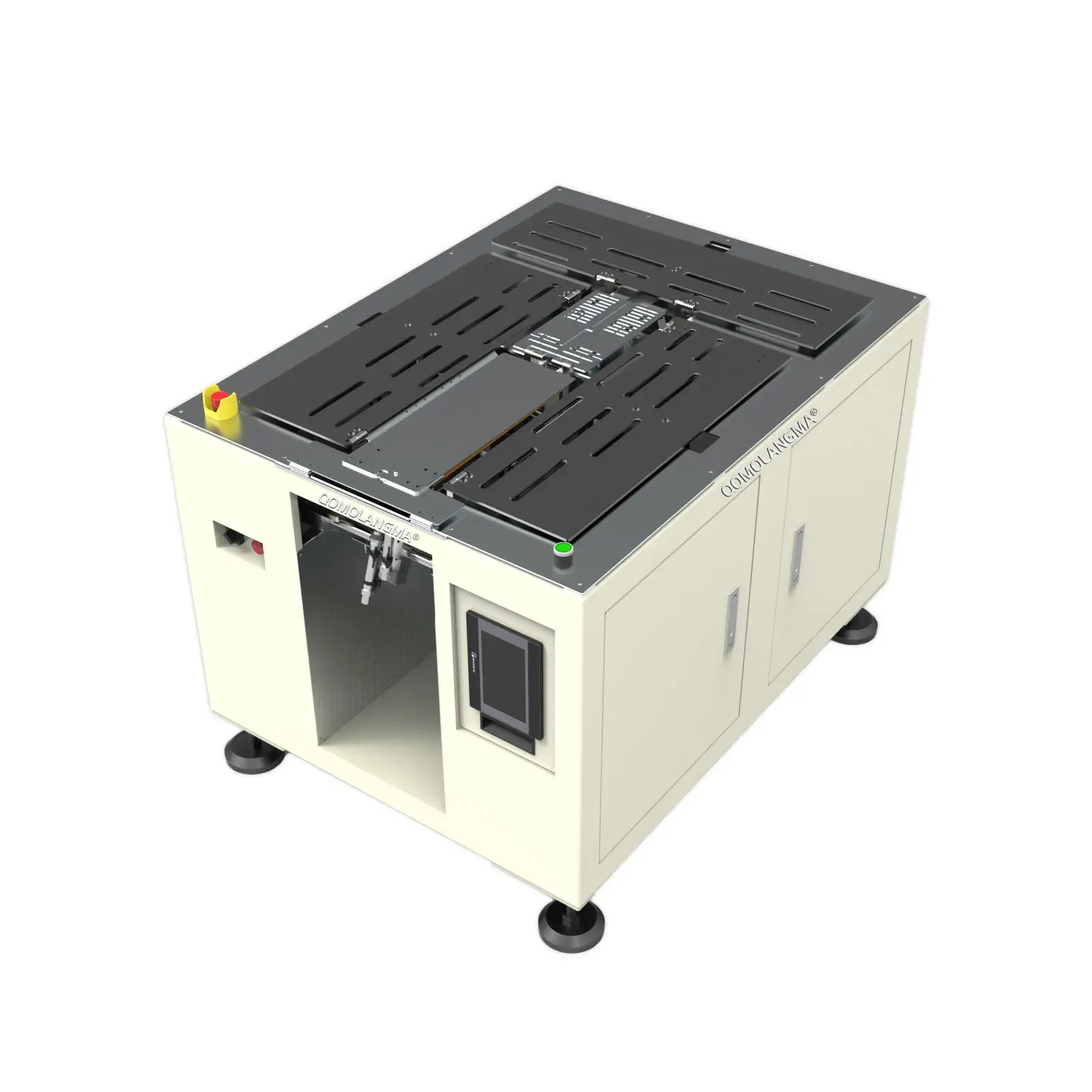

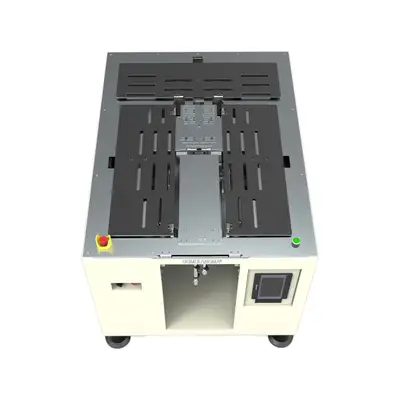

Qomolangma Semi-Auto Garment Folding & Packaging Machine Clothes Stacking + Bagging System for Retail/Laundry

Description

The automatic folding machine ST3438 folds clothes quickly, silently and with precision, It functions independently and requires 1 operator. It is designed to fold t-shirts, sweatshirts, sweaters, undershirts, etc. It can be very easily adjusted for the various sizes and types of clothes so that the best-desired folding is achieved.

The ST3438, apart from the automatic folding, offers two important options after the garment has been folded:

The first option is a program for stacking and easy gathering of the folded clothes.

The second option is a program for easy packaging of the garment in a bag.

Specifications

Name

Automatic Clothes Folding Machine-ST3438

Model

DTF-FPM-ST3438

Input voltge

AC110V, 60Hz

Power

200W, 1.8A

Use air pressure Mpa

0.5-0.7

Air source displacement

150L/min

Length range before folding

400-950mm (15.8" - 37.4")

Width range before folding

320-850mm (12.6" - 33.5")

Folded length range

200-370mm (7.9" - 14.6")

Width after folding

220-320mm (8.7" - 12.6")

Dimensions

1160 x 880 x 800mm(44.7" x 34.7" x 31.5")

Net weight

257KG(566.6lb)

Packaging Size

1270 x 980 x 980mm (50" x 38.6" x 38.6")

Gross Weight

326KG(718.7lb)

Features

1. Compact Design: Does not take up too much use space.

2. User-Friendly Operation: Equipped with a 7-inch touchscreen.

3. High Efficiency Folding: Operated by just one person, it can fold up to 2,500 garments in 8-hour.

4. Stacking and Packaging Modes: For easy collection of folded garments, allows for quick packing into OPP, PP, and PE plastic bags.

5. Flexible Mobility: Equipped with wheels, easy movement within the workplace.

6. Significant Time Savings: Capable of completing the packaging of 200-400 folded bags in just one hour.

Reminder

This clothes folding machine requires an air compressor when used.

The air compressor is not supplied as a standard accessory. It must be purchased separately.

• Be sure to select a vacuum pump which is affixed with either a label showing compliance with the relevant safety standard or with the CE marking.

• Air compressor selection:

With minimum 200L/min (7.1 cfm) air displacement and 25L (6.6 gallon) tank capacity.

Connects the air compressor with an air hose of 3/8-inch (10mm) outer diameter.

Normally pressure range is from 0.5 to 0.7 Mpa (72.5 to 101.5 psi).

Application

The automatic folding machine folds clothes of various sizes and materials quickly, quietly and precisely. Clothes such as T-shirts, sweatshirts, sweaters, work clothes, undershirts of various materials including polyester can be used in this machine.
