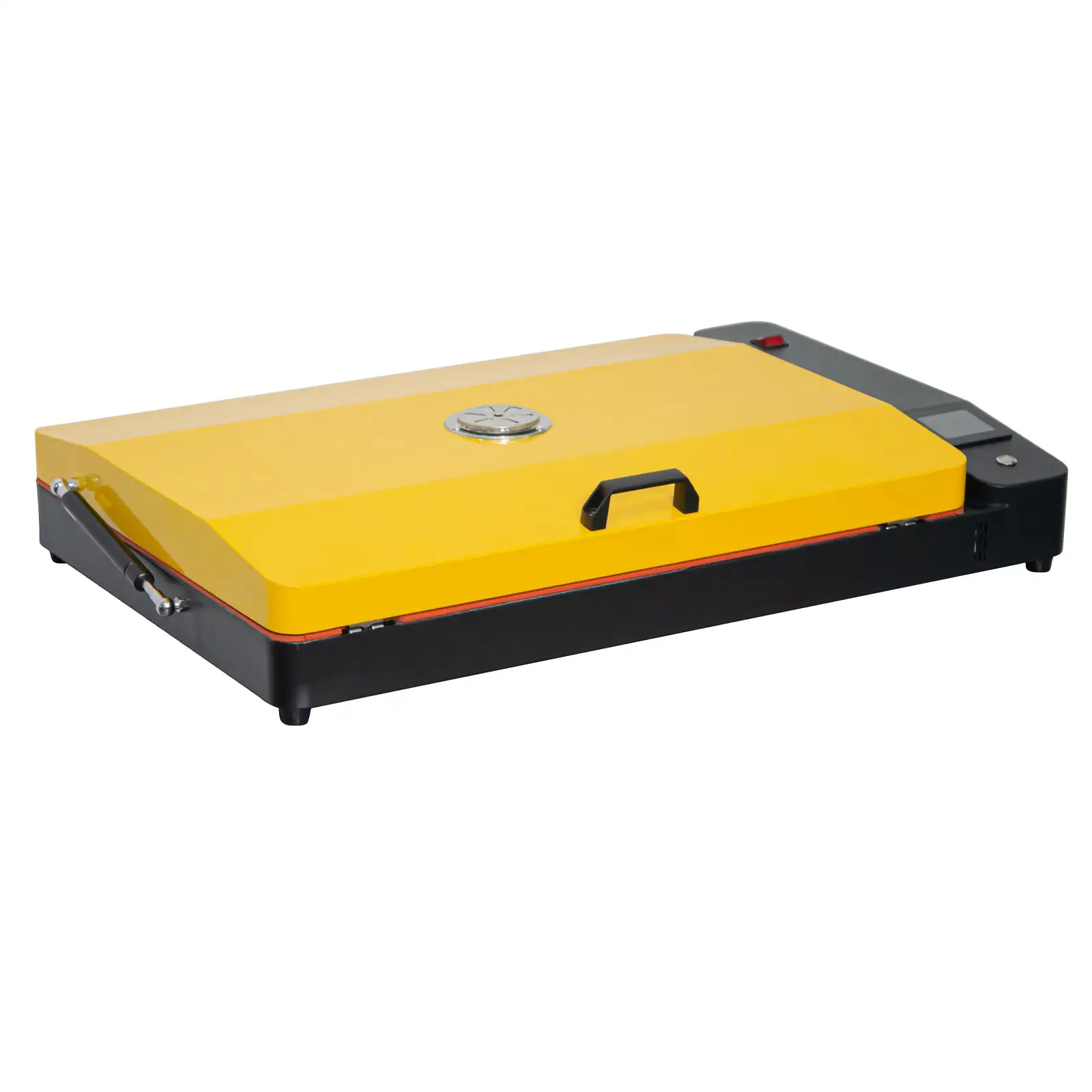

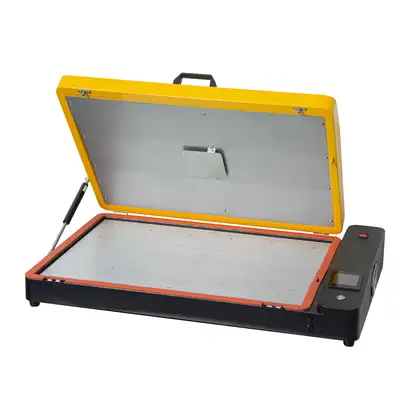

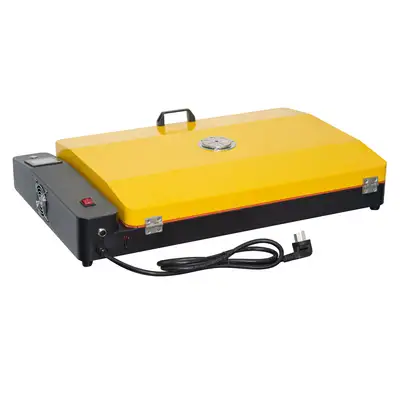

17in x 23.6in DTF Oven with Temperature Control Pro DTF Oven Curing Transfer Film DTF Sheet Open Top Model, with a Small Filter

Description

17in x 23.6in DTF Oven with Temperature Control Pro DTF Oven Curing transfer film DTF Sheet Open Top Model, with a Small Filter

DTF curing oven for baking transfer sheets that are freshly powdered. Fit sheets up to 17in x 23.6in.

Specifications:

Maximum curing size:17in x 23.6in(430mm x 600mm)

Control:temperature&time setup,PID control

Supply:110V,1600W,14.6A/220V,1600W,7.3A

Drying temperature setting:311℉-347℉(155℃ - 175 ℃) (the specific temperature is set according to the melting point of the powder)

The time countdown setting is 210 seconds - 300 seconds. (the specific time is set according to the melting condition of the powder)

Dimension: 32.3in x 21.2in x 6.6in (820mm x 538mm x 167mm)

Net weight:48.5lbs(22kg)

Packing Size:42.4in x 23.6in x 8.7in(1076mm x 600mm x 220mm)

Gross Weight: 52.9lbs(24kg)

The oven has a smoke filter and needs to be fitted by the purchaser.

Features:

The latest design, more scientific structure, more precise temperature control of the product, rapid heating, and the ability to achieve full width drying and curing without dead corners,making it perfectSolidification and fusion effect.

Automatic timing, counter, buzzer alarm.

Suitable for 60CM film white ink printingink & powder fuse curing.
