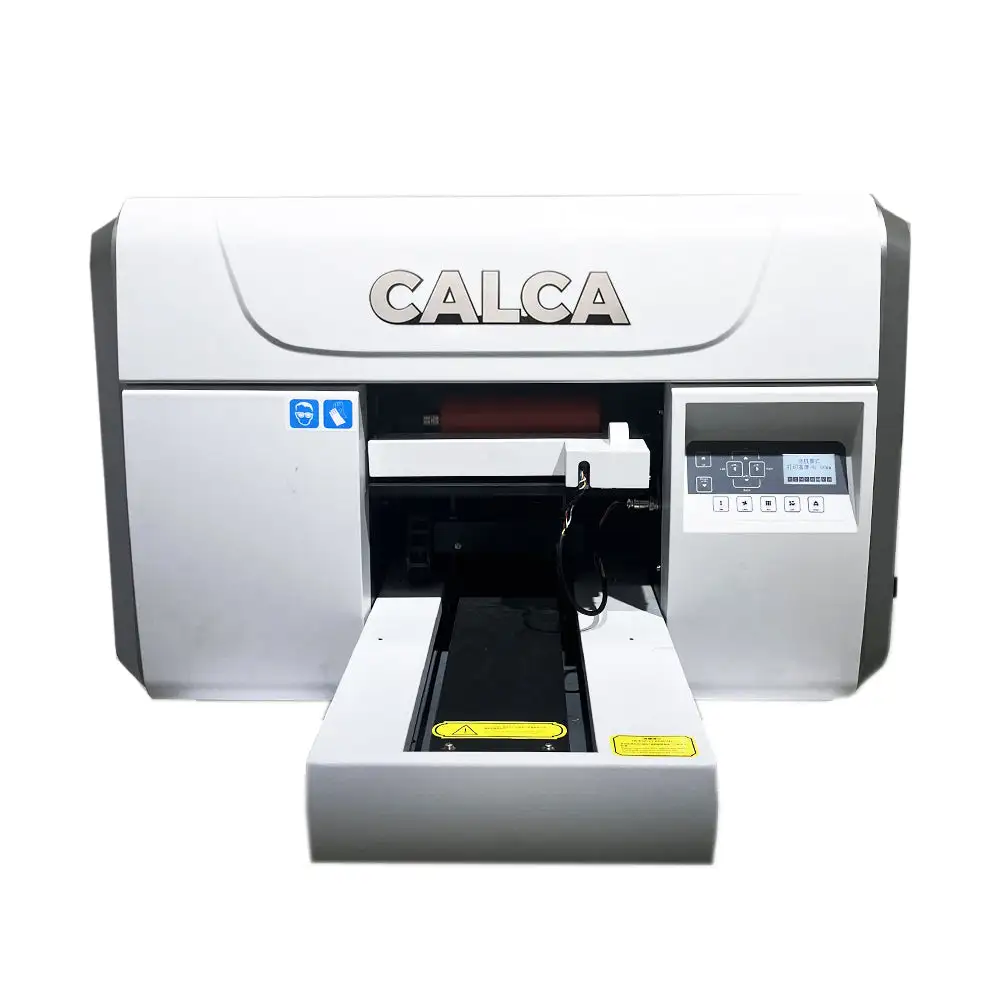

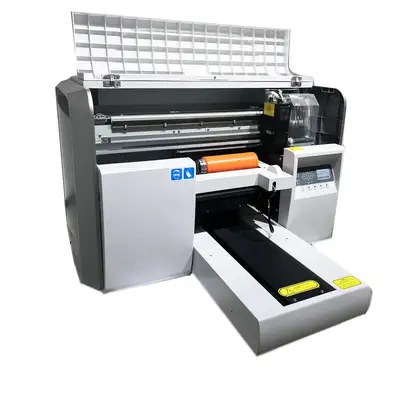

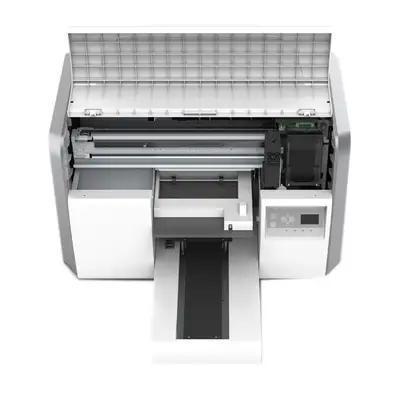

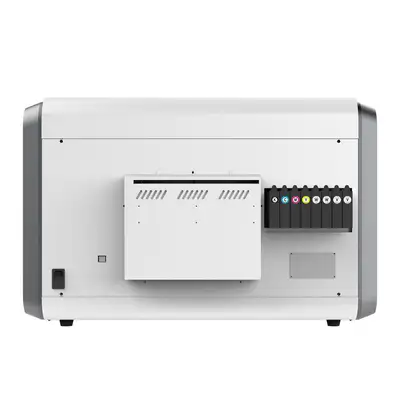

CALCA A3 11.7in x 16.5in LED UV Printer For Flat and Cylinder Printing With Epson I3200-S1HD Printhead

Features:

The resolution can reach 1200 dpi, and it can produce up to 8-color output.

Compact, less foot print.

Humanized design operation panel, convenient and fast operation.

Various functions, support flat and roll printing.

Simultaneous output of white, color and varnish.

High precision lifting vacuum table - the flatness can be controlled within 0.1mm.

Intelligent ink supply system - with ink shortage alarm function. Fixture (optional)

Cylindrical fixture (Standard): Suitable for blanks within 25mm (0.9842in) to 80mm (3.1496in) diameter and 20mm(0.7874in) to 210mm (8.2677in) length.

Roll fixture (Optional): Suitable for blanks within 11lbs (5kg) weight, from 30mm (1.1811in) to 250mm (9.8425in) width,inner core diameter of 3in.

Technical Specifications:

Print size: 297 x 420mm(11.69in x 16.53in)

Print Head: I3200-S1HD x 1pc

Nozzle spray force range: 2-3mm(0.0787in-0.0118in)

Number of nozzle: 3200 (Individual)

Distance between nozzles: 1/300inch

Numbers of nozzle rows: 8

Maximum number of supported ink colors: 8

Effective print width: 300npi/1 list, 600npi/2 list, 1200npi/4 list

Droplet ejection performance(Droplet volume and ejection frequency):

2 levels of grayscale 5 pl (43.2KHz)

3 levels of grayscale 6, 12.5 pl (21.6KHz)

4 levels of grayscale 3.8, 6.2, 9.3 pl (21.6KHz)

Print height: 0-85mm(0-3.34in)

Ink type: Environmental UV curing ink

Print version: White and color and varnish print as same time

Print mode: CMYK+WWVV/CMYK+lcLmWW/CMYK+LcLmLkLLk/CMYK+CMYK

RIP Software: Future Rip

Print speed: 0.28-3sqm/h

Highest print solution: 720 x 1200dpi

Connection method: Network cable

Graphic format: Tiff, Jpg, Eps, Pdf, Png

Printer dimension(L x W x H): 100 x 902 x 592cm (39.37 x 35.51 x 23.31in)

Net Weight: 60kg (132.28lbs)

Packing size(L x W x H):112 x 102 x 78cm (44.09 x 40.16 x 30.71in)

Gross Weight: 80kg (176.37lbs)

Power: AC220 / AC110V, 50-60HZ, 1 phase; 140W, 1.3A(110V) / 0.6A(220V)

Working environment:Temperature:20℃-28℃(68℉-82.4℉); humidity: 35%-65%

Package Includes:

UV printer x 1

Future Rip x 1

Power cable x 1

Network cable x 1

Cylindrical fixture
