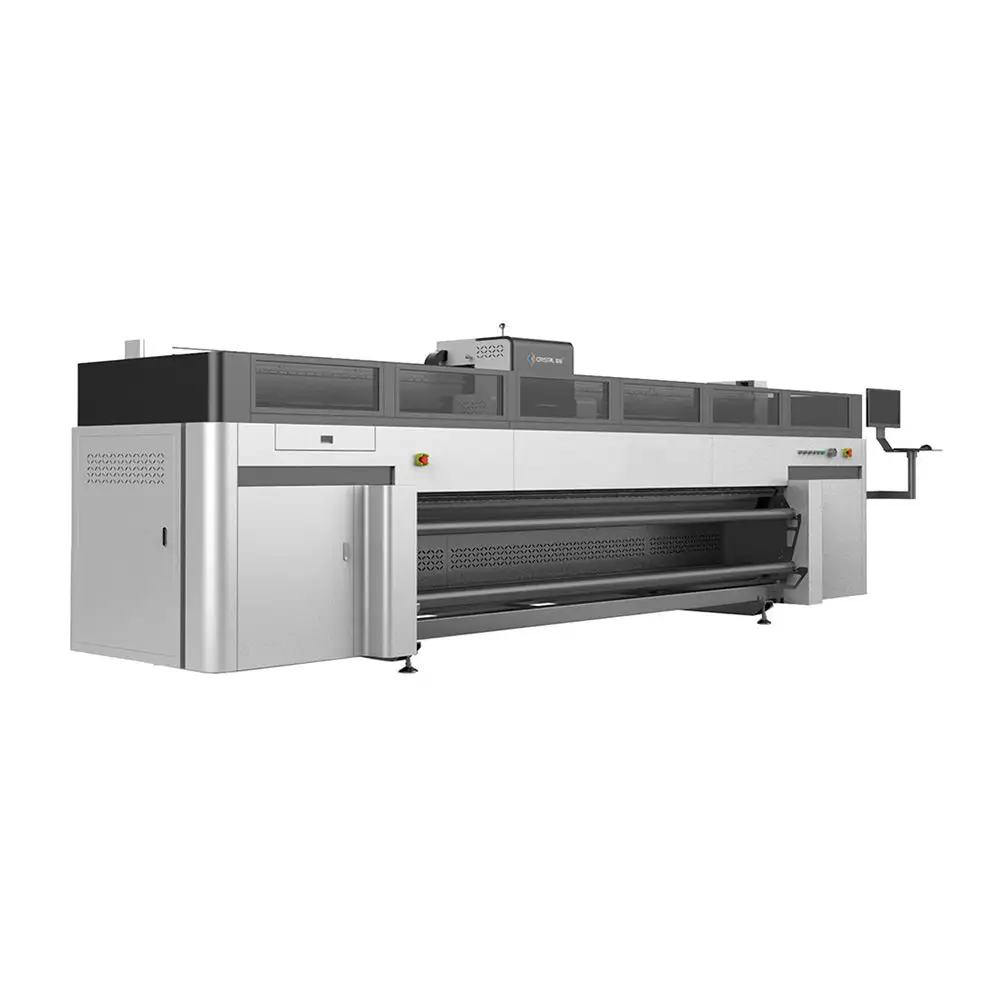

High Quality 5M UV Roll To Roll Printer 3D Printing Machine For Wallpaper Printing (4, 8 or 12 heads)
Overview
Description:
This is a High Quality 5M UV Roll To Roll Printer, 3D Printing Machine for Wallpaper Printing.
ENSURE HIGH RESOLUTION OUTPUT, MORE STABLE WALKING, FASTER AND MORE
SENSITIVE TWO-WAY SWITCHING,IT GUARANTEES FASTER PRODUCTION SPEED AND
HIGHER PRINTING ACCURACY
HIGH POWER DOUBLE PANASONIC MOTOR, ENSURE FULL POWER,
SYNCHRONOUS MODE PRINTING,CLOTH WALKING IS MORE ACCURATE
SUPER LARGE FOUR-STICK LINKAGE SYSTEM TO ENSURE PRINTING QUALITY,
EFFECTIVE MATERIAL WRINKLING, ENSURE THE PRINTING ACCURACY
PROTECT THE DATA TRANSMISSION LINE, PROTECT THE MOTION CABLE
Features
1. Advanced printing control technology, save more cost of ink.
2. Highest resolution up to 1440dpi.
3. Highest resolution platform and material press system, durable and steady industrial level quality guarantee.
4. 2000ml big volume ink supply sytem, fast, steady, high precision production.
Application:
Suitable for soft film, coated banner, light box cloth, board cloth, carpet, etc.
Specification
Printer Model
K8-500 uv roll to roll
Printhead Type
Seiko 1024-6PL
Number of Printhead
4,8,12pcs
Print Width
5000mm
Print Speed
Draft mode
363*1440 dpi (4 pass) 64㎡/h
Standard mode
363*2160dpi (6 pass) 48㎡/h
High resolution mode
363*2880 dpi (8 pass) 32㎡/h
Ink Type
UV ink
Color
K C M Y (Lc Lm)
Cleaning System
Intelligent cleaning
RIP Software
United Fancy / (Photoprint / onyx)
Operation System
Windows 7/Windows 8/Windows 10 warkstation
Image Format
TIFF / JPG / EPS / PDF
Carriage Height
With precision adjustment device of 2-5mm distance to platform adjustable
Media
Media Processing
Roll to roll feeding and take up system
Media Type
Soft film, Banner, PVC flex banner, Leather, Backlit film, Wallpaper etc
Print Information
Working Voltage
AC220V 50/60 HZ
Power Specification
Print system: 3000W UV system: 2500W
Working Enviomment
Temperature: 22℃-30℃ Humidity: 15%-40% RH
Machine Dimension
8320mm (L) x 1740mm (W) x 1885mm (H)
Package Dimension
8320mm (L) x 1740mm (W) x 1885mm (H)
Net Weight
4250KG ± 15KG
Gross Weight
4250KG ± 15KG
