Left Hand Shuttered Lamp Head Assembly Printers with UV Bulb SubZero 085H and Cassette for Océ Arizona / Fujifilm Acuity HD2504

Description

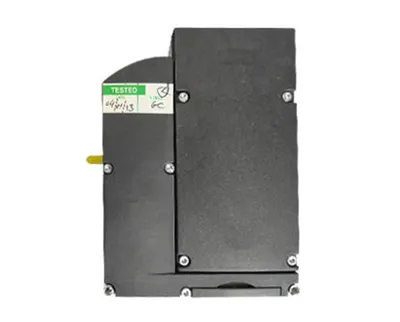

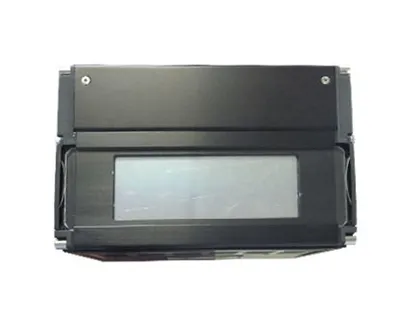

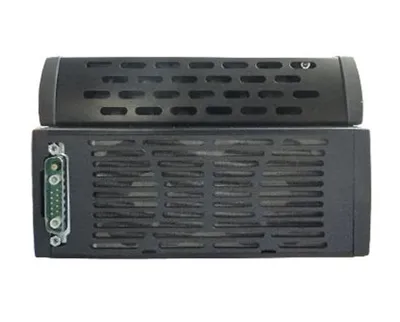

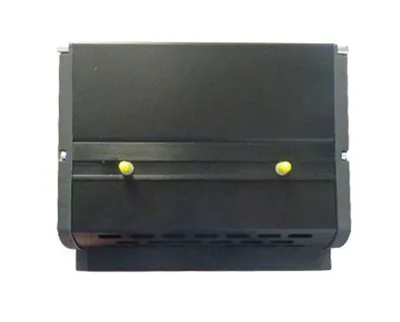

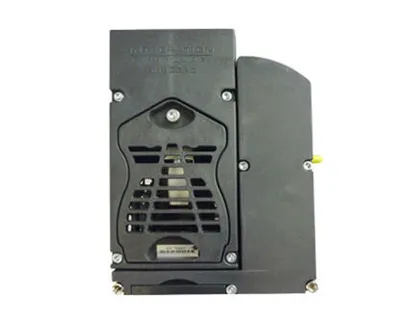

This original manufactured shuttered left lamp head assembly with UV Bulb SubZero 085H and cassette is suitable for Océ Arizona / Fujifilm Acuity HD2504 printers. This is the original lamp head assembly including the cassettes including the UV bulbs and the mirror, already fitted in for easy installation.

Designed specifically for inkjet curing applications, the world leading miniature SubZero UV curing system is specifically designed for moving head inkjet printers, the shutter allows the UV exposure to be closed off as the lamp unit moves the media, greatly reducing the risk of reflected UV light causing damage to the expensive printheads.

Detailed research and lengthy cycle testing has enabled a design which offers exceptional service life, eliminating unnecessary downtime and the replacement of worn components. With a total length of 135.73mm, an arc length of 85mm (3.4ins) and power of 100 W/cm2, the SubZero 085H system is ideally suited to medium sized printer applications using 20mm inkjet head. This advanced lamp system represents the most effective, lightweight, high output, miniature UV emitter on the market today.

SubZero Standard Features

• Ultra compact “footprint”

• Ultra light weight

• High intensity reflector system

• Quartz Filter

• Quick change Cassette

• Rapid Warm up and Cool down

• Integrated air-cooling

• High Flex cable up to 15m

• 500 hours coverage under normal conditions

• 6 months shelf life

SubZero 055 / 085 Compliances

CE/UL 60950-1

ISO CE CB EN60950-1

CE EN 60204

EMC EN 55015

EMC EN 61000

Switch-mode Electronic Power Supply

SubZero 085 204 – 230V 50 / 60Hz

Printer compatibility

Canon Océ Arizona 250 GT

Canon Océ Arizona 300 GT

Canon Océ Arizona 350 GT

Canon Océ Arizona 350 XT

Fujifilm Acuity Advance HD2504

Fujifilm Acuity Advance HD2545

Fujifilm Acuity Advance HD2545 X2

Fujifilm Acuity Advance LT

Inktec Jetrix 1212FK
