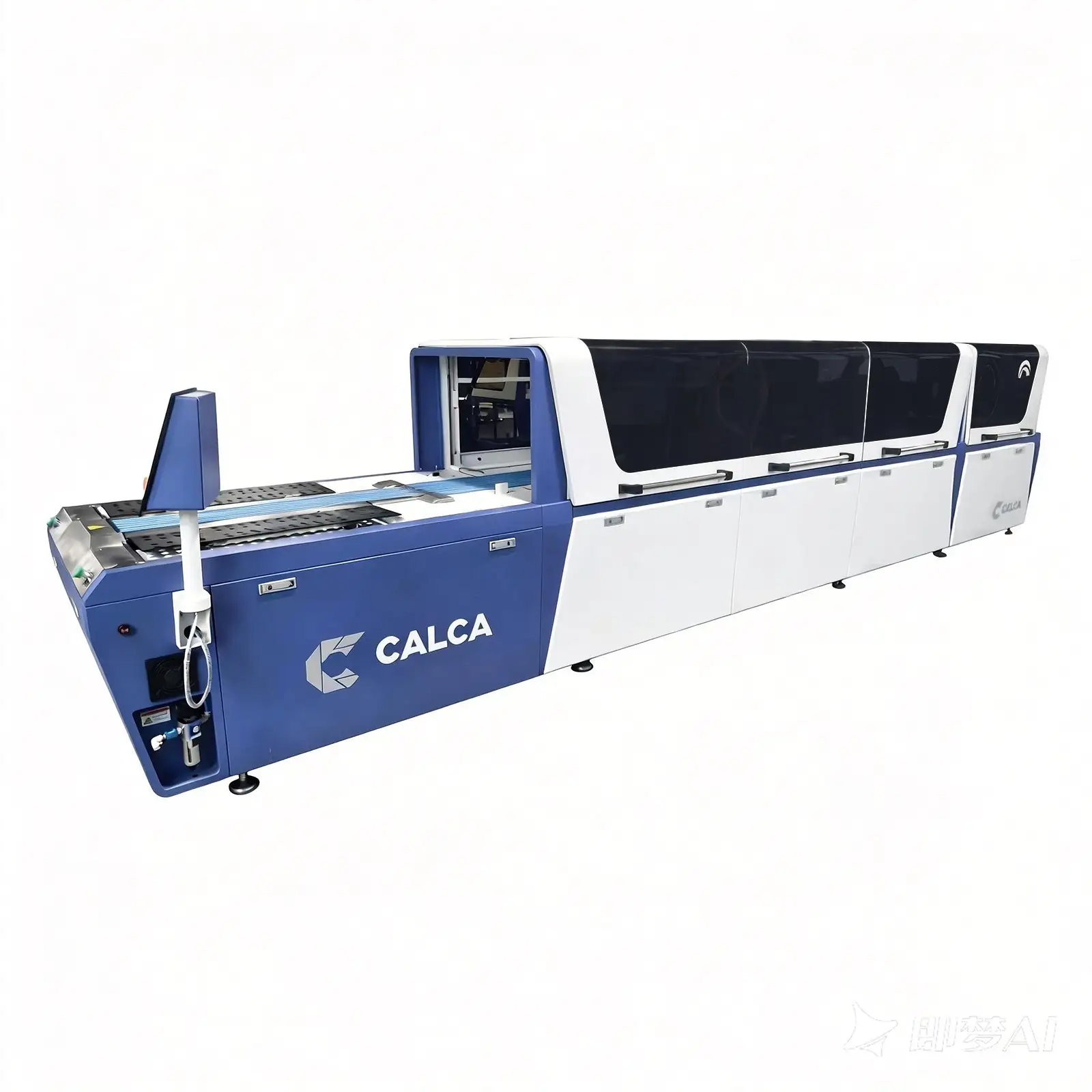

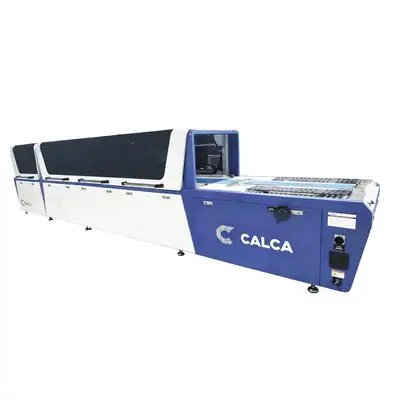

US Stock, CALCA Semi-Auto Garment Folding & Packaging Machine Clothes Stacking + Bagging System for Retail/Laundry

Description

An automated folding and packing equipment suitable for thin clothing, with high cost-effectiveness.

The machine has achievedcontinuous operaions of automatic clothing folding, automatic packing into bags, and automatic sealing, improving the standardiza.tion of clothing folding and packing efficiency, greaty reducing labor costs, and improving the intelligence and automation level ofclothing factories.lt is suitable for major clothing factories.

Machine packaging speed: 450 pieces/hour. One machine equipped with one manual worker can achieve an average daily packingof 4000 pieces.

Applications

The automatic folding machine folds clothes of various sizes and materials quickly, quietly and precisely. Clothes such as T-shirts, sweatshirts, sweaters, work clothes, undershirts of various materials including polyester can be used in this machine.

Specifications

Name

Automatic Clothes Folding Machine-L3520S

Model

DTF-FPM-L3520S-US

Input voltge

AC220V, 50Hz

Power

1200W,5.45A

Use air pressure

Mpa 0.6

Length range before folding

400-900mm (15.8" - 35.43")

Width range before folding

350-900mm (13.78" - 35.43")

Folded length range

200-400mm (7.87" - 15.8")

Width after folding

180-380mm (7.09" - 14.96")

Maximum speed

550 pieces/hour

Packing Size

Package 1

3950mm x 1190mm x 1680mm(155.51in x 46.85in x 66.14in)

Package 2

2650mm x 1190mm x 1900mm(104.33in x 46.85in x 74.8in)

Gross Weight

Package 1

510kg(2425.1lbs)

Package 2

570kg(1102.3lbs)

Machine Size

Machine 1

3850mm x 1090mm x 1480mm(151.57in x 42.91in x 58.27in)

Machine 2

2550mm x 1090mm x 1700mm(100.39in x 42.91in x 66.93in)

Net Weight

Machine 1

360kg(793.66lbs)

Machine 2

420kg(925.94lbs)
