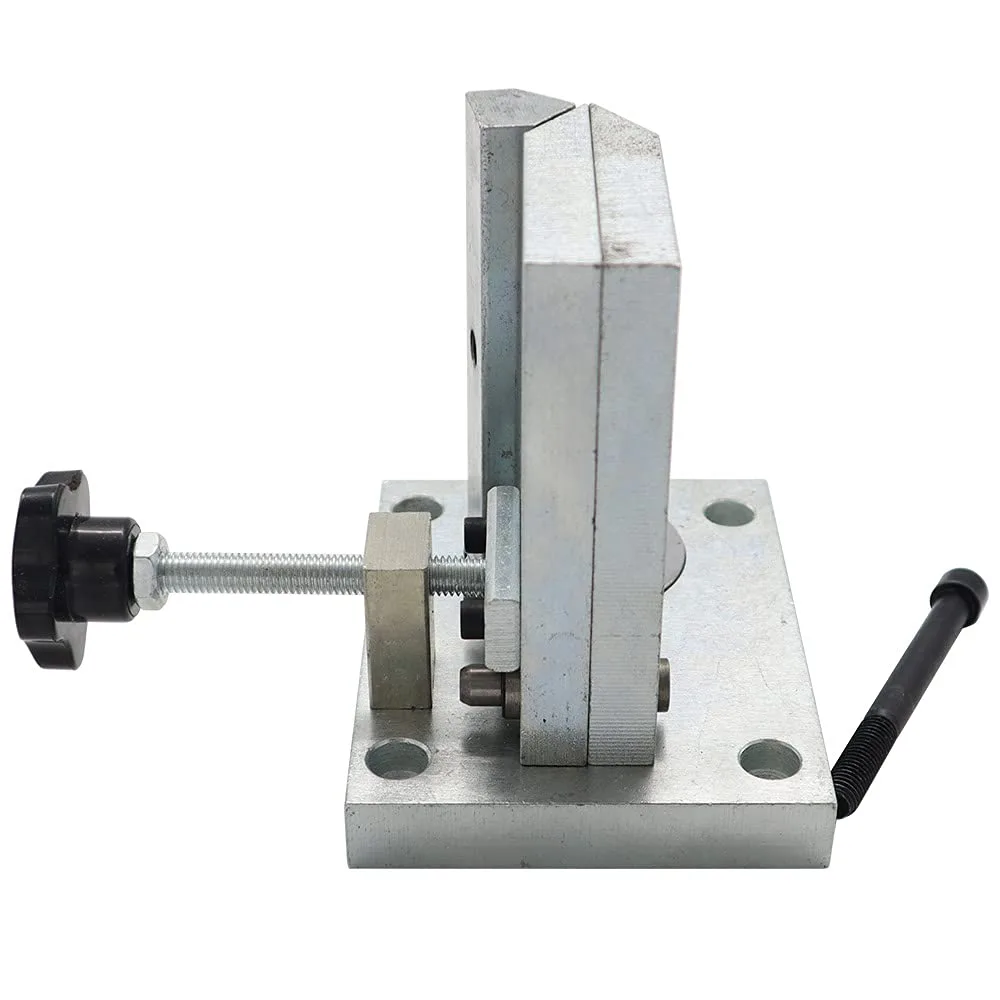

Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 3.9"(100mm)

Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm

For bending angles of metal sheet, stainless steel, aluminum extrusions and various metal strips

Description:

• This metal letters bending tool is made to solve problems of time-consuming and laborious in manual bending metal letters, and has effectively solved problems existed in bending metal sheet.

• It can bend metal sheets quickly and accurately (It will attain the best effect if you use with CS-MBBT-001 metal slot bending machine), save time and effort, and improve production efficiency.

Updated product, zinc plated silver color.

Features:

• Two axes: one for adjustment of plywood gap, and the other for bending angles;

• Imitation of pneumatic angle bending machine, with two flexible boards, this metal letters bending tool can better adjust the plate space, bend angles for different materials;

• When bending iron stainless steel, the bending material can be guaranteed not to fall automatically by adjustment of plate space;

• This metal letter bender can fasten materials firmly, and thus can bend more perfect and accurate angles.

• It is easy to install and operate. Small size.

• It can bend iron 1.2 mm, aluminium: 1.2 mm, stainless steel: 1.0mm, effective flanging height is 10 cm.

Specification:

Maximum Process Thickness: 1.2mm (0.05")

Maximum Bending Materials Width: 100mm (3.9")

Machine Size: 210mm x 140mm x 150mm (8.3" x 5.5" x 5.9")

Machine Weight: 5.05kg

Tips:

• This metal letter angle bender must be fixed in the usage to improve efficiency due to many operations;

• This metal letter bending tool adopts screw rod clamp type, you’d better not fix the metal too tight, otherwise will reduce the tool’s service life;

• If you want to bend thicker metal or you need attain standard 90 degree angle, please make a slot at first with our CS-MBBT-001 metal slot bending machine;

• If the distance between two angles is less than 10cm, but plus the distance between the third angle is more than 10cm, you can bend the third angle first, and then bend the second angle, so that you can avoid in-operation situation.

Comparison

Dual-axis Metal Channel Letter Angle Bender Bending Tools

Mini Metal Letters Angle Bender Bending Tools

Pneumatic Dual-axis Metal Letter Angle Bending Machine

Maximum Working Thickness: 1.2mm

Maximum Working Thickness: 1mm

Maximum Working Thickness: 1.2mm

Mainly used for bending aluminum material edges.

Mainly used for bending steel material edges.

Mainly used for bending aluminum material edges.

Machine Weight is 5.05kg

Machine Weight is 1.65kg

Machine Weight is 6.65kg

Plate space can be adjusted, which makes the bending material not to fall automatically when bending iron stainless steel. You can fasten materials firmly and bend more perfect and accurate angles.

The plate space is fixed, width is 1.5mm

Plate space can be adjusted, which makes the bending material not to fall automatically when bending iron stainless steel. You can fasten materials firmly and bend more perfect and accurate angles.

Price is medium

Price is low

Price is relatively high

Can make a 10cm distance between two angles

Can make a 10cm distance between two angles

Can bend many ranges of edges, and can even make a 5cm distance between two angles

Manual operation, dual-axis design, labor saving.

Manual operation, small size and light in weight

Pneumatic operation, with a foot switch, dual-axis design, labor saving

Applications

This metal channel letter bending tool can be used for bending angles of metal sheet, stainless steel, aluminum extrusions and various metal strips.
