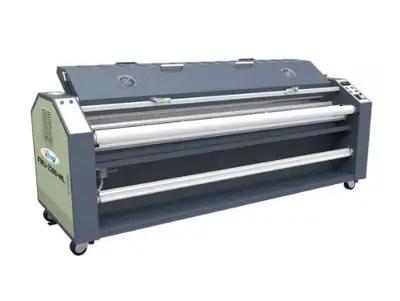

Qomolangma 86" Full-Auto Wide Format Liquid Laminator

Description:

Support Roll To Roll Operation.

Mainly used for roll to roll coating of vinyl, banner, canvas etc.

This series of liquiq laminator is widely used in the post-production of outside/inside advertisement and vehicle body advertisement.

Available size in 63.0" (1600mm), 78.7" (2000mm), 86.6" (2200mm) width.

Products Highlights:

• This liquid laminator has both drying system and cooling system, which make the coating film from `liquid` state to solid state. After laminating, the media can be crack resist, more flexible, UV protection, scratch resist etc.

• 61", 76", 83" Maximum working film width for your option.

• Easy operation panel:

Dryer, fan, motor, pump button

Various speed and temperature adjustment

Temperature indication

Emergency Stop Button

• Compatible with most roll-to-roll solvent, eco-solvent and pigmented inkjet printers, this liquid laminator protect inkjet graphics on vinyl, PSA, non-porous textiles, wet strength wall covering, canvas and other flexible substrates.

• Liquid film is formed directly on the picture surface, and the film thickness is up to the size of Mayer bar. You can change the Mayer bar to increase film thickness according to requirement.

• Has both flash drying system and cooling system, which make the coating film from `liquid` state to solid state, especially for hard-to-dry inks.

• The liquid laminator is cost-effective and environmentally friendly. Coating costs range from $0.25 to $0.32 per sqm, depending on application and coating used.

• Easy to operate and clean, requires minimal operator training.

Applications:

The series liquid laminator is one kind of after printing equipment, it is applicable to outdoor advertisements (printed by Solvent Ink).

Specifications

Model

FMJ-2200-WL

Max. Coating Width

2100mm(83")

Max. Laminating Thickness

0.007-0.01mm

Max. Laminating Speed

1-1.5m(40"-59")/min

Laminating Temperature

100-130 degree

Max. Heating Temperature

150 degree

Forward / Reverse

Yes

Emergency Stops

Yes

After Laminating Pickup

Yes

Heating Power

8.4KW

Film Supply Mode

Magnetic suspension liquid pump, circulation supply

Heating Method

Infrard heating lamp

Motor Power

90W

Power Supply

380V/3P 50/60Hz 16A 220V/1P 50/60Hz 35A

Machine Weight

450kg

Machine Dimension

2630*930*1050mm(106"*37"*41")

Package

Fumigation free package

Packing Size

2760*1100*1230mm

Gross Weight

550kg
