USED 2008 HAAS SL-10

Ohio, United States
1,336Listings|530Followers
Overview
CNC Lathes

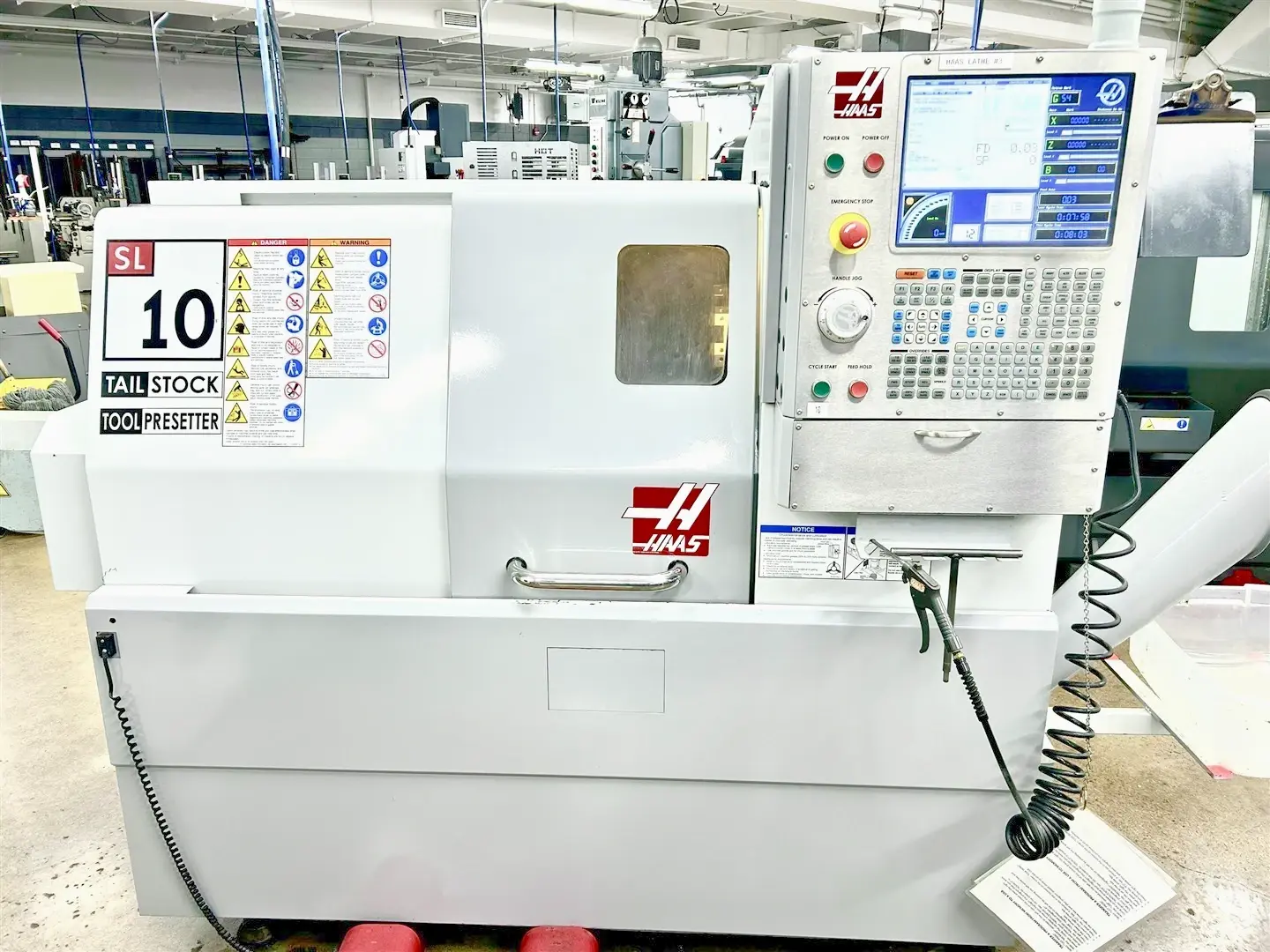

This 2008 Haas SL-10 CNC lathe shows approximately 111 spindle hours and 97 motion hours, and runs an upgraded 20 HP spindle up to 6,000 RPM. It offers 16.5" of swing over the apron and an 11" cutting diameter, with a 6.5" chuck, 1.75" bar capacity, a 12-station turret, and a tailstock.

Specs
Swing
16.25"
412.75 mm
Machining Length
14"
355.6 mm
# Axis
2
2
Chuck Size
6.5"
165.1 mm
Bar Capacity
1.75"
44.45 mm
Power
20 hp
14.9 kW
Max RPM
6,000 RPM
6,000 RPM
Turning Dia
11"
279.4 mm
Tailstock
Yes
Yes
Control
CNC (HAAS)
CNC (HAAS)

Distance Between Centers: 17"
Spindle Nose: A2-5
Turret: 12 Station, 1 Sec. Indexing
Rapids: 1,200 IPM
Approximately 111 Spindle Hours
Approximately 97 Motion Hours

Equipped With

Tool-Eye Presetter
Chip Auger
