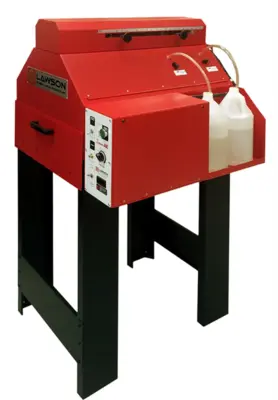

Lawson Zoom-AE #1620 Pretreatment Sprayer DEMO UNIT

Description

The Lawson Zoom-AE is the direct to garment (DTG) industry leading pretreat sprayer. The Zoom-AE is the best dtg pretreatment sprayer for anyone who is serious about quality DTG printing. As an all-electric, industrial, state-of-the-art automatic pretreatment machine, the Zoom-AE can pretreat garments quickly, easily and consistently at the touch of a button.

All-Electric, industrial, state-of-the-art pretreat application sprayer. Pretreat garments quickly, easily and consistently at the touch of a button - with zero "out-spray".

This pre-treat unit saves space and features an instant twist on/off spray nozzle that can be changed in seconds. In addition, the length of spray is easy to adjust and maintenance is very simple.

The Lawson Zoom-AE is an all electric operated unit. It is ideal for basic to sophisticated spraying of pre-treat solution. Just pull out the drawer, load the shirt and push the start button.

Specifications

Model

#1620

Direct-to-Textile

Yes

Number of Spray Heads

1 (optional 2nd Left/Right Chest Head)

Estimated Spray Path Width

17"

Estimated Spray Path Length

Adjustable up to 20"

Maximum Image Size

17" x 20"

Standard Platen Size

16" x 20"

Estimated Length, Width, Height

34" x 27" x 24" (without floor legs)

34" x 27" x 52" (with floor legs)

total length with Drawer Extened is 60"

Electrical Requirements

120 volts, standard plug-in wiring

Air Requirements

None

Solution Containers

2, 1-Gallon Containers

Estimated Unit Weight

150 lbs.

Estimated Leg Kit Weight

30 lbs.

Estimated Crate Size (W x L x H)

32" x 58 " x 32" (60" with legs assembled)

Estimated Crated Weight

280 lbs.

WENL Spray Tip on Zoom-AE

Speed

Grams

40

40-51

50

39-41

60

34-35

70

29-30

*Always pre-test to determine appropriate settings for your substrate and environment
