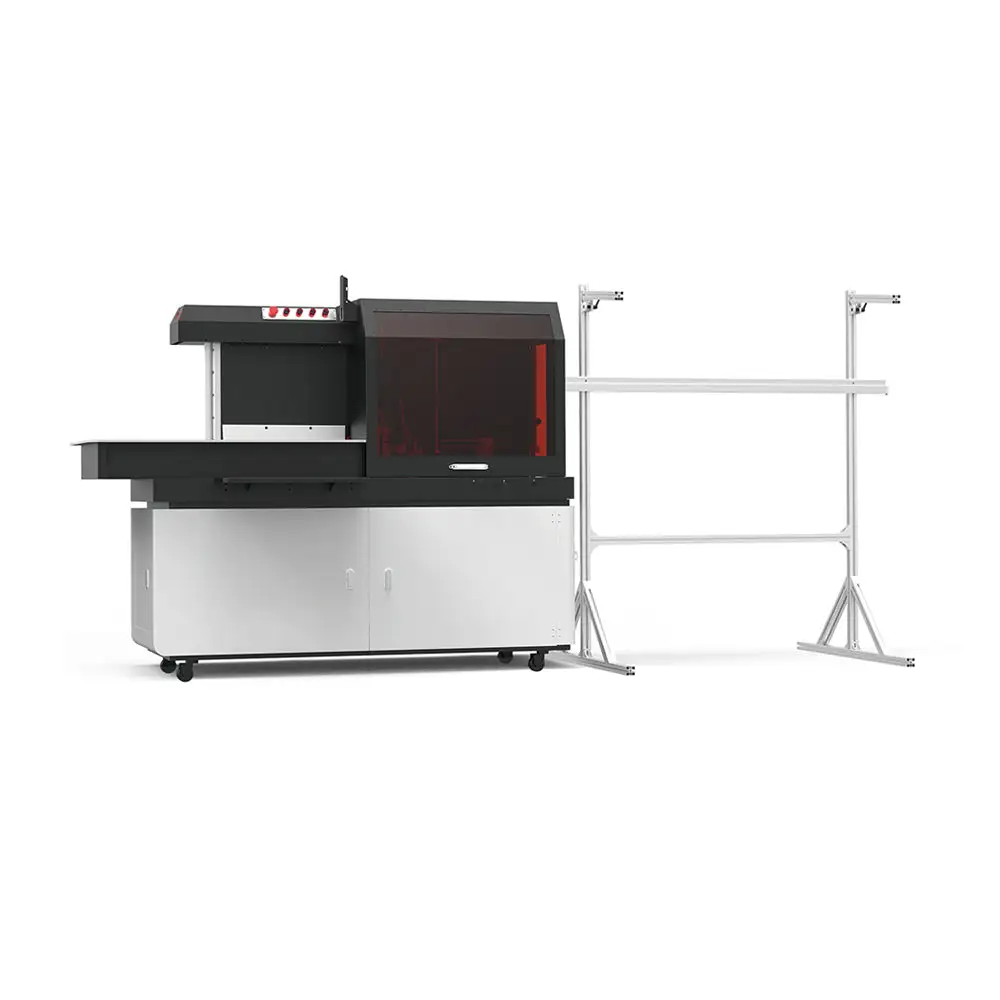

Ving Automatic Channel Letter Bending Machine Landscape Sign Bending Machine

DESCRIPTION

1. Bending system

Double knife alternating bending system, specially designed scimitar and edge structure, 400mm wide processing range, equipped with high power servo system, more suitable for square word, landscape word, roof word, hypotenuse word and other large advertising word bending.

2. Slotting system

Plane tool grooving, using CNC turning tool as the grooving tool, grain selection with imported German carbide knife, high strength and low loss, double-sided 8 blade blade, replacement saves time and effort without sharpening. High power servo drive and equipped with high quality ball screw and linear guide rail, with groove automatic oil spray function, ensure the groove effect should be smooth and level. The system presets the natural Angle slotting function, aiming at the small Angle, the sharp Angle position automatically thin, easy to deal with the complex and changeable graphics processing.

3. Servo system

Adopts the design of manipulator of feed by set respectively in the encoder of the two groups before and after progressive work clamp clamping materials. Compared with circulating clamping feeding, it can effectively reduce the waste of materials when using strip. The configuration of servo drive + high-quality ball screw and linear guide rail makes the feeding smooth and smooth, and effectively controls the material deformation. The closed-loop control composed of length encoder and system makes the finished products perfectly match the source files.

Specification

Item

MBM-JY-A400

Feeding system

Progressive clamp feeding system

Slotting system

Plane cutter slotting system

Bending system

Double blade alternating bendingsystem

Material Apecification

Stainless steel, Galvanized board, Aluminum ≤1.2mm

Material Height

40-400mm

Accuracy

±0.1mm

Input File format

*.dxf

Power supply

AC220V/50HZ/5KW

Air supply

0.6m³/min

Dimensions

L1900*W738*H1665mm

Machine weight

750kg
