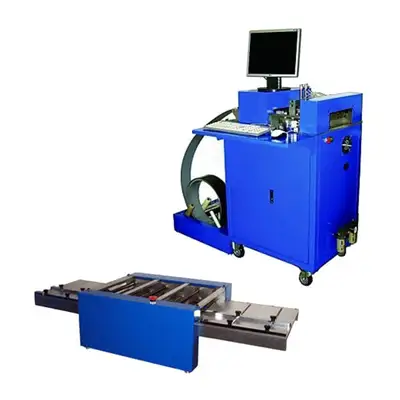

US Stock, Ving Metal Channel Letter Making Solution Starter Sets (1 Notcher, 1 Flanger)

Package includes:

1 x CNC Notching Notcher Machine for Metal Channel Letter, Single Side Notch

1 x Automatic Flanging Machine Flanger for Metal Channel Letter Making

1 x Steel and Stainless Steel Coil Strip Rounded Corner Bending Tools

Remark:

The computer is not included, please prepare it by yourself.

The windows system should be win XP or win7-32bit and have PCI solt.

Here is a list of items included in this package:

CNC Notching Notcher Machine for Metal Channel Letter, Single Side Notch

1.This Metal Channel Letter Making CNC Notcher is Single Side Notch, its' Notch angle: 30° and 105°, Notch depth: 4mm-16mm.

2.This CNC Notcher is especially used for channel letter notching. Input the design or letter in DXF into the machine, CNC Notcher will fully automate notching accurately.

Material handling capabilities:

Width: 60mm~180mm

Aluminum Coil Thickness: 0.4mm~1.2mm

Specification:

Notch angle: 30°and 105°

Notch depth: 4mm-16mm

Notch sides: One side

Voltage: AC110V/220V

Frequency: 50/60HZ

Air pressure: 0.8Mpa

Air flux: 0.1 m3/min

Physical layout: 2200(L)x1600(W)x800(H)mm

Net Weight: 200kg

Packing Size: 1030mm x 830mm x 1480mm

Gross Weight: 287kg

Automatic Flanging Machine Flanger for Metal Channel Letter Making

This cnc automatic flanger eliminates any restriction on channel letter return lengths imposed by brake size. Returns can be flanged as a continuous part of your channel letter production, minimizing labor and manufacturing costs.

Features:

Easier set up; Easy use;

Smaller Footprint conserves space;

Used on a bench top or with stand;

No special power requirements. Uses standard household power.

Specifications:

Material width: 60mm~180mm

Aluminum Coil Thickness: 0.4mm~1.2mm

Voltage: AC110V/220V

Frequency: 50/60HZ

Air pressure: 0.8Mpa

Air flux: 0.1 m3/min

Physical layout: 1200(L) x 440(W) x 310(H) mm

Weight: 52kg

Packing Size: 1340mm x 580mm x 470mm

Gross Weight: 95kg

Description:

This metal coil strip round corner bending tool can bend iron 1.0 mm, aluminum: 1.2 mm, stainless steel: 0.8mm, effective flanging height is 150mm.

Max Height: 150mm

Three rolls with different diameters

The rolls with low friction material, easier to use

Can be surface or flush mounting with the bottom

Packing Size: 9.0" x 5.2" x 6.5"(230 x 132 x 165mm)

Gross Weight: 3200g/set
