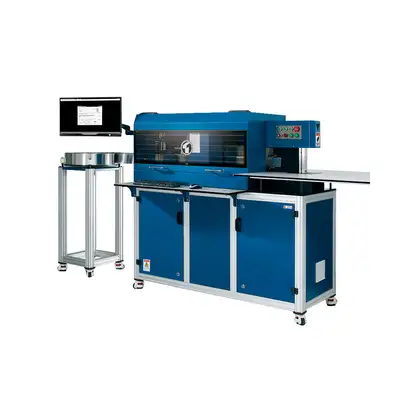

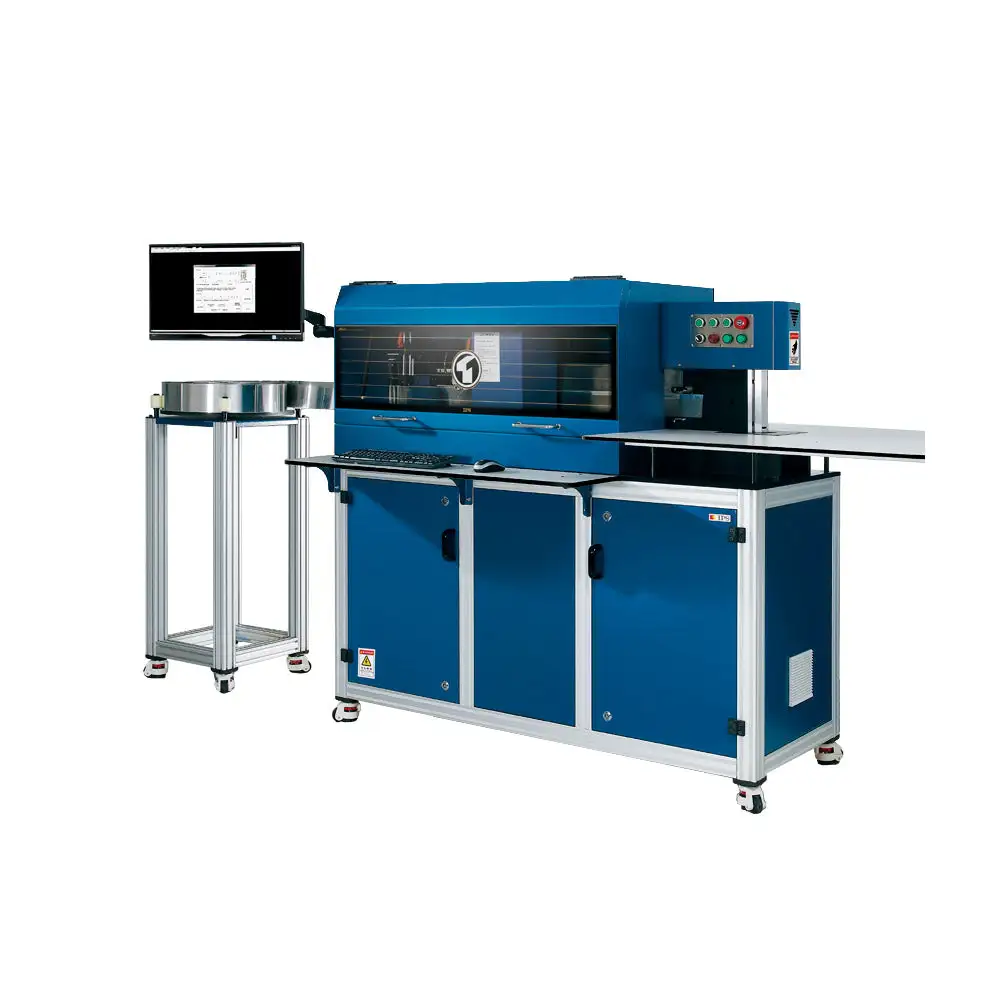

Ving Automatic Channel Letter Bending Machine with Slotting, Notching and Flanging Functions
Overview
Specification
Power Supply
AC200V
Power
4.0KW
Compressed air
0.4—0.6MPa
Axis Quantities
5pcs
Min. Curving radius
R7mm
Min. Distance between interal and external angles
4.5mm
Start to Bend Distance
3mm
Applied Materials
Stainless steel,Galvanized sheet,Aluminum Coil（Flanging and notching function only for aluminum）
Material Thickness
0.6-1.0mm
Processing Height
Stainless steel（20-175mm）Aluminum Coil（50-175mm）
Material Feeding Method
Alternating doubel screw rails feeding
Notching Method
C controlled by servo motor
Notching Angle
30°/120°
Flanging Method
Pneumatic flanging for right angle
Flanging edge width
14mm
Servo Motor Quantities
4PCs
Step Motor Quantities
1PC
N.W./G.W.
800Kgs/900kgs
Dimension（L W H）
2290×860×1560mm
