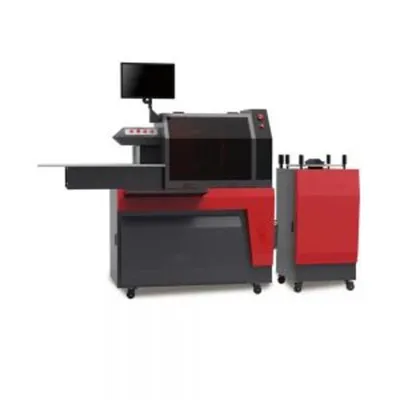

Ving Automatic Channel Letter Bending Machine Advanced Full Function Bending Machine

Features:

1. Double-blade alternating bending system, according to the change of the inner and outer arc of the processing graph, automatically switch corresponding cutlass for bending, in the process of switching back automatically into the tool library, avoid the phenomenon of cutlass interference forming Angle, for small radians and small angles forming performance is very excellent. The same platform with profile processing capacity, plate and profile processing without changing the hardware.

2. Double cutter and double drive slotting system, combined configuration of planer and milling cutter, the system drives slotting cutter by itself for different material processing, without manual intervention in tool switching procedures.

3. Rolling continuous feeding system, fast and sensitive, continuous response. The pressure can be adjusted according to the change of soft and hard material, which can avoid the occurrence of indentation and slip. The setting of double feeding bracket avoids the change of feeding track and ensures smooth material input.

Specifications

Item

MBM-JY-AT1

Feeding system

Rolling-typed continuous feeding system

Slotting system

Plane&milling cutter double drive slotting system

Bending system

Double-blade alternating bending system

Material Apecification

Stainless steel,Galvanized board, Aluminum ≤1.2mm；Aluminum profiles ≤1mm

Material Height

10-130mm

Accuracy

±0.1mm

Input File format

*.dxf

Power supply

AC220V/50HZ/3.5KW

Air supply

0.6m³/min

Dimensions

L1300*W753*H1521mm

Machine weight

550kg
