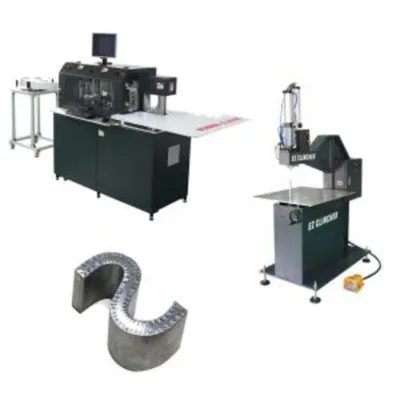

Ving Multifunction Automatic CNC Metal Channel Letter Bending Machine + Clincher Machine
Overview
Items included in this package:
Ving Multifunction Automatic CNC Metal Channel Letter Bending Machine
Description:
• BENDER CLASSIC CNC metal channel letter bender is the machine with full function: auto feeding, auto notching, auto flanging, auto bending and auto cutting.
• BENDER CLASSIC is the enhanced version of BENDER A. Besides all the functions of BENDER A, it can work with 2mm Aluminum.
Specifications
Material height: 70mm - 180mm (2.756in - 7.09in)
Material thickness: 0.6mm - 2.0mm (0.024in - 0.0787in)
Width of flange: 6mm-14mm (0.24in - 0.55in)
Notch depth: 10mm - 12mm (0.39in - 0.47in)
Notch size: 30º and 105º
Bending angle: 0º - 120º degree
Feeding speed: 36m / min (118ft / min)
Min radius for circle: R10
Cutting: Air - oil boost up cylinder
Air: 90psi (6bar) at 1cfm
Power: 220V, 3Phase, 60 HZ, 15Amp
Machine Physical layout: 3700mm x 1200mm x 1500mm (146in x 47in x 59in)
Net weight: 700kg (1540lbs)
Packing Size: 1980mm x 1030mm x 1500mm (78in x 40.6in x 59in)
Gross weight: 860kg (1892lbs)
Remark:
The air pump should be above 0.6Mpa and computer should be XP or W7 32/64-bit with PCI slot.
Ving Automatic Clincher Machine for Metal Channel Letter Making
Description:
• Ezletter Clincher is particularly designed for fastening the letter returns and letter backs.
• It uses newest technique power to connect metals without drilling, spot welding and riveting.
• It's ease-to-use and effective, it can also save power and time.
• Ezletter Clincher will greatly reduce your Channel Letter fastening costs and help you outperform the competition with high quality products.
Specification:
Press Force: 2 ~ 2000kn
Working Travels: 70mm (2.76in)
Press travel: 20mm (0.79in)
Throat: 700mm (27.56in)
Table Size: 700mm x 800mm (27.56in x 31.5in)
Capability Single Max.: 1.0mm Aluminum sheet
Adjustable worktable: 0 - 300mm (11.8in)
Speed: 40 hits / minute
Air pressure requirement: 5kg ~ 6kg (11lbs - 13.2lbs)
Voltage: 110V/220VAC, 1phase, 50 or 60 HZ
Power: 1.1KW
Air 90psi (6bar) at 1cfm
Working size: 1300mm x 750mm x 1970mm (51.2in x 29.5in x 77.6in)
Package Size: 1400mm x 870mm x 2170mm (55in x 34.2in x 85.43in)
Gross Weigh: 722kg (1588lbs)
Remark:
The air pump is not included, please prepare it by yourself.The air pump should be above 0.6Mpa.
