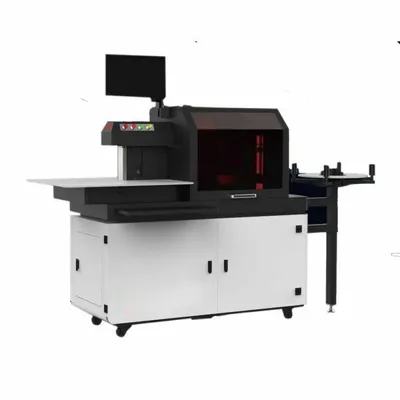

Ving Automatic Channel Letter Bending Machine High Edge Full Function Bending Machine

Description

1. Bending system

Double knife alternating bending, specially designed cutlasses and edge structure, compatible with plate and profile processing. More suitable for small Angle small radian bending.

2. Slotting system

Double tool slotting, stainless steel galvanized board selection of planer slotting, aluminum profile and aluminum plate switch to large Angle alloy knife slotting.

3. Feeding system

The design of circulating clamping feeding, manipulator circulating clamping feeding, the configuration of servo drive + high quality ball screw and linear guide rail makes the feeding smooth and smooth without causing deformation to the material, and the closed-loop control composed of length encoder and system makes the finished products perfectly match with the source files.

Features:

1. 18cm processing range, equipped with fixed cutlery with a small Angle of 44°. In the higher processing range, to achieve high speed, stable bending

2. Part of the structure adopts precision casting, making the bending machine precise and efficient (casting includes: fixed scimitar, fixed scimitar safety, encoder, manipulator, feeding bracket, feeding bracket presser, etc.)

3. Plate, profile processing in one, can produce stainless steel, galvanized board, aluminum plate, aluminum profile and other materials

Specifications

Item

MBM-JY-A200S

Feeding system

Circulation-typed clamp feeding system

Slotting system

Plane&milling cutter slotting system

Bending system

Double blade alternating bendingsystem

Material Apecification

Stainless steel, Galvanized board≤1.2mm ；Aluminum≤1.5mm；Aluminum profiles ≤1mm

Material Height

20-200mm

Accuracy

±0.1mm

Input File format

*.dxf

Power supply

AC220V/50HZ/3.5KW

Air supply

0.6m³/min

Dimensions

L1577*W703*H1543mm

Machine weight

510kg
