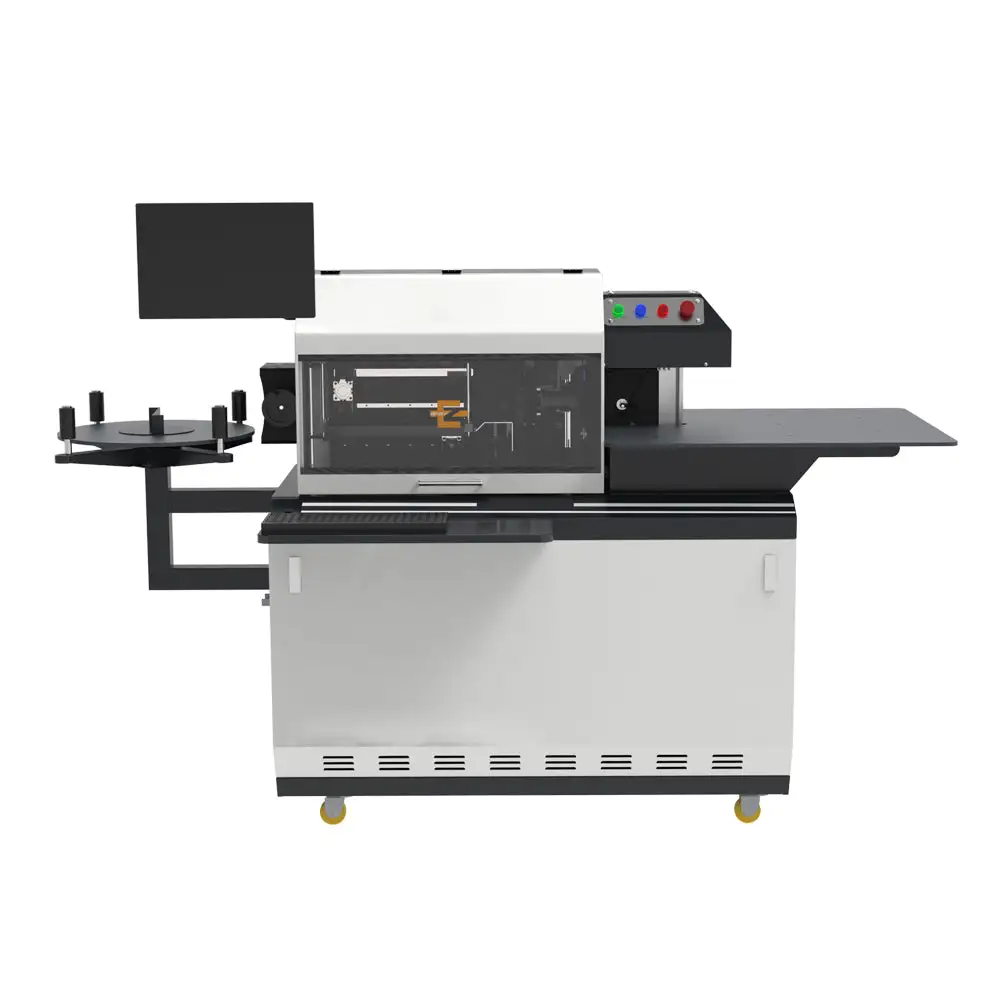

Automatic Y13 CNC Metal Channel Letter Bender Machine for Aluminum, SS, Iron

Description:

Y13 Multifunction Channel Letter bending machine,Using mechanical hand alternately feeding structure,the stability of the feeding process is effectively guaranteed. Double ball screw with nylon gear, the feeding speed of the machine is greatly improved. The material clamp is made of structural castings,avoid scratching to the material while improving the feeding holding power.

Features:

The monobloc casting of Bending Mechanism has high molding degree which ensure the bending speed and stability.

The casting on Clamping increases the grasping force, meanwhile does not scratch the material;

The double ball screw of feeding design ensures the feeding speed and precision as well as stability;

The matching accuracy with the source file is ±0.1mm.

Specifications

Model

MBM-EJON-Y13

Feeding System

Double ball-screw alternate feeding system

Slotting System

Plane cutter and alloy milling cutter double cutters slotted system

Bending System

Double blade alternate bending system

Suitable Material

Stainless steel, Galvanized steel, Aluminum plate

Material Height

20~130mm

Material Thickness

Stainless steel, Galvanized steel≤0.9mm

Aluminum≤1.2mm

Min. Bending Angle

Stainless steel, Galvanized steel, Aluminum R6

Size Accuracy

±0.1mm

Input File Format

Dxf.Plt.Ai

Power

AC220V, 50Hz, 3KW

Air Source

0.6m³/Min

Control System

4 axis control system (2 axis servo control)
