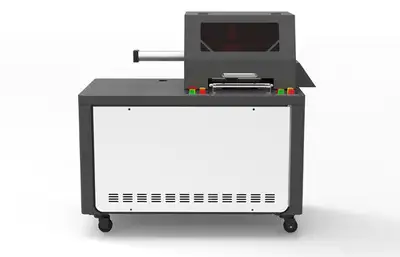

CNC Metal Automatic Angle Grinder Slotting Machine for Channel Letter

Description:

The G20N with fully new appearance inherited all the good quality, stability and precision processing as always. Cooperated with our self-developed operation software, the practicability and durability are greatly enhanced.

The software system is independently developed by the software engineering department of Jinyuan. Based on many years of industry experience and customer feedback, and constantly improve the software's own control and human-computer interaction. Built-in closed-loop detection and common materials library can be used to compensate the length and angle according to elasticity and flexibility of different materials.

Features:

The processing length and slotting depth is precised controlled, the grinder disc abrasion is auto-detected and compensated by the software.

Solved the problem of low precision slot, low work efficiency, material waste, low safety for manual slotting, is the indispensable equipment for Channel Letter industry.

Adopted double feeding shelf design, cut down the producing time for mass production.

Specifications

Model

MBM-JY-A20N

Slotting Method

Angle Grinder Slot

Suitable Material

All kinds of metal plate material, Aluminum Profile, Acrylic

Width of Material

20-200mm (0.79-7.87in)

Thickness of Material

Metal 0.3~1.5mm; Acrylic 3mm

Beginning Distance of Bending

±0.1mm

File Format

.plt .dxf

Power

AC220V, 50Hz, 1.2KW
