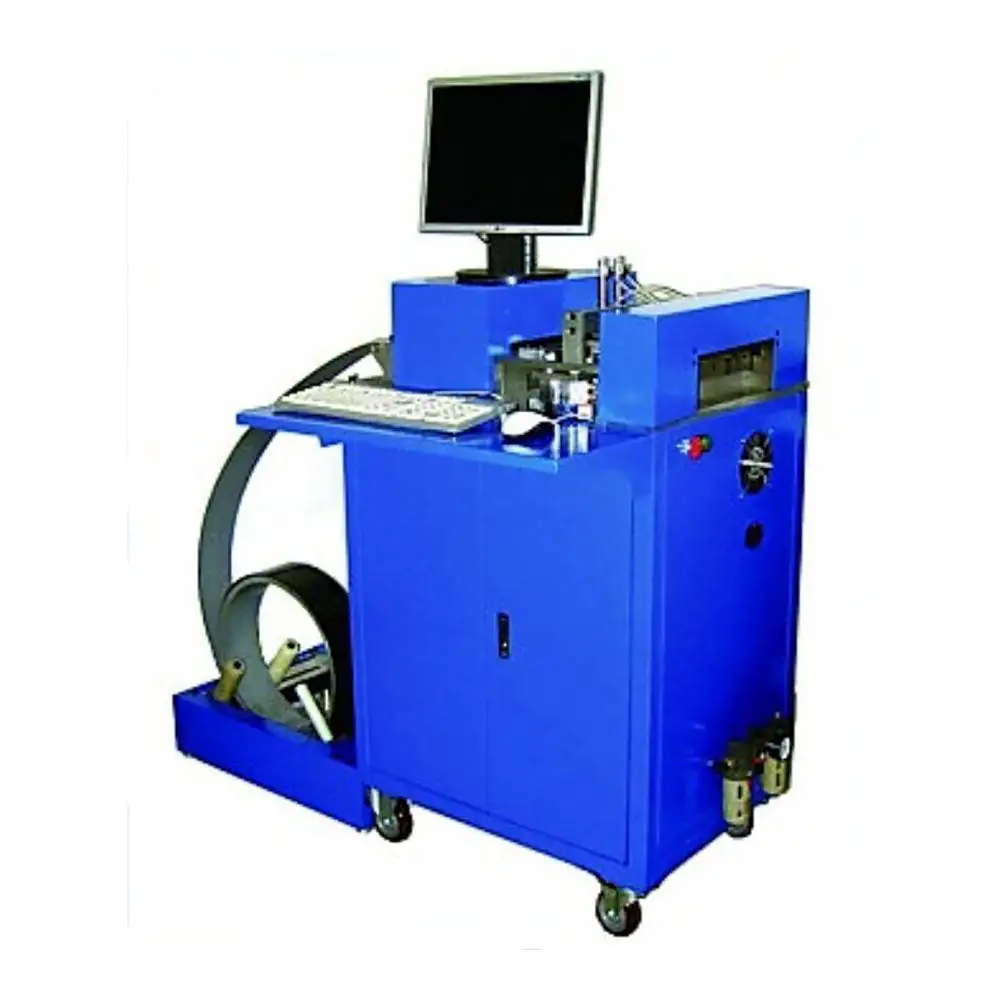

Ving CNC Notching Machine Notcher for Metal Channel Letter, Single Side Notch

Description:

1.This Metal Channel Bender Making CNC Notcher is Single Side Notch, its' Notch angle: 30° and 105°, Notch depth: 4mm-16mm.

2.This CNC Notcher is especially used for channel letter notching. Input the design or letter in DXF into the machine, CNC Notcher will fully automate notching accurately.

Material handling capabilities:

Width: 60-180mm (2.36-7.09in)

Aluminum Coil Thickness: 0.016-0.047"(0.4mm~1.2mm)

Specification:

Notch angle: 30°and 105°

Notch depth: 0.16-0.63"(4mm-16mm)

Notch sides: One side

Voltage: Single phase AC110V/220V

Frequency: 50/60HZ

Air pressure: 0.8Mpa

Air flux: 0.1 m3/min

Physical layout: 86.6*63*31.5"(L2200*W1600*H800*mm)

Net Weight: 440.9lb(200kg)

Packing Size: 40.5*32.7*58.3"(1030*830*1480mm)

Gross Weight: 633lb (287kg)

Characteristic:

1: Flexible to notch any letter height and any design on a standard. DXF file;

2: Auto notch in two different degrees;

3: Cut the letter to the size of your break automatically leaving no waste;

4: Stipple the location and direction of bend;

5: Can identify inside and outside of the figure;

6: Total job length, or single letter length can be calculated for a job estimating.

7: Can enter multiple break-points at your convenience for large letters;

8: Can change the position and direction of the fibulae at your convenience;

9: Whole job can be processed at one time, or one letter processed multiple time.
