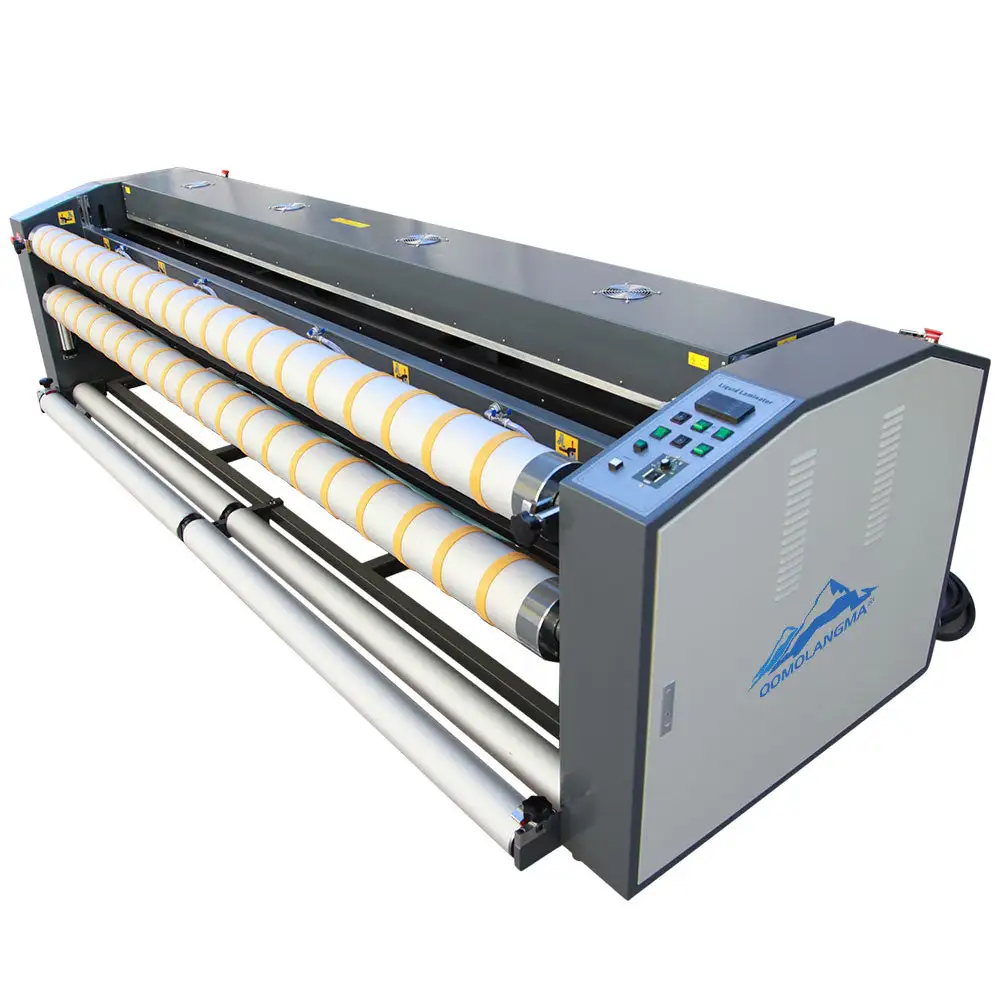

Qomolangma 130" Full-auto Large Format Liquid Laminator

Description:

Support Roll To Roll Operation.

FMJ-3300-WL liquid laminating width could reach 126.0" (3200mm), mainly used for roll to roll coating of vinyl, banner, canvas etc.

Especially fit for the wide-breadth advertisement picture.

Products Highlights:

• This liquid laminator has both drying system and cooling system, which make the coating film from `liquid` state to solid state. After laminating, the media can be crack resist, more flexible, UV protection, scratch resist etc.

• Easy operation panel:

Dryer, fan, motor, pump button

Various speed and temperature adjustment

Temperature indication

Emergency Stop Button

• In order to save energy, you may use right part of the heating box to reduce the power (50%) when the picture width is less than 63.0" (1600mm).

• Works simply and safely with low noise, the liquid laminator uses liquid water-soluble film, which is innocuous and flavorless, also be clean out without pollution. It is good for protecting environment very well.

• Liquid film is formed directly on the picture surface, and the film thickness is up to the size of Mayer bar. You can change the Mayer bar to increase film thickness according to requirement.

• Has both flash drying system and cooling system, which make the coating film from `liquid` state to solid state, especially for hard-to-dry inks.

• The liquid laminator is cost-effective and environmentally friendly. Coating costs range from $0.25 to $0.32 per sqm, depending on application and coating used.

• Easy to operate and clean, requires minimal operator training.

• Due to the price of liquid film is lower than cold laminating film, this make output rate is very high. Using liquid laminator can reduce the film laminating cost much more than ever before. You can get back your investment in a short time.

• The picture laminated will show more bright-color and beautiful, with the function of waterproof, sun proof, and anti-ultraviolet radiation, hence prolong its lifetime much more, of course the liquid film quality, which you select, is vital to the picture.

Specifications

Model

FMJ-3300-WL

Max. Coating Width

126.0" (3200mm)

Max. Laminating Thickness

0.007-0.01mm

Max. Laminating Speed

39.4"-59.1" (1-1.5m)/min

Laminating Temperature

100-130 degree

Max. Heating Temperature

150 degree

Forward / Reverse

Yes

Emergency Stops

Yes

After Laminating Pickup

Yes

Heating Power

6KW+6KW

Film Supply Mode

Magnetic suspension liquid pump, circulation supply

Heating Method

Infrard heating lamp

Motor Power

100W

Power Supply

AC 380V; 50Hz or 60Hz

Machine Weight

1543.2lb (700kg)

Machine Dimension

150"*43.3"*42.7" (3810*1100*1084mm)

Package

Fumigation free package

Packing Size

156.7"*52.4"*51.6" (3980*1330*1310mm)

Gross Weight

2116.4lb (960kg)
