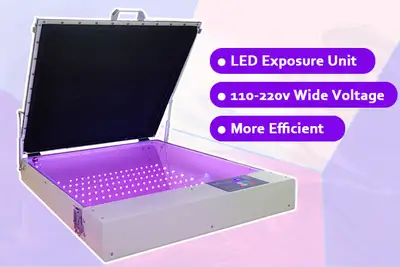

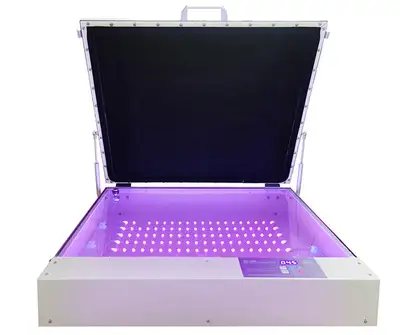

Qomolangma Tabletop Precise 20in x 24in 80W Vacuum LED UV Exposure Unit

Parameter:

1.Max.exposing area/Max screen size:20.8inx 24.8in(530 mm x 630 mm)

2.Voltage (single phase ): 220V or 110V

3.Vacuum Degree:80 kpa

4.Time control: 0-999s

5 Power of lamps: 80W (8 x 10w UV LED-line)

6.wavelength: 395NM

7.Angle of diffusion: 120

8.Distance between strips and glass:3.5"/90mm

9.Machine size:33in x 32.3in x 8.7in(840 mm x 820 mm x 220 mm)

Application:

The LED exposure unit is used in the filed of plate-making such as pad plate, screen plate,

hot stamper plate, resin plate. when you put the film onto the plate into vacuum UV LED exposure machine, start it, the emulsion on the plate will appear a unseen imagine. this is important process on all plate-making technology

Feature:

1.Adopting high efficiency UV LED light source,which save 50% electricity than ordinary model.

2.Vacuum model, use high quality rubber cloth,longer lifetime.

3.Built-in vacuum pump,very fast to vacuum.

4.PLC controlled panel, very easy to operate.

5.Automatic memory function for working as original seting next time

6.Perfect exposure effect because of LED light.

7. Fast exposure time,about 40-70 seconds.

8.Energy saving and environment friendly.

9.Stable exposure quality,more lifetime.

10.Durable and beautiful with steel coat.

11.Outside connecting power plug, safety and convenience.

12.Easy to transport,LED light is not fragile in delivery.
