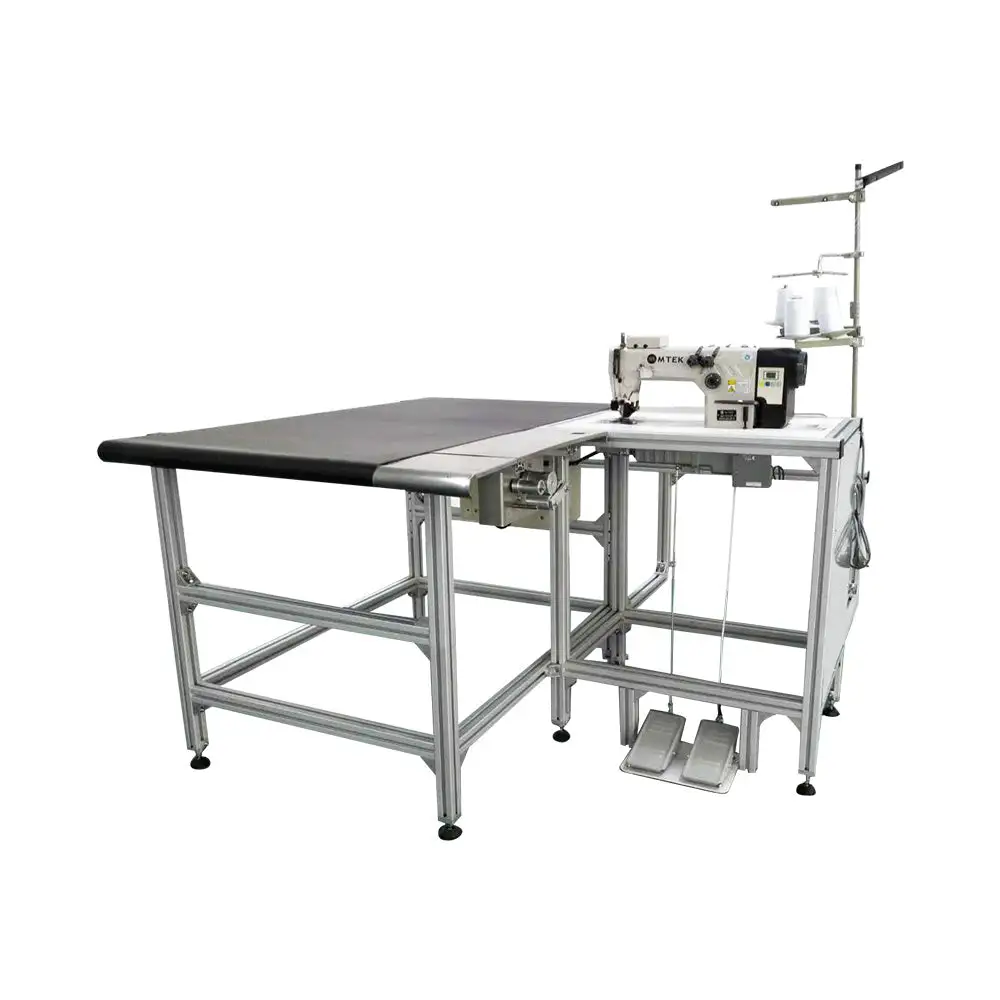

Multifunctional Silicon Edge Sewing Machine for Banners

Introduction:

Multi-function Silicon Edge Sewing Machine series is a special machine for finishing all banners and signs or sew digital textiles with silicon edge graphics, Velcro, and hem. It reduces production time and increase output.

Our machine is reasonable structure and user friendly. Operators achieve consistent and high-quality flat seams alignment without ruffling. Durable electrical and mechanical designs are safe and reliable. Let us bring your textile finishing to next level.

Functions:

• Version with conveyor

• Working table, conveyor and silicon tape feeding rack all-in-one

• 50x50mm aluminum durable frame

• Suitable for large format and heavy textiles

• Adjustable sewing speed for various needs

• Adjustable silicon tape channel to fit for 10mm to 15mm

• Conveyor synced with sewing machine for accurate and precise flow

• Metal roller and plastic roller as options

Advantages

1. Simple Operation

• Plug and play, labor cost saving.

• No special training is required for the operators.

2. Automatic Feeding

• Fixed channel for silicon tape to make sure straight alignment.

• Feed silicon tape and fabrics at the same time.

3. Automatic Output

• Finishing comes out automatically, no manual assist is required.

4. Steps on the Same Line

• Feeding, knitting and output are proceed on the same line that makes finishing straight and flat.

5. Double Stitches

• Strong, durable and nice appearance.

• No overlock required.

6. No Conventional Bobbin

• Thread roll only, no conventional bobbin required.

• Efficient workflow by continue knitting without replacing bobbin time by time.

7. Special Motor

• Servo motor provides max. up to 4000rpm, rather than stepper motor limited to 1500rpm.

• Speedy knitting with stable performance.

8. Special Structure

• Silicon oil acts as lubricant that prevent thread from broken.

• Small plastic box placed in front of machine head where access and refill oil easily.

• Special mechanical structure minimizes thread and needle broken during long lasting operation.

9. LED provides even and clean light source.

10. Multi-function suitable for various applications for silicon tape, Velcro, hem and pockets.

Specifications

Standard Conveyor

1500mm x 800mm (Customizable)

Seam Stitches

Single or Double Chainstitch

Speed

up to 20m/min.

Voltage

110V /220V

Machine Dimension

1490mm x 1020mm x 960mm (conveyor)

610mm x 550mm x 960mm (sewing head)

Packing Dimension

1600mm x 1170mm x 1150mm (conveyor)

960mm x 910mm x 1380mm (sewing head)

N.W. / G.W.

285kgs / 320kgs
