HIX SubliPro Counter Top Sublimation Mug Oven

Description

The HIX SubliPro CounterTop oven provides business owners an easy alternative to introduction mass production to your workflow when creating dye-subimation drinkware, such as standard 11/15oz mugs, shot glasses, travel mugs, and pint glasses. It features a porcelain enamel on steel oven interior, measuring 15 1/4"" (w) x 21"" (d) x 20"" (h) for producing as many as 12-15 mugs per cycle or more than 48 per hour. Furnished with nine position nickel plated rack guides and four nickel platted racks, the Hix SubliPro CounterTop Oven can accomodate a variety of substrates of varying heights and diameters.

The oven chamber is heated by enclosed tubular heating elements rated at 7.5KW with air circulated by a two-speed 1/3 HP permanently-lubricated oven blower motor. The oven is enclosed with stainless steel, and has insulation applied to the top, rear, both sides, and bottom - as well as an insulated stainless steel door with double pane window.

The SubliPro CounterTop comes with a solid state temperature control, adjustable from 200° to 500°F and a 60 minute electrical timer with continuous buzzer. Press requires 208, 60Hz, 1 or 3 phase electrical supply.

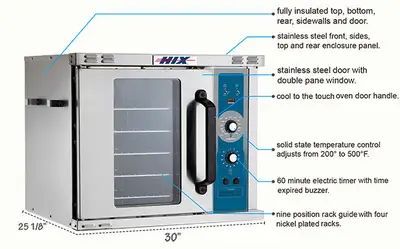

Features:

Nine position rack guide and four nickel-plated loading racks

Stainless steel rear enclosure panel, front, sides, top, and door with double-pane window

Cool to the touch oven door handle

Stainless steel oven door gaskets

Oven interior liners are porcelain on steelOven cool switch for rapid cooldown when door is open

Solid state temperature control adjusts from 200° to 500°F

7.5 kW input

60 minute electric timer with time expired buzzer

1/3 HP two-speed fan motor

UL Certified

1 year limited warranty

Specifications:

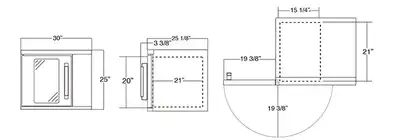

Oven chamber: 15 1/4"" (w) x 21"" (d) x 20"" (h)

Total watts: 8.0KW (including blower motor)

Volt/Amp/Phase: 208V / 38A / 1 phase

208V / 23A / 3 phase

Temperature range: 200° to 500° F

Fan power: 1/3 HP

Oven dimensions: 30"" (w) x 28 1/2"" (d) x 29"" (h)

Oven weight: 218 lbs

Shipping dimensions: 33"" (w) x 33"" (d) x 36"" (h)

Shipping weight: 271 lbs

Licensed Electrician required for the installation of the SubliPro Mug Oven Ovens are manufactured voltage-specific (voltage cannot be changed once manufactured). Prior to shipping, they are wired for either single or 3-phase

10087 208v 1 Phase

10387 208v 3 Phase

All Countertop Sublimation Ovens come with an adequate power cord, plug and matching receptacle
