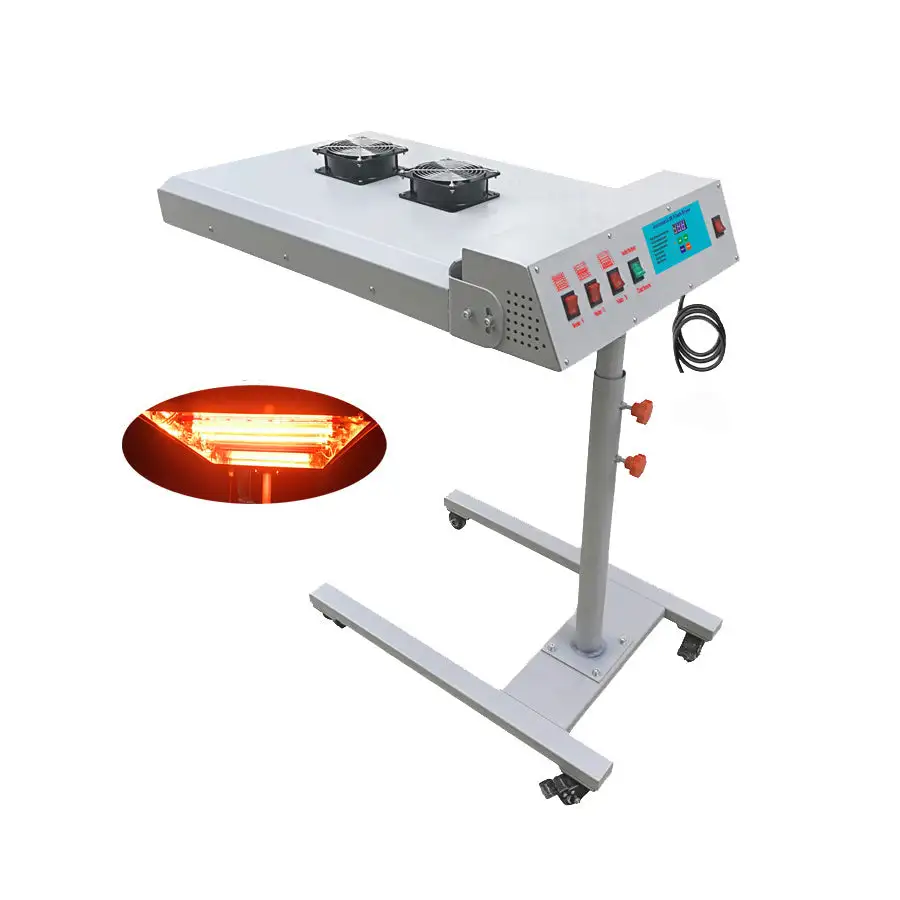

Qomolangma 220V 6000W 20in x24in Automatic IR Flash Dryer with Sensor

Application:

The flash dryer is a important equipment in printing process, especially in multi-color printing. you can dry the ink quickly to print next color by flash dryer. it's specially combined with t shirt carousel screen printing machine.

Technical Parameter:

1 Heating area: 20in x 24in / 500mm x 600mm.

2.Max temperature: 482°F / 250°C

3.IR lamps number: 6 lamps

4.Power: 220V 50 Hz, 6000W, 27A

Note:

1.The machine is delivered without a power plug, connection to the electrical power source shall be done by a licensed electrician. The electrician can either install a suitable amperage, phase and voltage rated plug for whatever country the unit is being installed.

2.The dryer can work with only six tubes, and the extra tubes are designed to prevent damage during transportation.We can't reissue, if there are six tubes can be used.Thank you for your understandin

Features:

1.It's automatic flash dryer with a sensor

2.PLC control system,very easy to operate.

3.IR lamps to heat very quickly,longer lifetime.

4.There are 2 working mode for choices

5.There are 3 working level for 6 lamps, adjust 2,4,6 lamps to work.

6.Adopt new ways to connect IR lamps, easy to interchange and transport.

7.Double fans to blow hot air for drying fastly.

8.Drying height adjustable,300mm adjust range up and down.

9.Easy to move with 4 freely wheels.

10.360 degree swivel head.

Package:

Packing size: 36.6in x 26in x 9.3in /930mm x 660mm x 235mm

Gross weight: 77lbs / 35kg
