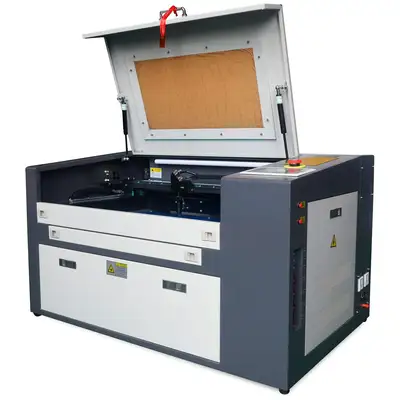

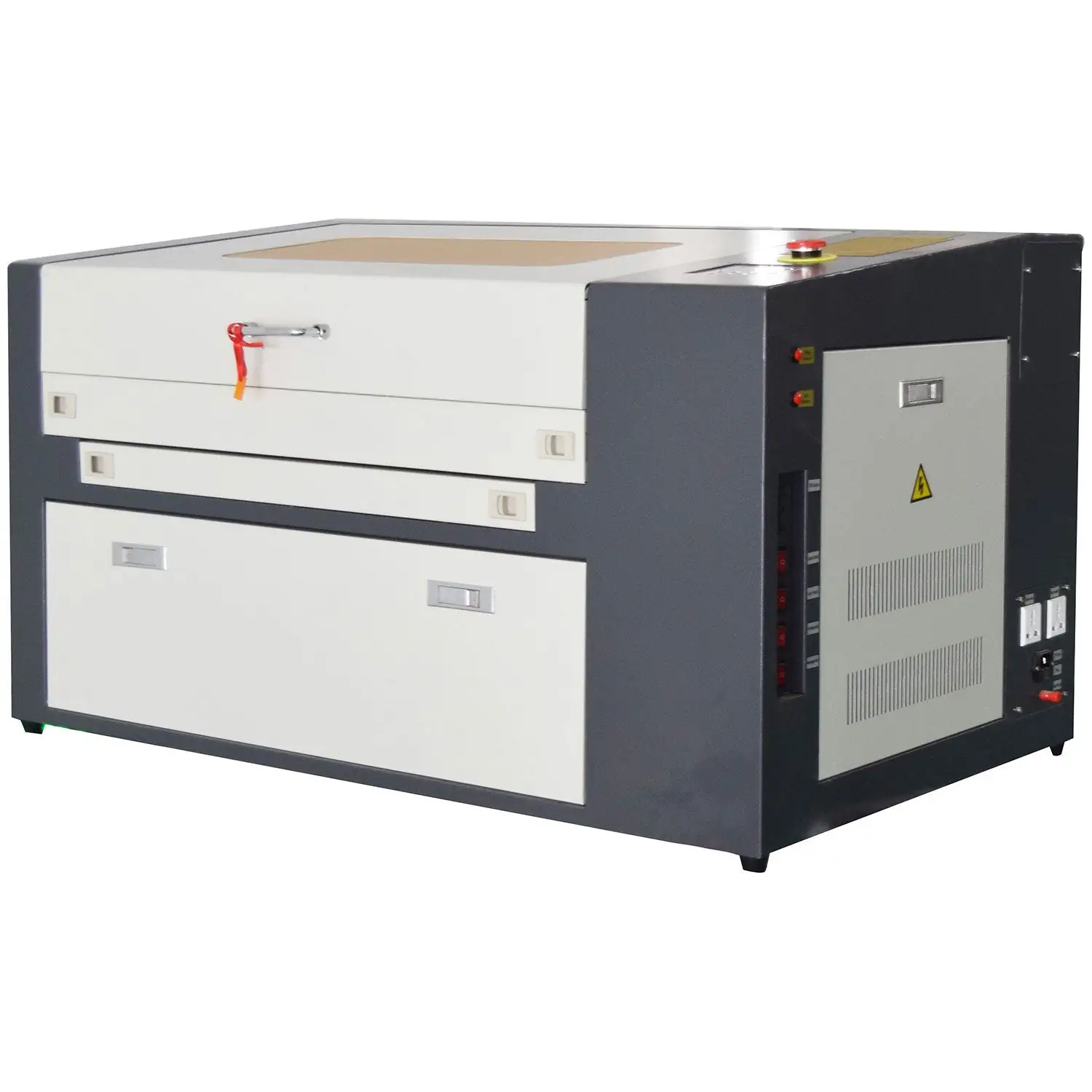

50W CO2 Laser Engraving Machine 12" x 20" Work Table with Y-axis Rotary Roller
Overview
50W CO2 Laser Engraving Machine 12" x 20" Work Table with Y-axis Rotary Roller
This 50W CO2 Laser Engraver integrates a lot of upgraded and advanced technologies, all of which guarantee the good quality of high precise and speed. It is a suitable machine to process various nonmetal materials including: acrylic, MDF, plywood, paper, plastic, fabric, leather, rubber, ceramic, tile, glass, marble etc.
Features:
1. Quality CNC machined parts for durability Guaranteed
2. Upgraded control board for more accurate currency adjustments
3. Powerful exhaust fan for fumes and smoke extraction
4. USB port to connect the engraver
5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)
6. Y-axis Rotary Roller can do the popular stainless steel travel cup Engraving.
Product details:
The 12" x 20" (300x500 mm) workbed gives you plenty of space to work on wood, rubber, plastic, paper, fabric, leather, ceramics, tile, fiberglass, marble, stone, and more- -even before you open the integrated pass-through doors that permit you to work on even larger pieces!
Specification
Laser power
50W
Laser Type
CO2 Sealed Glass 10.64 um
Voltage
AC110V ± 10%, 60HZ
Support Software
LightBURN, CorelDraw, AutoCAD, Photoshop, etc.
Control System
RDC6442G controller
Working Area
12" × 20" (300 mm × 500 mm)
Working table
Fixture Aluminum Platform
Max. Engraving Speed
11-3/4"/s (300 mm/s)
Max. Cutting Speed
3/8”/s (10 mm/s)
Engraving Thickness
0 - 3/8" (0 - 10 mm) depends on material
Locating Precision
± 0.01 mm
Resolution Ratio
≤ 2500 dpi
Min. Character Size
1 mm × 1 mm
Min. Character Letter
2 mm × 2 mm
Operating Temperature
41 ℉ - 122 ℉ (5 ℃- 50 ℃)
Data Transfer Interface
USB 2.0
System Environment
Windows XP/2000/7/8/10
Graphic Format Supported
Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.)
Cooling Type
Water Cooling
