Backpack Type 50W Metal and Non-metal Surface Laser Cleaner Oil Cleaner Dust Cleaning Machine

Backpack Type 50W Metal and Non-metal Surface Fiber Laser Cleaner Oil Cleaning Duster Machine

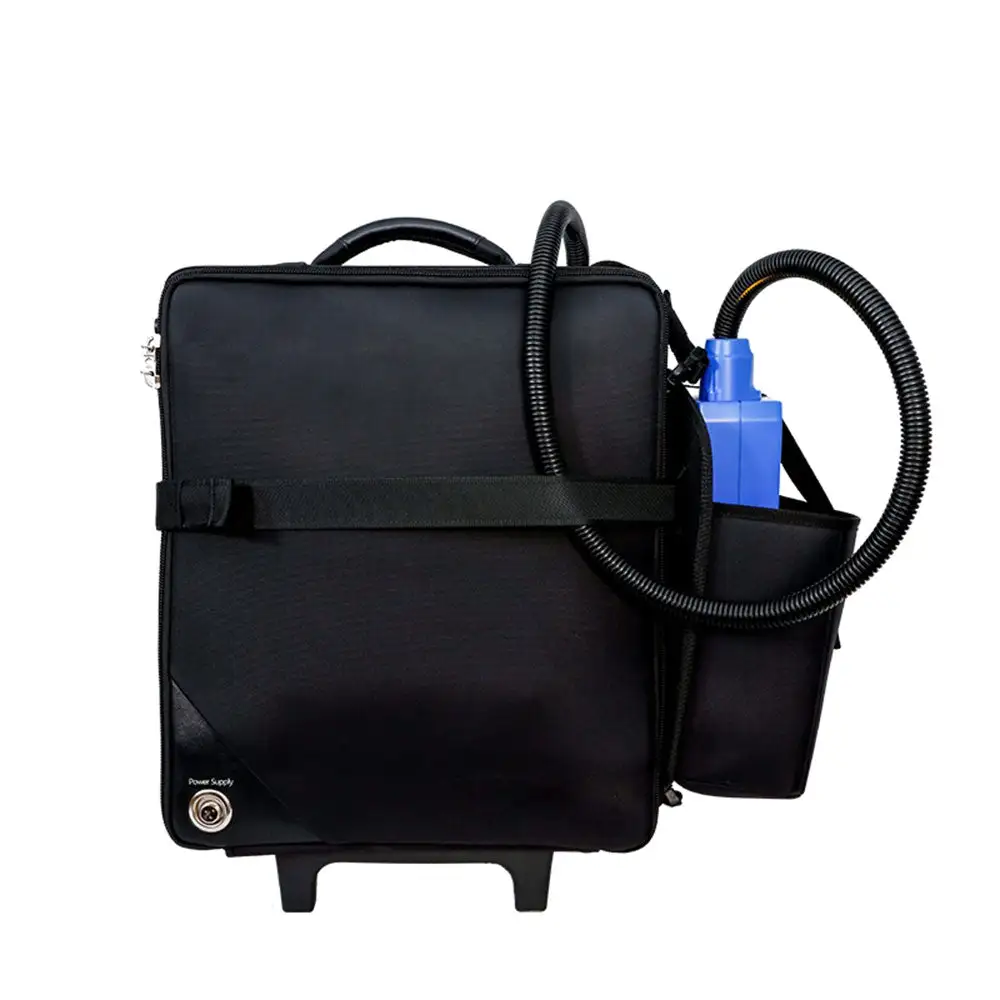

The Backpack Laser Cleaning Machine is a high technology product for non- contact laser cleaning. It can remove the grease, dirt, coating, paint, rust, residue, oxide layer, and other target materials with high efficiency, high performance, low cost and without harm to the base material. It can meet the cleaning requirements of complex modeling and fine positioning in the industrial processing field, achieving a cleaner cleaning effect and a lower overall production cost.

It is widely used in industrial area, such as automotive, mechanical, food processing, electronics, historic conservation, shipbuilding and power generation, etc.

Product advantages:

1. Portable design: compact structure, wearable.

2. High efficiency cleaning: high efficiency of laser cleaning, saving time;

3. Non-contact: laser cleaning without grinding and non-contact;

4. Pollution-free: do not need to use any chemical agents and cleaning fluid, easily solve the environmental pollution problems caused by chemical cleaning;

5. Strong expansibility: replaceable field mirror, changing the depth of zoom, wider width of laser cleaning.

Laser characteristics:

Specify accordingly: Wavelength 1064 nm

Spectral width: 5nm (+/- 3 nm)

Average Output power: 50W

Output power stability: 5%

M^2: 1.3 (+/-0.3)

Beam ellipticity: 90%

Pulse duration: 90 – 110 ns

Variable laser pulse repetition rate: 50~80kHz

Operation start time: <1min

Stable Warm up time: <10min

Laser gun specifications:

Min/Max output beam (non-moving output mirror) aperture: 5mm~10mm

Variable Min/Max Lining scanning area: Maximum 60 mm

Laser gun dimensions and weight: 162mm x 95mm x 353mm, 3KG

Variable power range: 10-100 %

Frame: solid aluminum

Power supply: 220 V

Specification

Average Output power

50W

Specify accordingly

Wavelength 1064 nm

Delivery Fiber length (machine to lase gun)

1.2m (standard)

Cooling

Compatible Air-cooling system included

Focal length

around 100mm (lens: F=100mm)

Lining scanning speed (Galvanometer)

8000mm/s

Work environment Humidity

10% - 90%

Operating temperature range

0 to +40 °C

Storage temperature range

-10 to +60 °C

Power supply

220 V / AC 50-60 Hz

Current consumption

4-6 A

Working hours

possibility to work 24/7 for >90 000 hours (laser source)

Applications:

Rust Erasing

Sample: angle iron

Base material: Q235

Erasing Efficiency: 1400mm2/s

Erasing Effects: surface undamaged and no rust left behind

Sample: propeller gear shaft

Base material: 40Cr

Erasing Efficiency: 1400mm2/s

Erasing Effects: surface undamaged and no rust left behind

Sample: carbon steel tube

Base material: carbon steel

Erasing Efficiency: 2000mm2/s

Erasing Effects: surface undamaged and no rust left behind

Sample: chuck

Base material: alloy steel

Erasing Efficiency: 1700mm2/s

Erasing Effects: surface undamaged and no rust left behind

Pre and Post Treatment of Welding

Sample: water pipe joint

Base material: alloy cast iron

Erasing Efficiency: 1800mm2/s

Erasing Effects: surface polished and no stained layer left behind

Oxide Erasing

Sample: vane of air blower

Materials: 2Cr13

Erasing Efficiency: 500mm2/s

Erasing Effects: surface polished without any oxide residue

Sample: Aluminum alloy plate

Materials: 6033

Erasing Efficiency: 1500mm2/s

Erasing Effects: surface polished without any oxide residue

Paint Cleaning

Sample: gif box


Base material: cold-roll steel sheets

Erasing Efficiency: 1800mm2/s

Erasing Effects: paint coat remove completely, no damage to the base material
