Aluminum Profile Metal Channel Letter Rounded Corner Bender Bending Tools

Bender Diameter: 20mm (0.79"), 30mm (1.18") & 43mm (1.69")

Processing Material: Aluminum

It can bend aluminium 0.8mm

Details:

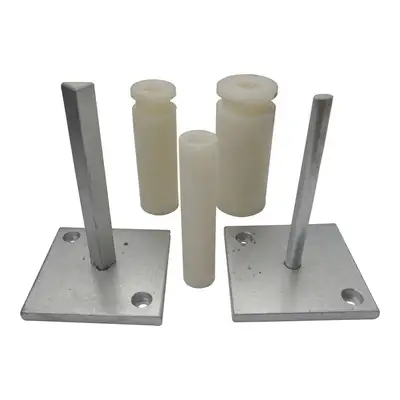

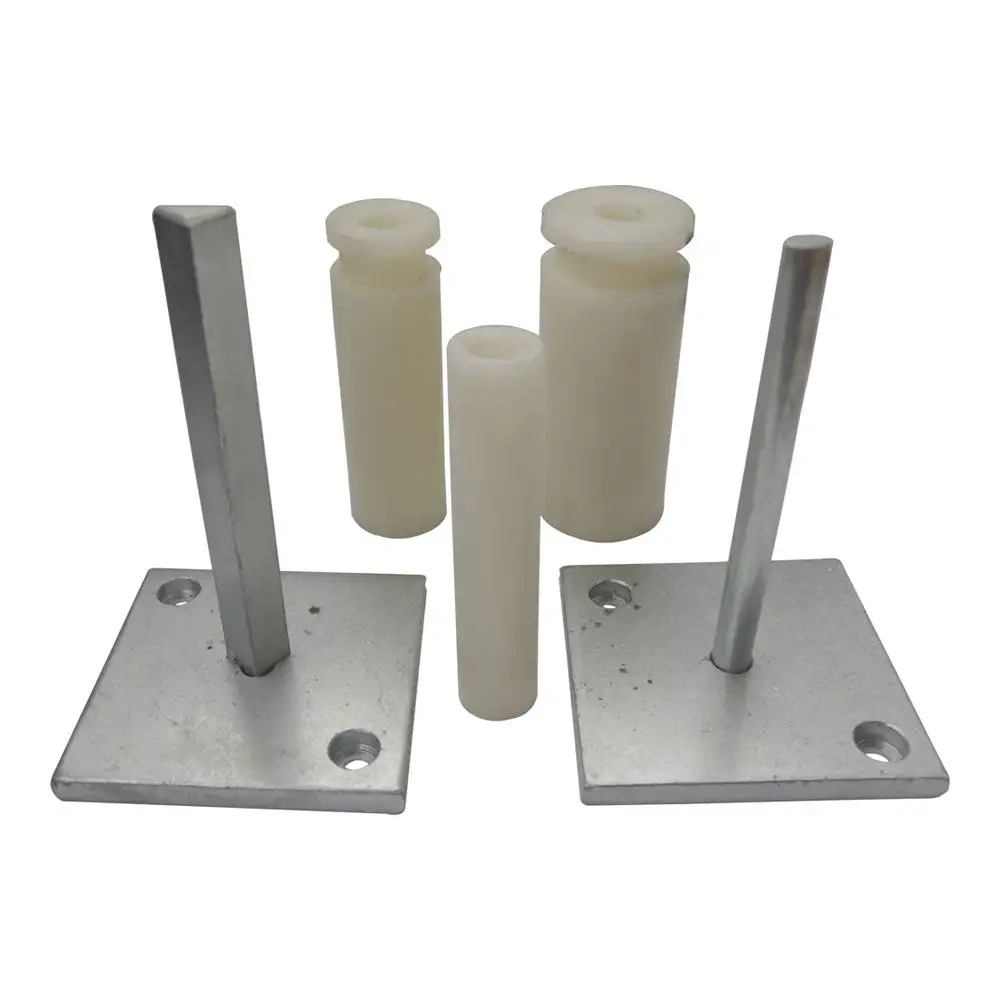

• A set containing a tripod, a rounded frame, three different specifications of the drum;

• Height is twelve centimeters, suitable for normal trim needs;

• Tripod has forty-five degrees and a ninety degrees;

• Tripod and circular shelves have set aside mounting holes, when using, please fixed.

Usage:

1. Engraving acrylic panel;

2. Slotted aluminum (or other metal trim materials), after bending, toward the edge of the acrylic panel began around the word;

3. Encountered arc, according to the panel, put the sidebar on the top of the roller (Depending on the size of the arc to select a different drum), grasp both sides of the sidebar, pulling the roll or directly pressure to fit the curvature;

4. Scroll to roughly arc, alignment panel, continue around the edges, you can take a small rubber hammer finishing;

5. For triangular prism, slotted and then use, or small-angle extrusion,
